Catalog excerpts

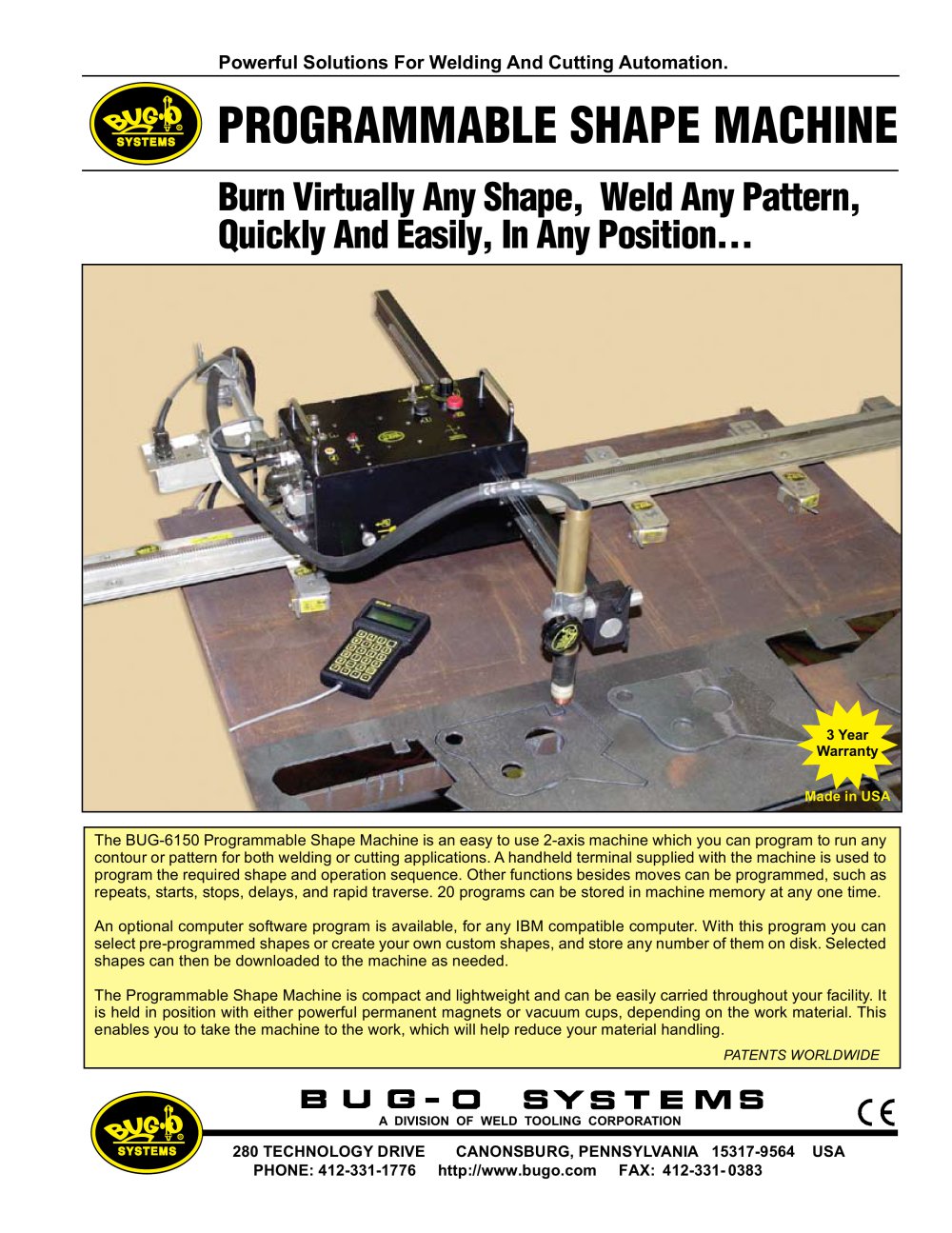

Powerful Solutions For Welding And Cutting Automation. PROGRAMMABLE SHAPE OXY-FUEL CUTTING KIT 120VAC/50-60/1 Programmable Shape Machine and Handheld Terminal 2.5-50 ipm (63-1250 mm/min) Q.A. Manifold w/Solenoid 120 VAC Cutting Group PROGRAMMABLE SHAPE CUTTING KIT 42VAC/50-60/1 Burn Virtually Any Shape, Weld Any Pattern, Quickly And Easily, In Any Position… PROGRAMMABLE SHAPE CUTTING KIT 240VAC/50-60/1 PROGRAMMABLE SHAPE MACHINE PROGRAMMABLE SHAPE WELDING KIT 120VAC/50-60/1 Programmable Shape Machine and Handheld Terminal 2.5-50 ipm (63-1250 mm/min) Relay Box w/Cable Anchor [To Control Arc On/Off] Welding Group PROGRAMMABLE SHAPE WELDING KIT 240VAC/50-60/1 PROGRAMMABLE SHAPE WELDING KIT 42VAC/50-60/1 PROGRAMMABLE SHAPE Plasma Cutting Kit 120VAC/50-60/1 Includes: 1 BUG-6150-E Programmable Shape Machine and Handheld Terminal. 4-80 ipm (100-2000 mm/min) 1 BUG-6080 Relay Box w/Cable Anchor (To control arc on/off) 1 BUG-6155 Cutting Group BUG-6212 PROGRAMMABLE SHAPE MACHINE 240VAC/50-60/1 PROGRAMMABLE SHAPE MACHINE 42VAC/50-60/1 *Rail is not included with kits. 3 Year Warranty Made in USA The BUG-6150 Programmable Shape Machine is an easy to use 2-axis machine which you can program to run any contour or pattern for both welding or cutting applications. A handheld terminal supplied with the machine is used to program the required shape and operation sequence. Other functions besides moves can be programmed, such as repeats, starts, stops, delays, and rapid traverse. 20 programs can be stored in machine memory at any one time. An optional computer software program is available, for any IBM compatible computer. With this program you can select pre-programmed shapes or create your own custom shapes, and store any number of them on disk. Selected shapes can then be downloaded to the machine as needed. The Programmable Shape Machine is compact and lightweight and can be easily carried throughout your facility. It is held in position with either powerful permanent magnets or vacuum cups, depending on the work material. This enables you to take the machine to the work, which will help reduce your material handling. BUG-6080 Relay Box w/Cable Anchor PATENTS WORLDWIDE BUG-6090 Cutting Solenoid Accessory 120VAC A DIVISION OF WELD TOOLING CORPORATION A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA USA 15317-9564 A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho. in U.S.A. LIT-PSM-BRO-0310 280 TECHNOLOGY DRIVE CANONSBURG, PENNSYLVANIA 15317-9564 PHONE: 412-331-1776 http://www.bugo.com FAX: 412-331- 0383
Open the catalog to page 1
PROGRAMMABLE SHAPE MACHINE The Programmable Shape Machine is a two-axis machine that runs on a track and carries a torch on a motorized cross-arm. It can be used for flame or plasma cutting, or welding, of a variety of shapes which are programmed and stored in memory. The machine has storage capacity in memory for 20 different programmed shapes. At any time, one of these shape numbers is selected to be active, and will stay selected even when the power is shut off, and turned back on, until the shape number is changed by the machine operator. All programming is done with the handheld...
Open the catalog to page 2
PROGRAMMABLE SHAPE MACHINE The Programmable Shape Machine is a two-axis machine that runs on a track and carries a torch on a motorized cross-arm. It can be used for flame or plasma cutting, or welding, of a variety of shapes which are programmed and stored in memory. The machine has storage capacity in memory for 10 different programmed shapes. At any time, one of these shape numbers is selected to be active, and will stay selected even when the power is shut off, and turned back on, until the shape number is changed by the machine operator. All programming is done with the handheld...
Open the catalog to page 3
Powerful Solutions For Welding And Cutting Automation. PROGRAMMABLE SHAPE OXY-FUEL CUTTING KIT 120VAC/50-60/1 Programmable Shape Machine and Handheld Terminal 2.5-50 ipm (63-1250 mm/min) Q.A. Manifold w/Solenoid 120 VAC Cutting Group PROGRAMMABLE SHAPE CUTTING KIT 42VAC/50-60/1 Burn Virtually Any Shape, Weld Any Pattern, Quickly And Easily, In Any Position… PROGRAMMABLE SHAPE CUTTING KIT 240VAC/50-60/1 PROGRAMMABLE SHAPE MACHINE PROGRAMMABLE SHAPE WELDING KIT 120VAC/50-60/1 Programmable Shape Machine and Handheld Terminal 2.5-50 ipm (63-1250 mm/min) Relay Box w/Cable Anchor [To Control Arc...
