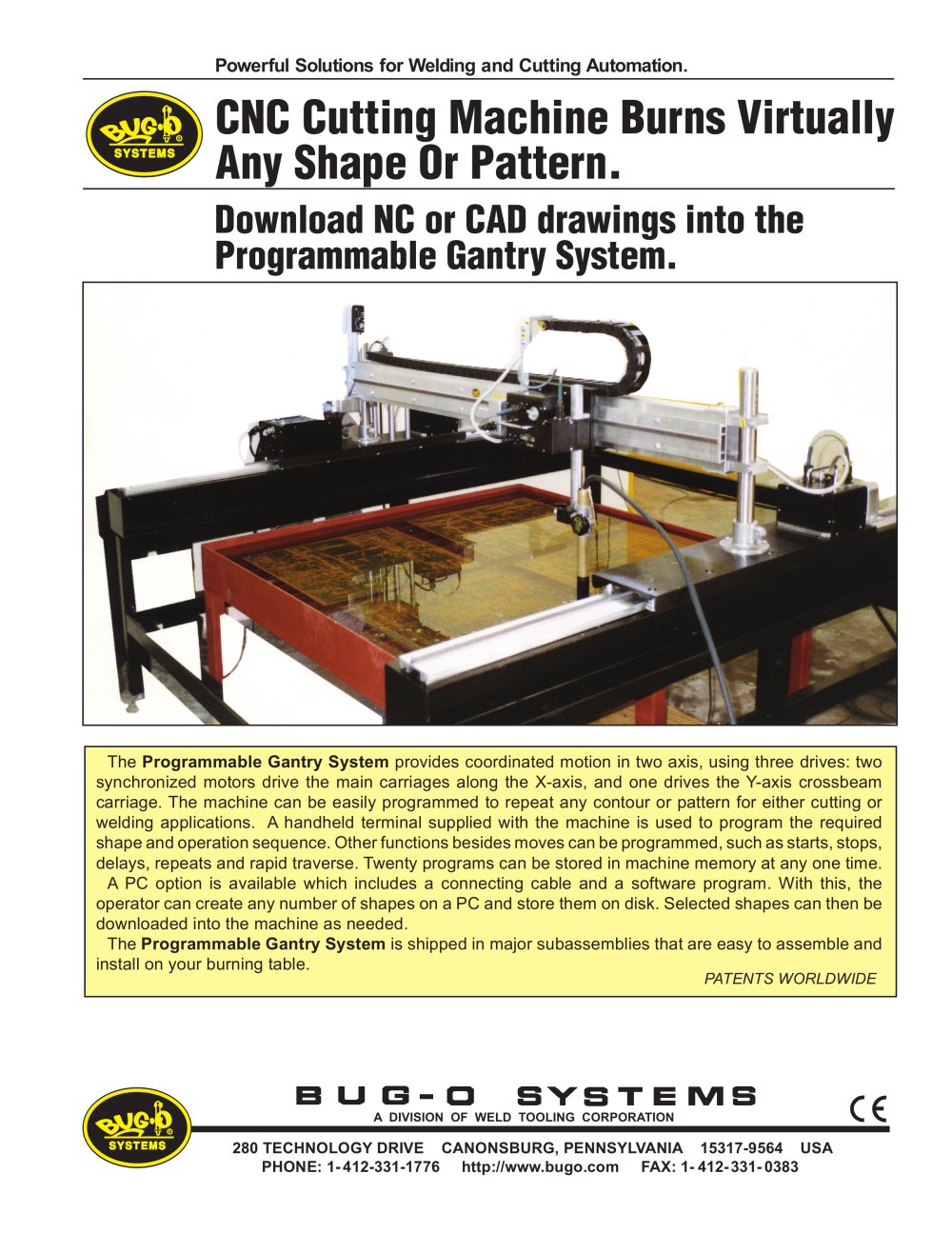

Powerful Solutions for Welding and Cutting Automation. Programmable Gantry System Features: ENCODER ENCODER CNC Cutting Machine Burns Virtually Any Shape Or Pattern. Download NC or CAD drawings into the Programmable Gantry System. WEST DRIVE EAST DRIVE HANDHELD PENDANT HEAVY DUTY ALUMINUM RIGID RAIL CABLE CARRIER CABLE CARRIER SUPPORT FACE RAIL CARRIAGE 12" (305 mm) CROSS DRIVE HEAVY DUTY RACKING GROUP The Programmable Gantry System provides coordinated motion in two axis, using three drives: two synchronized motors drive the main carriages along the X-axis, and one drives the Y-axis crossbeam carriage. The machine can be easily programmed to repeat any contour or pattern for either cutting or welding applications. A handheld terminal supplied with the machine is used to program the required shape and operation sequence. Other functions besides moves can be programmed, such as starts, stops, delays, repeats and rapid traverse. Twenty programs can be stored in machine memory at any one time. A PC option is available which includes a connecting cable and a software program. With this, the operator can create any number of shapes on a PC and store them on disk. Selected shapes can then be downloaded into the machine as needed. The Programmable Gantry System is shipped in major subassemblies that are easy to assemble and install on your burning table. PATENTS WORLDWIDE A DIVISION OF WELD TOOLING CORPORATION A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA © ROM 1:16 Litho in U.S.A. LIT- PGS-BRO-0511 Weld Tooling Corp. A DIVISION OF WELD TOOLING CORPORATION 280 TECHNOLOGY DRIVE CANONSBURG, PENNSYLVANIA 15317-9564 USA PHONE: 1- 412-331-1776 http://www.bugo.com FAX: 1- 412- 331- 0383

Programmable Gantry System The CNC Gantry System is a two-axis gantry that has dual side synchronized drives running on parallel tracks, and a second axis drive carrying a cutting torch that runs on a crossbeam. It can be used for flame or plasma cutting, or for welding, of a variety of shapes which are programmed and stored in memory. The machine memory stores twenty different programmed shapes, numbered 0 to 20. At any time, one of these shapes is current, and will stay current even when the power is shut off and turned back on, until the shape number is changed by the operator. All programming...

Programmable Gantry System The CNC Gantry System is a two-axis gantry that has dual side synchronized drives running on parallel tracks, and a second axis drive carrying a cutting torch that runs on a crossbeam. It can be used for flame or plasma cutting, or for welding, of a variety of shapes which are programmed and stored in memory. The machine memory stores twenty different programmed shapes, numbered 0 to 20. At any time, one of these shapes is current, and will stay current even when the power is shut off and turned back on, until the shape number is changed by the operator. All programming...

Powerful Solutions for Welding and Cutting Automation. Programmable Gantry System Features: ENCODER ENCODER CNC Cutting Machine Burns Virtually Any Shape Or Pattern. Download NC or CAD drawings into the Programmable Gantry System. WEST DRIVE EAST DRIVE HANDHELD PENDANT HEAVY DUTY ALUMINUM RIGID RAIL CABLE CARRIER CABLE CARRIER SUPPORT FACE RAIL CARRIAGE 12" (305 mm) CROSS DRIVE HEAVY DUTY RACKING GROUP The Programmable Gantry System provides coordinated motion in two axis, using three drives: two synchronized motors drive the main carriages along the X-axis, and one drives the Y-axis crossbeam...
