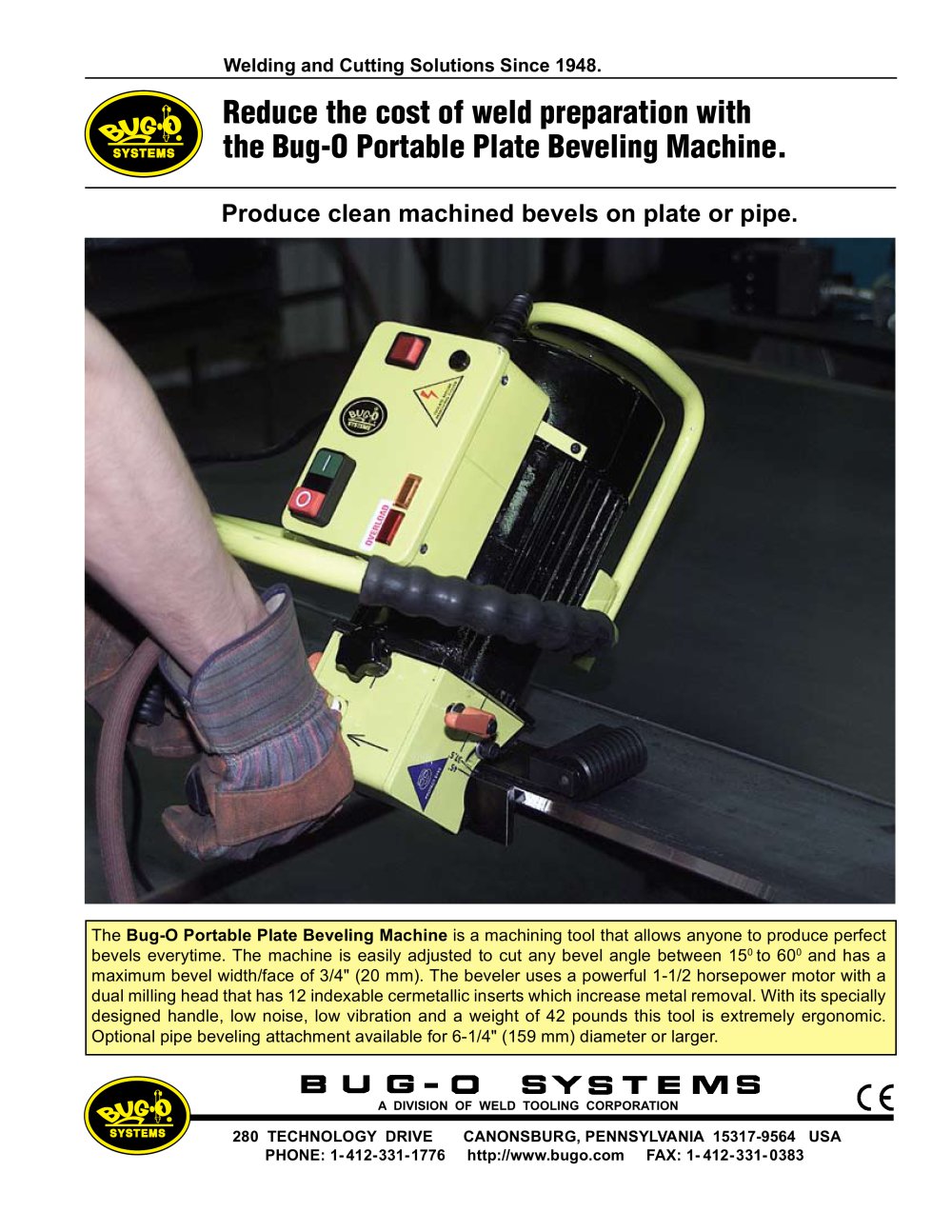

Welding and Cutting Solutions Since 1948. Reduce the cost of weld preparation with the Bug-O Portable Plate Beveling Machine. Produce clean machined bevels on plate or pipe. The Bug-O Portable Plate Beveling Machine is a machining tool that allows anyone to produce perfect bevels everytime. The machine is easily adjusted to cut any bevel angle between 150 to 600 and has a maximum bevel width/face of 3/4" (20 mm). The beveler uses a powerful 1-1/2 horsepower motor with a dual milling head that has 12 indexable cermetallic inserts which increase metal removal. With its specially designed handle, low noise, low vibration and a weight of 42 pounds this tool is extremely ergonomic. Optional pipe beveling attachment available for 6-1/4" (159 mm) diameter or larger. A DIVISION OF WELD TOOLING CORPORATION 280 TECHNOLOGY DRIVE PHONE: 1- 412-331-1776 CANONSBURG, PENNSYLVANIA 15317-9564 USA http://www.bugo.com FAX: 1- 412- 331- 0383
Open the catalog to page 1PORTABLE PLATE BEVELING MACHINE Features & Benefits • Chamfering capacity up to 3/4" (20 mm). • Adjustable bevels from 150 to 600. • Uses 4 sided indexable cermetallic cutting blade for optimal economy. • Each cutting insert averages 400' to 600' (122-183 m) per side. Specifications PBM-2000: PBM-2002: Nominal Amperage: Maximum Amperage: Start Up Current: Horsepower: Cutting Speed: Angle Range: Bevel Width: Weight: • Dual milling head for increased efficiency. • No damage from heat hardening or oxidation as with oxy-fuel. • Automatic overload protection. • Easy to set-up and use. • Optional...
