MM-1 Programmable Pipe Cutter
1 / 6Pages

MM-1 Programmable Pipe Cutter - Programming Capabilities TYPE 1 SADDLE NOZZLE CUTS TYPE 2 OFFSET SADDLE NOZZLE CUTS (Hillside) LATERAL NOZZLE CUTS Computer Software The MM-1 Programmable Pipe Cutter can be programmed from a PC, using either of two software packages described below. Shapes can be created off-line, and downloaded to the machine when required. A cable is supplied to connect to the serial or USB port of the PC. 1. PC Option / BUG-6140. This runs under Windows, and allows you to: • Create shapes on the PC. • Save any number of shapes to disk, and retrieve them as necessary. • View a programmed shape on screen which helps program verification. • Download programmed shapes from the PC to the machine. TYPE 5 HOLE CUTTING AT VARIOUS ANGLES 2. BUG-6240 CAD Interface. This is a complete package that includes both the PC option and DeskCNC. This will allow you to take two dimensional CAD drawings and convert them to Shape files that you can directly load into your shape machine. • DeskCNC is used to modify two dimensional CAD drawings (.DXF files) and create a toolpath • The toolpath is saved as a CNC file using DeskCNC • The CNC file can be loaded in the PC option for easy integration with the MM-1 SHAPE PROGRAM CUSTOM IRREGULAR SHAPES MM-1 Programmable Pipe Cutter - Accessories CWO-7598 Powermax 85 Includes the following: • Interface cable to the MM-1 Pipe Cutter • 50' (15.24 m) Machine Barrel Torch Power Requirements: Auto voltage runs on 200-600 Volts, 1 or 3-phase, without the need of rewiring. ECONOMICAL, AUTOMATED PIPE CUTTER SAVES LAYOUT AND FIT-UP TIME. Adjustable Output Current: 25-85 Amps Cutting Capacity: (Recommended) 3/4" (19 mm) BUG-1274 3-Hose Machine Torch 10" (254 mm) Cutting Torch is the same for AcetylenePropane-Natural Gas. Only the tip changes. Oxy-Acetylene Tips Programming Arbitrary Shapes TIME DELAY PERCENT SPEED WAIT FOR AUXILIARY START MODES BUTTON WELD/OXY PIPE CUT NUMBER OFF REPEAT WELD/OXY ANOTHER ON STEP For custom shapes, select the “shape” software. Programming is simple, but will require a few more steps due to all the variations possible. First, the developed pattern should be laid out as if the pipe is unrolled flat. The cut is then split into a sequence of straight lines or circular arcs that make up the desired pattern. Next, these should be listed in a table on paper, with the type, quadrant and required dimensions (referring to the chart in the Instruction Manual). To program the shape, press “A”, then enter the total segments at the prompt. Next, enter the data for each segment type, quadrant and dimensions in turn, at the prompt. When all segments are entered the program is ready to run. Bug-O Systems Automated Cutting and Welding Systems 412-331-1776 www.bugo.com A QUALITY PRODUCT FROM BUG-O SYSTEMS • 280 TECHNOLOGY DRIVE • CANONSBURG, PA 15317-9564 USA A DIVISION OF WELD TOOLING CORPORATION © Weld Tooling Corp. ROM 1:16 Litho in U.S.A. LIT-MM1-BRO-0612 Bug-O Systems is guided by honesty, integrity and ethics in service to our customers and in all we do.

MM-1 Programmable Pipe Cutter - Technical Data MM-1 Programmable Pipe Cutter - Programming Technical Data: MM-1 Programmable Pipe Cutter - Dimensions Main Control Panel Cutting Diameter: Load Capacity: Dimensions: Input Power: Net Weight: Programming Custom Shapes: Types of Cuts: A. Pipe Program 1. Saddle Cuts 2200 lb. (998 kg) 2. Offset from Center-Line (Hillside) 137" L x 36" W x 55" H 3. Lateral Cuts (348cm L x 91cm W x 140cm H) 4. Miter Cuts 5. Hole Cuts 120 VAC/50-60 Hz/1Ph 240 VAC/50-60 Hz/1Ph B. Shape Program 1. Custom Irregular Shapes 1000 lbs (454 kg) 4"-16" O.D. (10-40 cm) or...

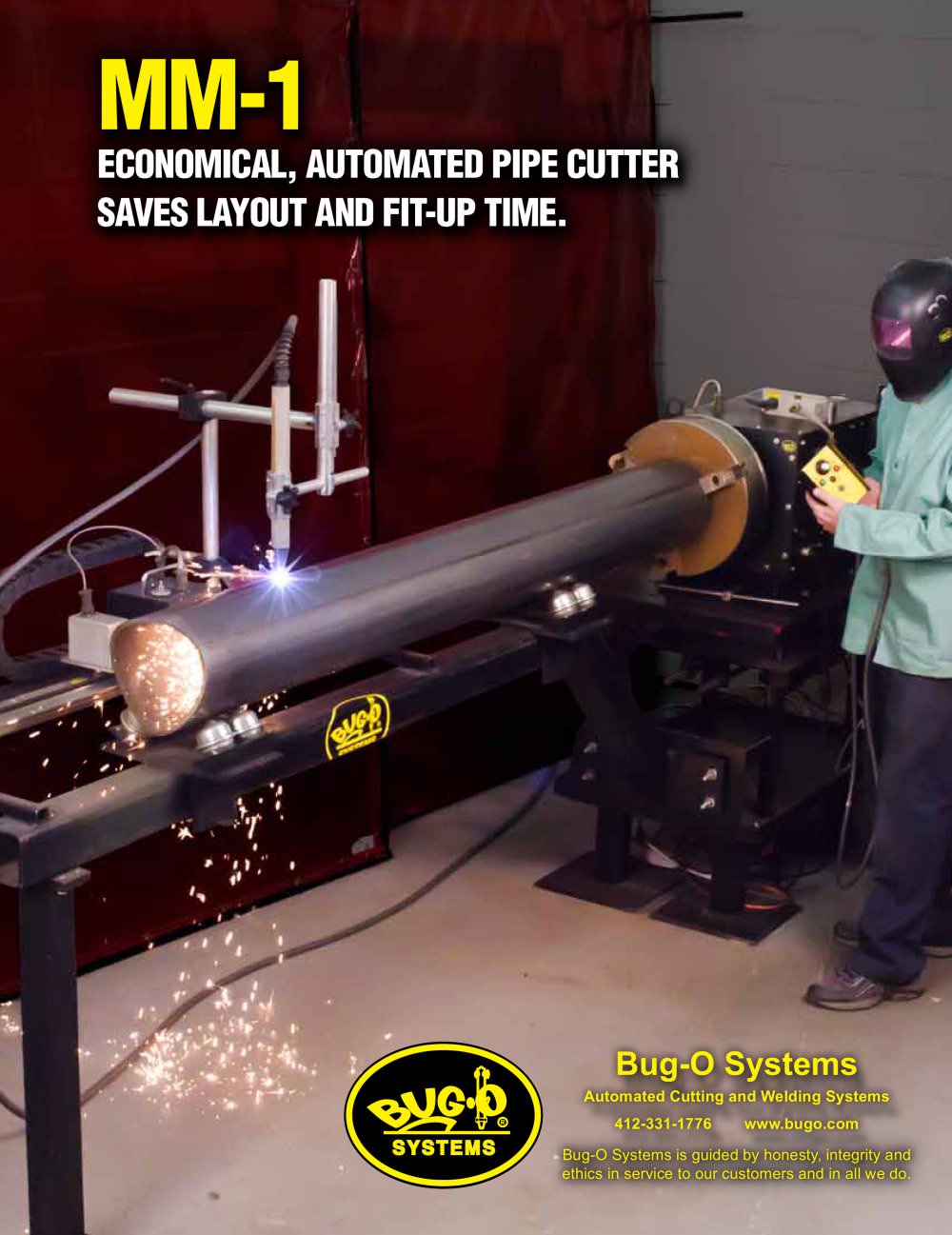

MM-1 Programmable Pipe Cutter - Technical Data MM-1 Programmable Pipe Cutter - Programming Technical Data: MM-1 Programmable Pipe Cutter - Dimensions Main Control Panel Cutting Diameter: Load Capacity: Dimensions: Input Power: Net Weight: Shipping Weight (for SEO-3500 or SEO-3502 Only): The MM-1 is a computer-controlled machine that automates the cutting of profiles, holes, nozzles and shapes on pipe with diameters from 4" to 16" (10-40 cm). A 4" to 24" (10-61 cm) model is available. It rotates the pipe on its roller bed with a three jaw chuck, while simultaneously moving a cutting torch...

MM-1 Programmable Pipe Cutter - Technical Data MM-1 Programmable Pipe Cutter - Programming Technical Data: MM-1 Programmable Pipe Cutter - Dimensions Main Control Panel Cutting Diameter: Load Capacity: Dimensions: Input Power: Net Weight: Programming Custom Shapes: Types of Cuts: A. Pipe Program 1. Saddle Cuts 2200 lb. (998 kg) 2. Offset from Center-Line (Hillside) 137" L x 36" W x 55" H 3. Lateral Cuts (348cm L x 91cm W x 140cm H) 4. Miter Cuts 5. Hole Cuts 120 VAC/50-60 Hz/1Ph 240 VAC/50-60 Hz/1Ph B. Shape Program 1. Custom Irregular Shapes 1000 lbs (454 kg) 4"-16" O.D. (10-40 cm) or...

MM-1 Programmable Pipe Cutter - Programming Capabilities TYPE 1 SADDLE NOZZLE CUTS TYPE 2 OFFSET SADDLE NOZZLE CUTS (Hillside) LATERAL NOZZLE CUTS Computer Software The MM-1 Programmable Pipe Cutter can be programmed from a PC, using either of two software packages described below. Shapes can be created off-line, and downloaded to the machine when required. A cable is supplied to connect to the serial or USB port of the PC. 1. PC Option / BUG-6140. This runs under Windows, and allows you to: • Create shapes on the PC. • Save any number of shapes to disk, and retrieve them as necessary. •...

MM-1 Programmable Pipe Cutter - Programming Capabilities TYPE 1 SADDLE NOZZLE CUTS TYPE 2 OFFSET SADDLE NOZZLE CUTS (Hillside) LATERAL NOZZLE CUTS Computer Software The MM-1 Programmable Pipe Cutter can be programmed from a PC, using either of two software packages described below. Shapes can be created off-line, and downloaded to the machine when required. A cable is supplied to connect to the serial or USB port of the PC. 1. PC Option / BUG-6140. This runs under Windows, and allows you to: • Create shapes on the PC. • Save any number of shapes to disk, and retrieve them as necessary. •...
