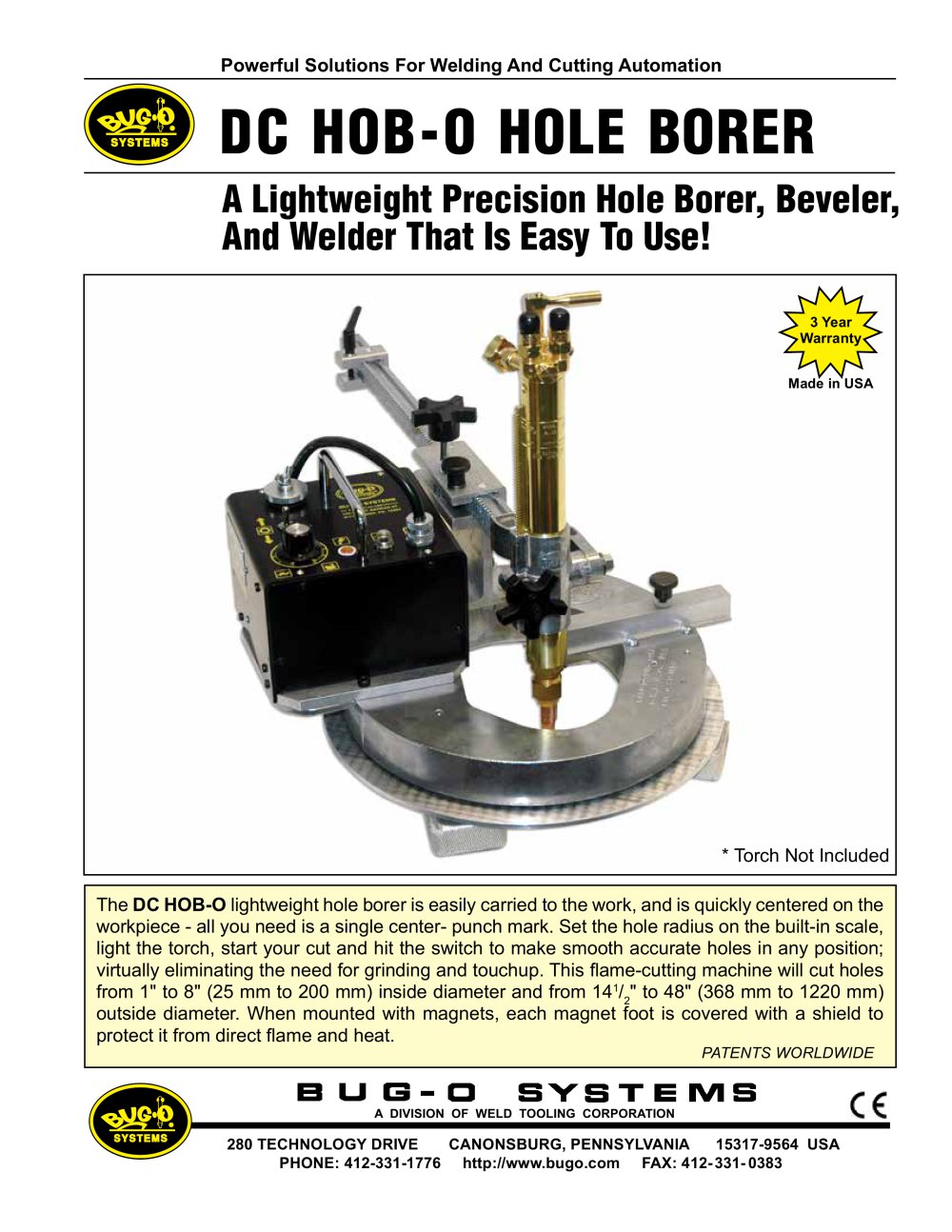

Powerful Solutions For Welding And Cutting Automation DC HOB-O HOLE BORER A Lightweight Precision Hole Borer, Beveler, And Welder That Is Easy To Use! 3 Year Warranty Made in USA * Torch Not Included The DC HOB-O lightweight hole borer is easily carried to the work, and is quickly centered on the workpiece - all you need is a single center- punch mark. Set the hole radius on the built-in scale, light the torch, start your cut and hit the switch to make smooth accurate holes in any position; virtually eliminating the need for grinding and touchup. This flame-cutting machine will cut holes from 1" to 8" (25 mm to 200 mm) inside diameter and from 141/2" to 48" (368 mm to 1220 mm) outside diameter. When mounted with magnets, each magnet foot is covered with a shield to protect it from direct flame and heat. PATENTS WORLDWIDE A DIVISION OF WELD TOOLING CORPORATION 280 TECHNOLOGY DRIVE CANONSBURG, PENNSYLVANIA 15317-9564 USA PHONE: 412-331-1776 http://www.bugo.com FAX: 412- 331- 0383

DC HOB-O HOLE BORER Technical Data: Power Requirements: Net Weight: Shipping Weight: The HOB-O Drive Unit is a solid-state DC drive. Capacities and Speed Ranges INCH METRIC DIA. SPEED DIA. SPEED INCH IPM mm mm/min. Speed range can also be found from formula: Minimum speed per minute = (0.4 x diameter). Maximum speed per minute = (8 x diameter). NOTE: Individual machines may operate at speeds lower than minimum shown in chart. Attachments: The HOB-2080 Blind Area Kit allows you to make smooth accurate cuts while eliminating blind area interference when using the DC HOB-O Hole Borer. It will cut...
