DC Speed Weaving Kit

DC Speed Weaving Kit
1 / 2Pages

Catalog excerpts

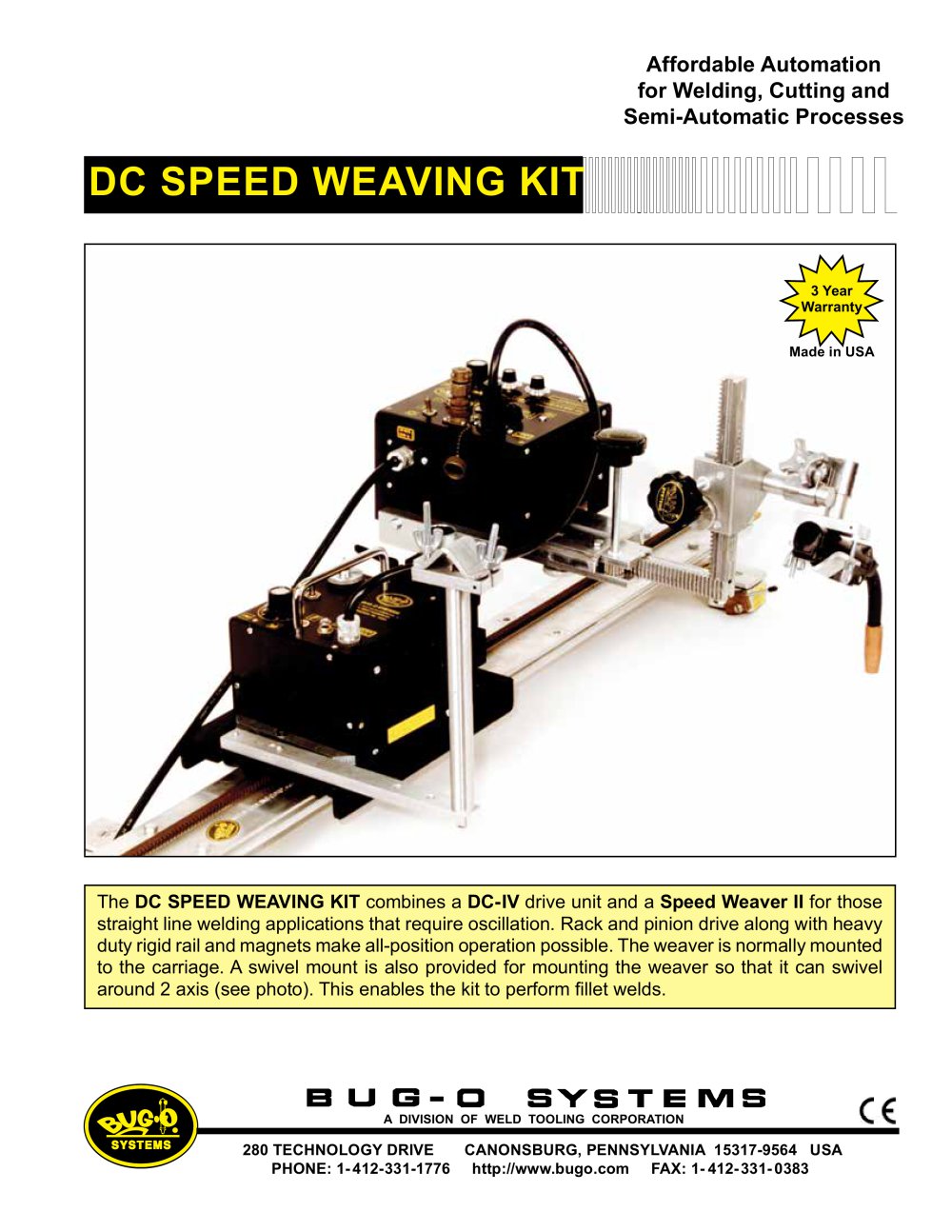

Affordable Automation for Welding, Cutting and Semi-Automatic Processes DC SPEED WEAVING KIT 3 Year Warranty Made in USA The DC SPEED WEAVING KIT combines a DC-IV drive unit and a Speed Weaver II for those straight line welding applications that require oscillation. Rack and pinion drive along with heavy duty rigid rail and magnets make all-position operation possible. The weaver is normally mounted to the carriage. A swivel mount is also provided for mounting the weaver so that it can swivel around 2 axis (see photo). This enables the kit to perform fillet welds. A DIVISION OF WELD TOOLING CORPORATION

Open the catalog to page 1

DC SPEED WEAVING KIT Technical Data: Specifications Power Requirements: Travel Speed: Load Capacity: BUG-O DC-IV 1.5-30 ipm (38-750 mm/min) Tool Kit 1. RUN: In this mode, power to the drive unit is always on, and the machine travels continuously both during weave and dwell. Weave speed and dwell time affect the weld pattern. SPEED WEAVER II Weaver Swivel Mount Cable Mounting Assembly H.D. Rigid Rail 93-1/2" (2.37 m) H.D. Rigid Rail 46-1/2" (1.18 m) Magnet Bar, Swivel w/Release 2. STEP: The unit travels only during dwell, and stops during the oscillator cross stroke. Changing weave speed...
