Overview: The BUG-O DC IV is a dual-speed range, positive rack & pinion drive system designed for mounting welding or cutting attachments. It is mounted on a 12-inch carriage and operates on standard Aluminum Rigid and Flex Rails. The system is part of the Bug-O systems, known for handling tough welding and cutting applications.

Features:

Two pinion gears for different speed ranges: high torque, low speed (A) and low torque, high speed (B).
Cam Clutch for engaging and disengaging the drive.
Infinitely variable speed control.
Forward-Off-Reverse switch and power indicator light.
Includes a power cord and circuit breaker.

Technical Specifications:

Power Requirement: 60 watts at rated voltage with options for 120 VAC, 240 VAC, and 42 VAC.
Net Weight: 18 lbs (8 kg); Shipping Weight: 20 lbs (9 kg).
Dimensions: 8.13 inches (207 mm) by 12 inches (305 mm).

Drive Load Chart:

Low Speed Range: 1.5-30 in/min (38-750 mm/min) with a vertical load capacity of 50 lbs (22 kg) and a gear ratio of 50:1.
High Speed Range: 8-160 in/min (200-4000 mm/min) with a vertical load capacity of 3 lbs (1.4 kg).
Additional speed ranges with varying load capacities and gear ratios are available.

Warranty and Manufacturing: The product comes with a 3-year warranty and is made in the USA by Weld Tooling Corporation.

Catalog excerpts

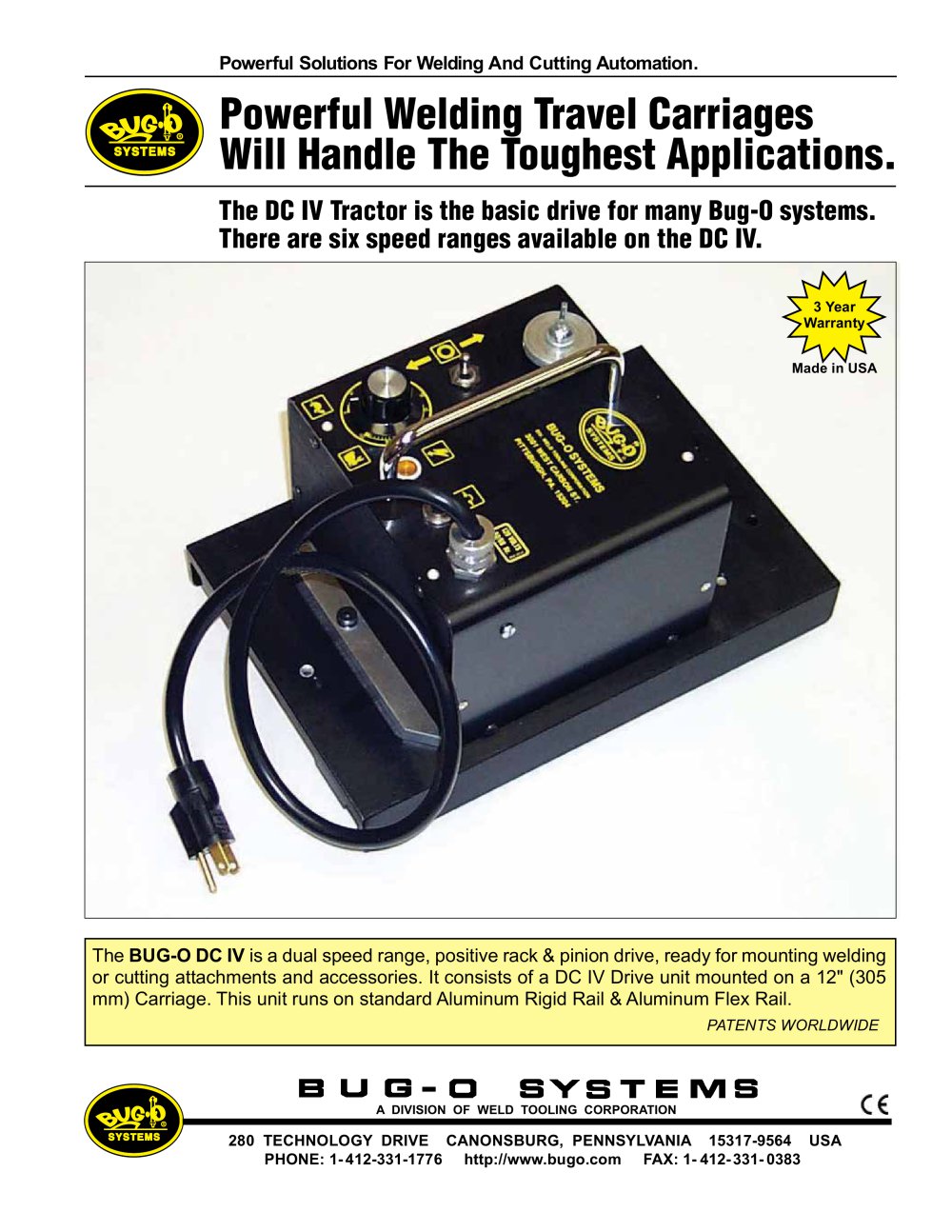

Powerful Solutions For Welding And Cutting Automation. Powerful Welding Travel Carriages Will Handle The Toughest Applications. The DC IV Tractor is the basic drive for many Bug-O systems. There are six speed ranges available on the DC IV. 3 Year Warranty Made in USA The BUG-O DC IV is a dual speed range, positive rack & pinion drive, ready for mounting welding or cutting attachments and accessories. It consists of a DC IV Drive unit mounted on a 12" (305 mm) Carriage. This unit runs on standard Aluminum Rigid Rail & Aluminum Flex Rail. PATENTS WORLDWIDE A DIVISION OF WELD TOOLING CORPORATION 280 TECHNOLOGY DRIVE CANONSBURG, PENNSYLVANIA 15317-9564 USA PHONE: 1- 412-331-1776 http://www.bugo.com FAX: 1- 412- 331- 0383

Open the catalog to page 1

C. Wing nut locks clutch. D. Cam Clutch engages and disengages the drive. E. Power Cord. F. Power Indicator Light. Two pinion gears are provided. The factory installed pinion engages the bull gear to provide a high torque, low speed range (A). The user can easily install the alternate pinion to bypass the bull gear and obtain a low torque, high speed range (B). G. Forward-Off-Reverse Switch. H. Infinitely variable speed control. J. Circuit Breaker. Technical Data: Power Requirement: -60 watts at rated voltage: DC IV: Net Weight: 18 lbs. (8 kg) Shipping Weight: Drive Load Chart Continuous Pinion...
