BUG-O SYSTEMS
DC General Welding Kit

DC General Welding Kit

Product catalog summary

Overview: The document provides technical specifications and features of the BUG-O DC IV welding kits, designed for automation in welding, cutting, and semi-automatic processes. It includes details on different models, components, and optional accessories.

Features:

BUG-O DC IV: Core component of the welding kit.
Cable Mounting Assembly: Facilitates cable management.
Machined Rack Welding Group: Ensures precision in welding operations.
Heavy Duty Rigid Rail: Provides stability and support.
Magnet Bar Swivel with Release: Allows for easy positioning and release.
Tool Kit: Contains necessary tools for operation and maintenance.

Technical Data:

Power Requirements: Available in 120VAC, 240VAC, and 42VAC models.
Travel Speed: Ranges from 1.5 to 30 inches per minute (38-760 mm/min), with an increased range of 8-160 ipm (200-4000 mm/min) when using a bypass pinion.
Load Capacity: 50 lbs (22.7 kg) vertically and 120 lbs (54.4 kg) horizontally, reduced to 3 lbs (1.4 kg) with bypass pinion.
Weight: Net weight of the kit is 60 lbs (27.3 kg), with a shipping weight of 79 lbs (36 kg).

Kit Inclusions:

BUG-1950 DC IV General Welding Kit: Includes BUG-0343, tool kit, cable mounting assembly, machined rack welding group, heavy-duty rigid rails, and swivel magnet plates.
BUG-1951 and BUG-1952 Kits: Similar to BUG-1950 but with different power requirements (240VAC and 42VAC respectively).

Factory Installed Options:

Pendant Control with Weld Starter: Available in different lengths, includes speed control and travel switches.
Stepping Module: Provides adjustable-timed power to the DC drive when the limit switch is tripped.

Available Separately:

Limit Switch Kit: Stops the drive at the end of travel.
Carriage Trailer with Hitch: For transportation and mobility.

Catalog excerpts

Affordable Automation for Welding, Cutting and Semi-Automatic Processes DC General Welding Kit Features: A BUG-O DC IV Cable Mounting Assembly Machined Rack Welding Group Heavy Duty Rigid Rail Magnet Bar Swivel w/Release Tool Kit Technical Data: Power Requirements: Travel Speed: Load Capacity: DC IV General Welding Kit 120 VAC (120/50-60/1) BUG-O DC IV *1.5-30 ipm (38-760 mm/min) Includes: 1 BUG-9444 Tool Kit Cable Mounting Assembly Machined Rack Welding Group Heavy-Duty Rigid Rail 8' (2.37 m) Heavy-Duty Rigid Rail 4' (1.18 m) Swivel Magnet Plate w/Release DC IV General Welding Kit 240 VAC Same as above except with BUG-0443 DC IV General Welding Kit 42 VAC Same as above except with BUG-0543 *NOTE: With the bypass pinion installed, the DC IV will have an increased speed range (8-160 ipm: 200-4000 mm/min), however, vertical load carrying capability will be reduced to 3 lbs. (1.4 kg). Factory Installed Options: Available Separately: BUG-1635-_ Pendant Control with Weld Starter (Specify Length Desired). Available in 10.0" (3.0 m) and 25.0' (7.6 m) lengths. Includes: Speed Control Knob and ForwardOff-Reverse Travel Switch and Weld Contactor Switch. BUG-9865 Stepping module bolts to DC Drive. When limit switch is tripped, module provides adjustable-timed power (0-3 seconds) to the DC Drive. BUG-9770 Limit Switch Kit Will stop the drive at end of travel. BUG-2205 Carriage Trailer with Hitch A DIVISION OF WELD TOOLING CORPORATION 280 TECHNOLOGY DRIVE CANONSBURG, PENNSYLVANIA 15317-9564 USA PHONE: 1-412-331-1776 http://www.bugo.com FAX: 1- 412- 331- 0383

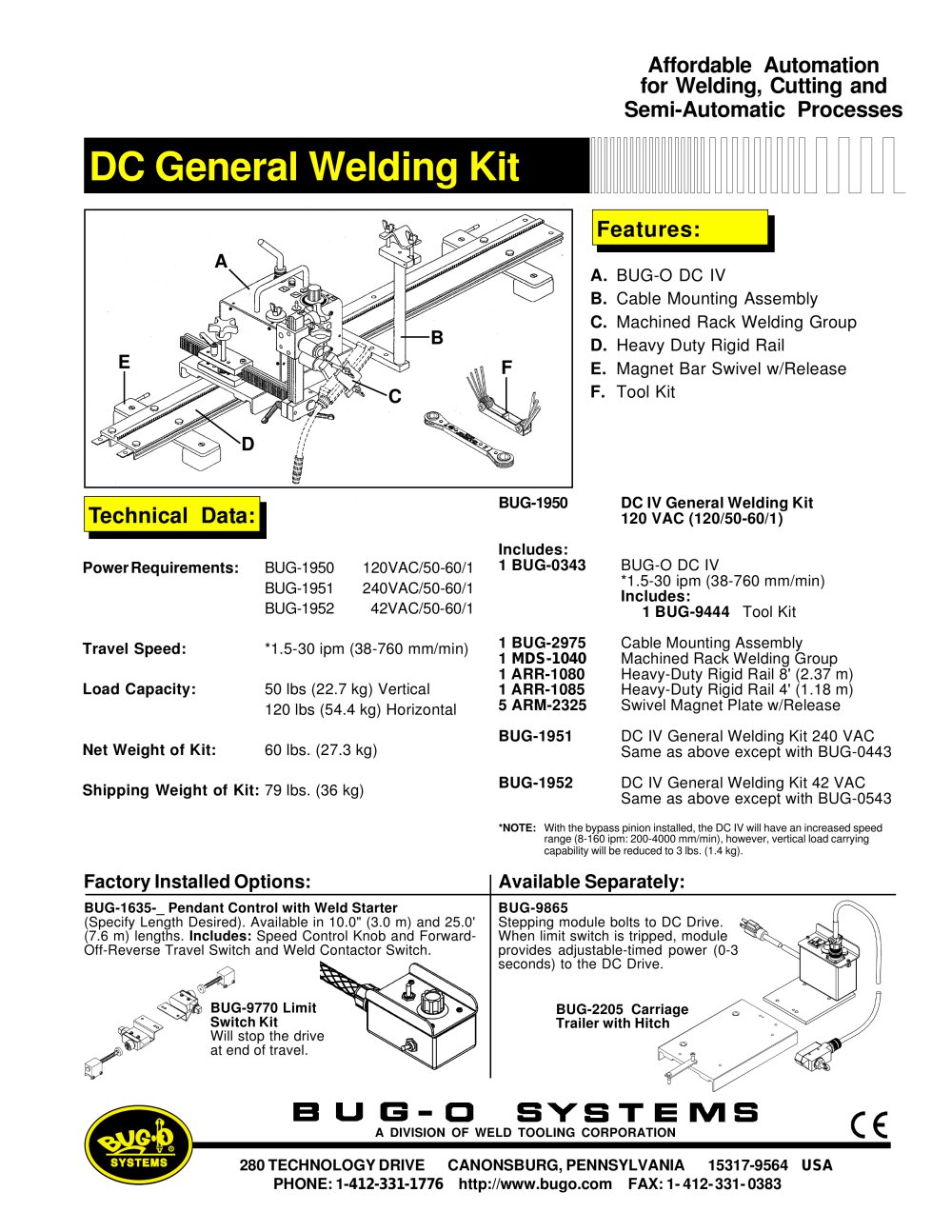

Open the catalog to page 1

Affordable Automation for Welding, Cutting and Semi-Automatic Processes BUG-O DC IV Cable Mounting Assembly H.D. Welding Group Heavy Duty Rigid Rail Magnet Bar Swivel w/Release Tool Kit Technical Data: Power Requirements: BUG-1950-HD 120VAC/50-60/1 BUG-1951-HD 240VAC/50-60/1 BUG-1952-HD 42VAC/50-60/1 Travel Speed: Load Capacity: DC IV Heavy Duty Welding Kit (120/50-60/1) BUG-O DC IV *1.5-30 ipm (38-760 mm/min) Includes: 1 BUG-9444 Tool Kit Cable Mounting Assembly H.D. Welding Group Heavy-Duty Rigid Rail 8' (2.37 m) Heavy-Duty Rigid Rail 4' (1.18 m) Swivel Magnet Plate w/Release DC IV General...

Open the catalog to page 2
