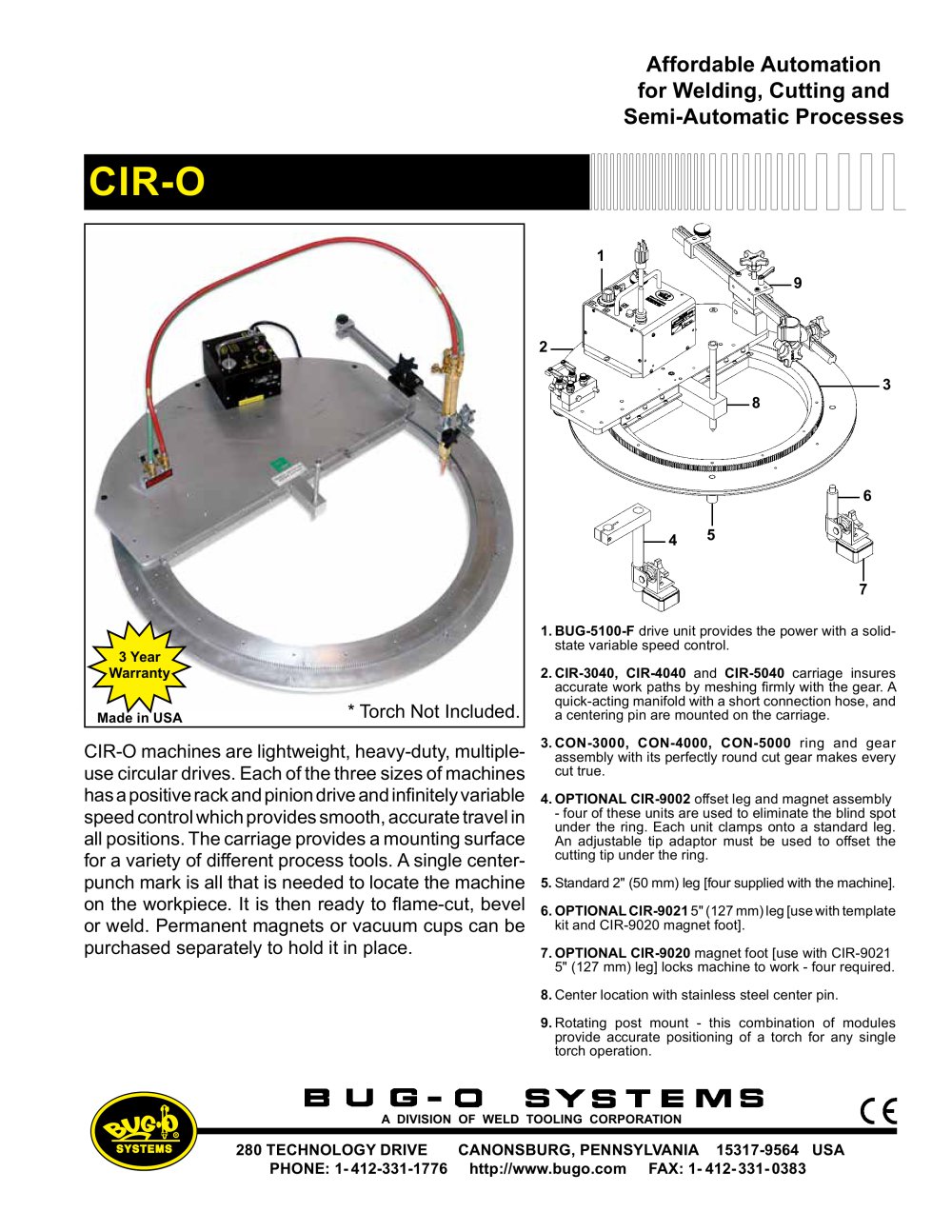

Affordable Automation for Welding, Cutting and Semi-Automatic Processes 1. BUG-5100-F drive unit provides the power with a solid state variable speed control. 3 Year Warranty Made in USA CIR-O machines are lightweight, heavy-duty, multipleuse circular drives. Each of the three sizes of machines has a positive rack and pinion drive and infinitely variable speed control which provides smooth, accurate travel in all positions. The carriage provides a mounting surface for a variety of different process tools. A single centerpunch mark is all that is needed to locate the machine on the workpiece. It is then ready to flame-cut, bevel or weld. Permanent magnets or vacuum cups can be purchased separately to hold it in place. 2. CIR-3040, CIR-4040 and CIR-5040 carriage insures accurate work paths by meshing firmly with the gear. A quick-acting manifold with a short connection hose, and a centering pin are mounted on the carriage. 3. CON-3000, CON-4000, CON-5000 ring and gear assembly with its perfectly round cut gear makes every cut true. 4. OPTIONAL CIR-9002 offset leg and magnet assembly - four of these units are used to eliminate the blind spot under the ring. Each unit clamps onto a standard leg. An adjustable tip adaptor must be used to offset the cutting tip under the ring. 5. Standard 2" (50 mm) leg [four supplied with the machine]. 6. OPTIONAL CIR-9021 5" (127 mm) leg [use with template kit and CIR-9020 magnet foot]. 7. OPTIONAL CIR-9020 magnet foot [use with CIR-9021 5" (127 mm) leg] locks machine to work - four required. 8. Center location with stainless steel center pin. 9. Rotating post mount - this combination of modules provide accurate positioning of a torch for any single torch operation. A DIVISION OF WELD TOOLING CORPORATION 280 TECHNOLOGY DRIVE CANONSBURG, PENNSYLVANIA 15317-9564 USA PHONE: 1- 412-331-1776 http://www.bugo.com FAX: 1- 412- 331- 0383

CIR-O HEAVY DUTY CIRCLE CUTTER Capacities and Speed Ranges DIAMETER INSIDE RING OUTSIDE RING INSIDE RING 32" (813 mm) 40" (1016 mm) "X" = 8.18" (208 mm) with 2" legs "X" "X" = 11.18" (284 mm) with 5" legs NOTE: Torches, tips and magnets or vacuum cups must be ordered separately. OUTSIDE RING SHIPPING WEIGHT OUTSIDE RING INSIDE RING PART POWER PART NUMBER REQUIREMENT NUMBER Optional Accessories: CIR-9030 CIR-III CIR-9040 CIR-IV CIR-9050 CIR-V TEMPLATE KIT - consists of a sheet aluminum master template, alignment bars, spacer legs, tensioning assembly and torchholder. Pattern is cut in tempered...
