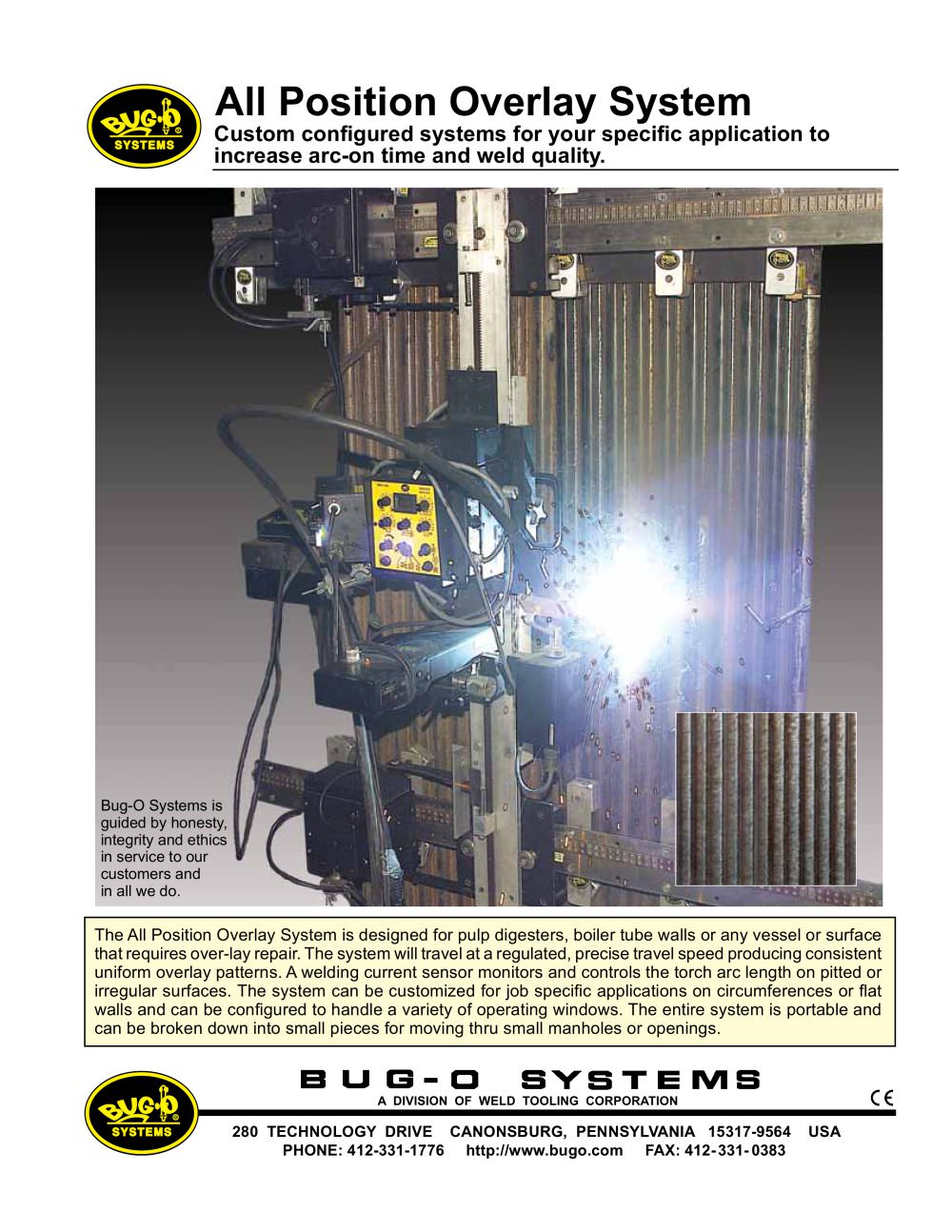

All Position Overlay System Custom configured systems for your specific application to increase arc-on time and weld quality. Bug-O Systems is guided by honesty, integrity and ethics in service to our customers and in all we do. The All Position Overlay System is designed for pulp digesters, boiler tube walls or any vessel or surface that requires over-lay repair. The system will travel at a regulated, precise travel speed producing consistent uniform overlay patterns. A welding current sensor monitors and controls the torch arc length on pitted or irregular surfaces. The system can be customized for job specific applications on circumferences or flat walls and can be configured to handle a variety of operating windows. The entire system is portable and can be broken down into small pieces for moving thru small manholes or openings. A DIVISION OF WELD TOOLING CORPORATION 280 TECHNOLOGY DRIVE CANONSBURG, PENNSYLVANIA 15317-9564 PHONE: 412-331-1776 http://www.bugo.com FAX: 412- 331- 0383

All Position Overlay System Custom configured systems for your specific application to increase arc-on time and weld quality. Utilizing BUG-O MODULAR DRIVE SYSTEM components, the unit provides precise, repeatable travel patterns with a coverage area of 11’ (3.35 m) vertically by 8’ (2.4 m) horizontally. The vertical height can be customized and the horizontal length can be expanded indefinitely by adding standard BUG-O rails and magnets. Two Horizontal travel carriages, with full function pendant control, run on parallel rails supporting the vertical rail and tractor and provide adjustable horizontal...
