FSR Brochure

Product catalog summary

System Description
The FLEXWELL® Safety Pipe is a double-walled, flexible pipe system designed for the safe transport of hazardous fluids. It includes a leak detection system and meets European safety standards. The pipe dimensions range from DN 12 to DN 100, with a pressure capacity of 25 bar and a temperature range of -10°C to +50°C. It is constructed with stainless steel inner and outer pipes, encased in PE for corrosion protection.

Leak Monitoring
The system features a surveillance space between the inner and outer pipes for continuous leak monitoring using pneumatic devices. This space can be filled with inert gas or evacuated to prevent fluid escape. It complies with European standards for leak detection and provides acoustic and optical alarms in case of leaks.

Legal and Installation Requirements
Installation must comply with European standards and environmental legislation. The pipe can be installed both underground and above ground, with flexible options. Only trained and accredited firms are authorized to perform installations.

Advantages
The FLEXWELL® Safety Pipe offers operational safety and economic benefits, including easy system checks without downtime and reduced need for pressure tests or inspections. It is available in lengths up to 1000 meters, allowing for quick installation.

Product Overview
The document provides detailed specifications for various components, including piping, connecting fittings, through-connections, elbows, and T-pieces. Each component is described with its nominal bore, pressure capacity, and material specifications.

Construction Details
The pipe system includes a corrugated inner pipe, a surveillance space, a corrugated outer pipe, and a PE casing. Quality assurance is conducted through external and internal tests to ensure compliance with safety standards.

Specifications
The FLEXWELL® Safety Pipe FSR is constructed using stainless austenitic steel with material numbers 1.4404/1.4571 for inner parts and 1.4301 for outer parts. The joining method involves TIG welding or hard soldering, and only BRUGG solder Type BRL 8.50.34 is permitted. The pressure stage is PN 25, and insulation should comply with DIN 30762.

Procedures
Integrated through-connections and elbows are available, with specifications for each type including dimensions and article numbers. The integrated elbow is necessary when the minimal bending radius cannot be maintained. Monitorable elbows and T-pieces with flanged connections are also detailed, including their assembly and sealing requirements.

Standards and Recommendations
The document emphasizes the use of specific materials and methods, such as the exclusive use of BRUGG solder and compliance with DIN standards for insulation. It also highlights the importance of using suitable materials for sealing and insulation to ensure system integrity.

Key Data from Tables
The tables provide detailed specifications for various components, including dimensions, material types, and article numbers for different pipe sizes and configurations. These include integrated through-connections, elbows, and T-pieces, each with specific measurements and requirements.

Company Information
Brugg Rohrsystem AG and BRUGG Rohrsysteme GmbH are highlighted as providers of efficient solutions for transporting liquid materials, with a global network of partners. They offer customer-specific solutions and emphasize their expertise in single-wall, double-wall, and insulated pipe systems.

Catalog excerpts

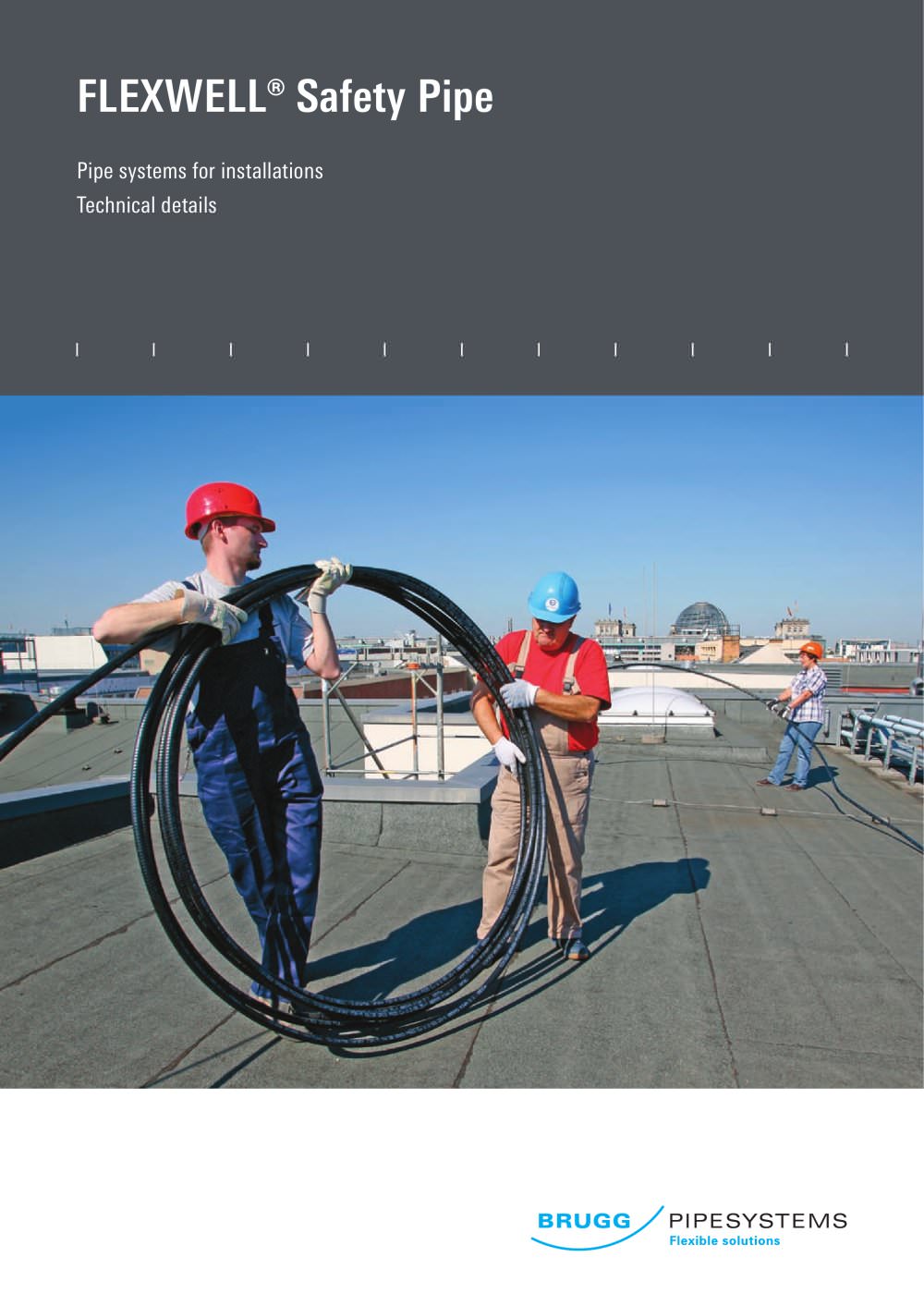

FLEXWELL® Safety Pipe Pipe systems for installations Technical details

Open the catalog to page 1

FLEXWELL® Safety Pipe Subject to technical changes. BRUGG/ PIPESYSTEMS

Open the catalog to page 2

FLEXWELL® Safety Pipe System description System description FLEXWELL® Safety Pipe System description FLEXWELL® Safety Pipe - Leak monitoring Product overview - Piping/Connecting fittings TIG welding Product overview - Connecting fittings GRAPA graphite compression joint Product overview - Through-connections Product overview - Elbows, T-pieces FLEXWELL® Safety Pipe with stainless steel smooth-bore inner pipe, stainless steel outer pipe and PE casing FLEXWELL® Safety Pipe with stainless steel inner pipe, stainless steel outer pipe and PE casing Connecting fittings Connecting fitting FSR 13/25...

Open the catalog to page 3

FLEXWELL® Safety Pipe System description The FLEXWELL® Safety Pipe is a: - double-walled, monitorable, flexible and factory produced pipe system with all necessary quality tests - approved for the transport of water-hazardous, flammable or otherwise dangerous fluids - recognized and approved leak detection system - DIBt Approval Number: Z- 38.4 - 253 Leak monitoring The surveillance space between the inner and outer pipe enables permanent leak monitoring using approved leak detection devices operating either on the positive pressure or vacuum principle. The use of these systems is compliant with...

Open the catalog to page 4

FLEXWELL® Safety Pipe System description Leak monitoring The FLEXWELL® Safety Pipe is permanently monitored using pneuma- tic leak detection devices/leak detectors. These regulate the monito- ring pressure in the surveillance space and register any changes of pressure which may occur. The surveillance space is either filled with an inert gas or evacuated and prevents the uncontrolled escape of the transport medium into the environment in the event of a leakage. The surveillance space must be constructed in such a way that the proper functioning and operating safety of the leak detection system...

Open the catalog to page 5

FLEXWELL® Safety Pipe I FSR 4.110 Product overview Piping/Connecting fittings TIG welding Nominal bore/ Type of joint inner/outer 25 smooth-bore inner pipe corrugated outer pipe Connecting fitting Connecting fitting Connecting fitting corrugated inner pipe corrugated outer pipe collar with split loose flange collar with split loose flange and monitorable sealing surface with O-rings (Part 1 ) Connecting fitting 25 collar with split loose flange and monitorable sealing surface with O-rings (Part 2) Subject to technical changes. BRUGG/ PIPESYSTEMS

Open the catalog to page 6

FLEXWELL® Safety Pipe Product overview Connecting fittings GRAPA graphite compression joint Nominal bore/ Type of joint inner/outer Connecting fitting compression-type screwed joint/ graphite screwed joint Connecting fitting graphite seal/hard soldering with medium Connecting fitting external thread graphite seal/hard soldering collar with split loose flange graphite seal/hard soldering with medium with medium Connecting fitting Connecting fitting graphite seal/ shaped ring screw joint external thread graphite seal/ shaped ring screw joint with medium with medium Connecting fitting 25 ollar with...

Open the catalog to page 7

FLEXWELL® Safety Pipe I FSR 4.112 Product overview Nominal bore/ Pressure Connector DN PN Type of joint inner/outer graphite seal/ shaped ring-screw joint with medium with medium with medium Subject to technical changes. BRUGG/ PIPESYSTEMS

Open the catalog to page 8

FLEXWELL® Safety Pipe Product overview Elbows, T-pieces Nominal bore/ Connector Material Type of joint inner/outer No. complete assembly sealing surface with medium complete assembly sealing surface with medium Subject to technical changes. BRUGG/ PIPESYSTEMS Flexible solutions

Open the catalog to page 9

FLEXWELL® Safety Pipe FLEXWELL® Safety Pipe with stainless steel smooth-bore inner pipe, stainless steel outer pipe and PE casing FLEXWELL® Safety Pipe Type FSR 13/25 PE casing corrugated stainless steel outer pipe (1.4301) smooth-bore stainless steel inner pipe 15x1 ^^t^ space * inner pipe: Material No. 1.4404/1.4571 Type ID/OD DN PN d D PE Volume Weight Bending Article No. WT inner pipe surveillance space radius Subject to technical changes. BRUGG/ PIPESYSTEMS

Open the catalog to page 10

FLEXWELL® Safety Pipe FLEXWELL® Safety Pipe with stainless steel inner pipe, stainless steel outer pipe and PE casing FLEXWELL® Safety Pipe Type FSR 30/48 - FSR 127/175 PE casing corrugated stainless steel outer pipe (1.4301) corrugated stainless steel inner pipe* surveillance space inner pipe: Material No. 1.4404/1.4571 Type ID/OD WT inner pipe surveillance space Subject to technical changes. BRUGG/ PIPESYSTEMS

Open the catalog to page 11

FLEXWELL® Safety Pipe I FSR 4.202 Connecting fining FSR 13/25 GRAPA Inner pipe: compression-type screwed joint; outer pipe: graphite compression joint Materials: stainless steel Connecting fitting: Sliding collar: Sealing ring: brass, not in contact with medium Type ID/OD Subject to technical changes. BRUGG/ PIPESYSTEMS

Open the catalog to page 12

FLEXWELL® Safety Pipe FSR 4.211 Connecting fitting with collar and split loose flange Joining method: TIG welding/hard soldering FLEXWELL® Safety Pipe Type FSR 30/48 to FSR 127/175, pressure stage PN 25 connecting fitting D outer pipe hard soldering d1 shrink sleeve connector for measuring branch or test valve l TIG welding stainless steel inner pipe appr. L Version: Collar and split loose flange according to DIN EN 1092-1 Material: Threaded socket made of material no. 1.4404/1.4571 flange made of material P265GH/P250GH, hot-galvanized Typ ID/OD DN d1 Flange acc. to DIN EN 1092-1 l DN D ø k screws*...

Open the catalog to page 13

FLEXWELL® Safety Pipe Connecting fitting monitorable with collar and split loose flange with monitorable sealing surface (Part 1), joining method: TIG welding/hard soldering stainless steel inner pipe Collar and split loose flange acc. to DIN EN1092-1 Threaded socket made of material no. 1.4404/1.4571 Flange made of material no. 1.4404/1.4571 Type ID/OD DN tl1 Flange acc. to DIN EN 1092-1 I L Article No. without measuring branch DN D ok screws* appr. split loose flange Threaded socket can be delivered with or without measuring branch (Article No. for measuring branch 829 335 00J * Screw length...
