Catalog excerpts

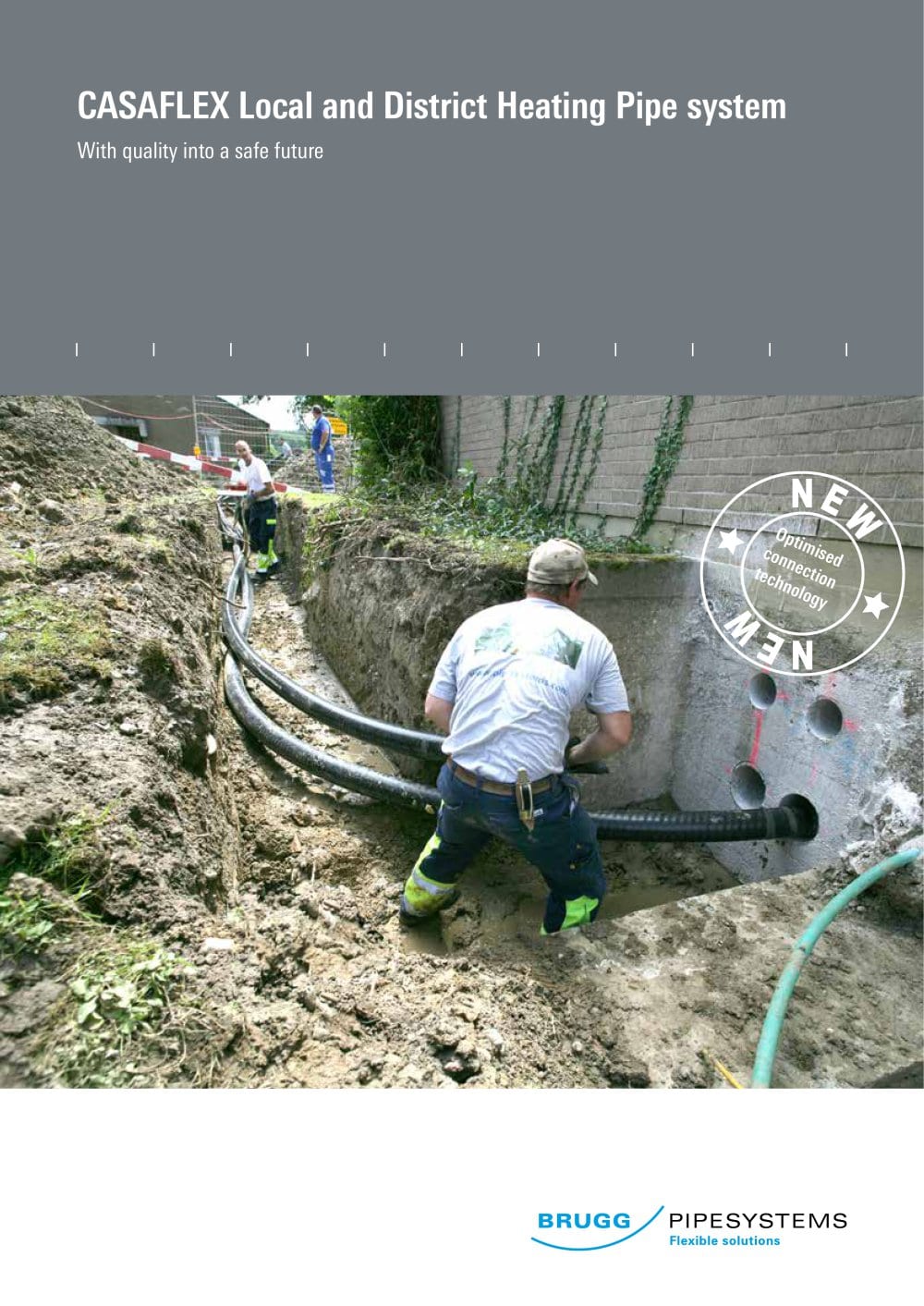

CASAFLEX brochure - 1

CASAFLEX Local and District Heating Pipe system With quality into a safe future BRUGG/ PIPESYSTEMS ^__ ^^^^ Flexible solutions

Open the catalog to page 1
CASAFLEX brochure - 2

CASAFLEX Local and District Heating Pipe system for local and district heating systems CASAFLEX - the self-compensating, monitorable, thermally insulated and helically corrugated pipe system made of stainless steel: flexible, efficient, simple, reliable and competent. The corrugated outer casing, the twisted monitoring wires and an optimised connection technology enable installation-friendly laying. The high-temperature-resistant, high-performance PIR (polyisocyanurate) foam composite system encloses local and district heating networks reliably and quickly. It has been an energy-efficient...

Open the catalog to page 2
CASAFLEX brochure - 3

With quality into a safe future The five strengths combined in CASAFLEX Flexible Adjusted to the requirements and flexible in use Efficient Ambitious scheduling inexpensively realised Simple Simply and competently planned, implemented quickly Reliable The original - successfully used for many years Professional Consultation and innovation on the basis of many years of experience Now with new connection technology 4 steps ready to use! Rapid, simple and securely installed with few components. Thanks to its compact construction, the connection points can be retroactively insulated with...

Open the catalog to page 3
CASAFLEX brochure - 4

Flexible and efficient The best of both sides: quickly installed to meet tight schedules Delivery lengths up to 810 metres on one coil and highly flexible pipes simplify routing. Short construction times and small trenches minimise construction costs. Monitorable flexibility The corrugated outer casing of CASAFLEX offers in combination with the flow-optimised helically corrugated carrier pipe and the twisted, expandable monitoring wires, a maximum in flexibility. This means that underground obstacles can be circumvented without difficulty, quickly and securely. Narrow winding radii enable...

Open the catalog to page 4
CASAFLEX brochure - 5

Simple and reliable The original - hassle-free installation and a long service life Hassle-free planning and design thanks to simple statics and connection technology. Maximum product quality, optimised thermal insulation and installation result in a long service life. The problem-solver We plan and ship, you lay the pipes. Rapid and simple in implementation, you need take neither U-bends nor Z-bends into consideration, fixed-point structures and ventilation facilities are generally not required. CASAFLEX - connections are installed simply and rapidly. They produce a secure connection to...

Open the catalog to page 5
CASAFLEX brochure - 6

Professional Consultation and innovation on the basis of many years of experience Innovation, long-standing experience and needs-oriented, individual consultation. A strong brand Some 2,000,000 m of CASAFLEX pipes already laid and well over 100,000 installed connections show the confidence our customers have in our products. Brugg Pipesystems stand for long-standing experience, high quality and innovative products. The consultation we provide to you is individual and results-oriented. Our quality control and compliance with the relevant standards ensures that all of the Brugg companies...

Open the catalog to page 6
CASAFLEX brochure - 7

Product range variety also for your application CASAFLEX-UNO Type Inner pipe Outer casing Weight Maximum delivery lengths bending radius inner pipe l/m Operating temperature Peak temperature max. 180 °C Operating pressure 16/25 bar 1) Coil dimension Ø 2,800 x 800 mm (width) 2) Coil dimension Ø 2,800 x 1,200 mm (width) 3) Coil dimension Ø 3,000 x 1,200 mm (width) 4) Coil dimension Ø 3,000 x 1,600 mm (width) just ex work Wunstorf Supplied in drums on request CASAFLEX-DUO Type Volume of Weight Maximum delivery lengths Inner pipe Outer casing bending radius inner pipe Operating temperature max....

Open the catalog to page 7
CASAFLEX brochure - 8

Pipe systems for the future District heating – Industry – Petrol stations – System packages Your partner for pipe systems We are your point of contact for efficient solutions for the transport of liquids. Thanks to our project engineers, our Development Department, our own production and professional installation management, we are in a position to accompany your projects competently and reliably – in district heating/cooling, in petrol station construction, in industrial plant construction and in the area of system packages. Brugg Rohrsystem AG Industriestrasse 39 CH-5314 Kleindöttingen...

Open the catalog to page 8
