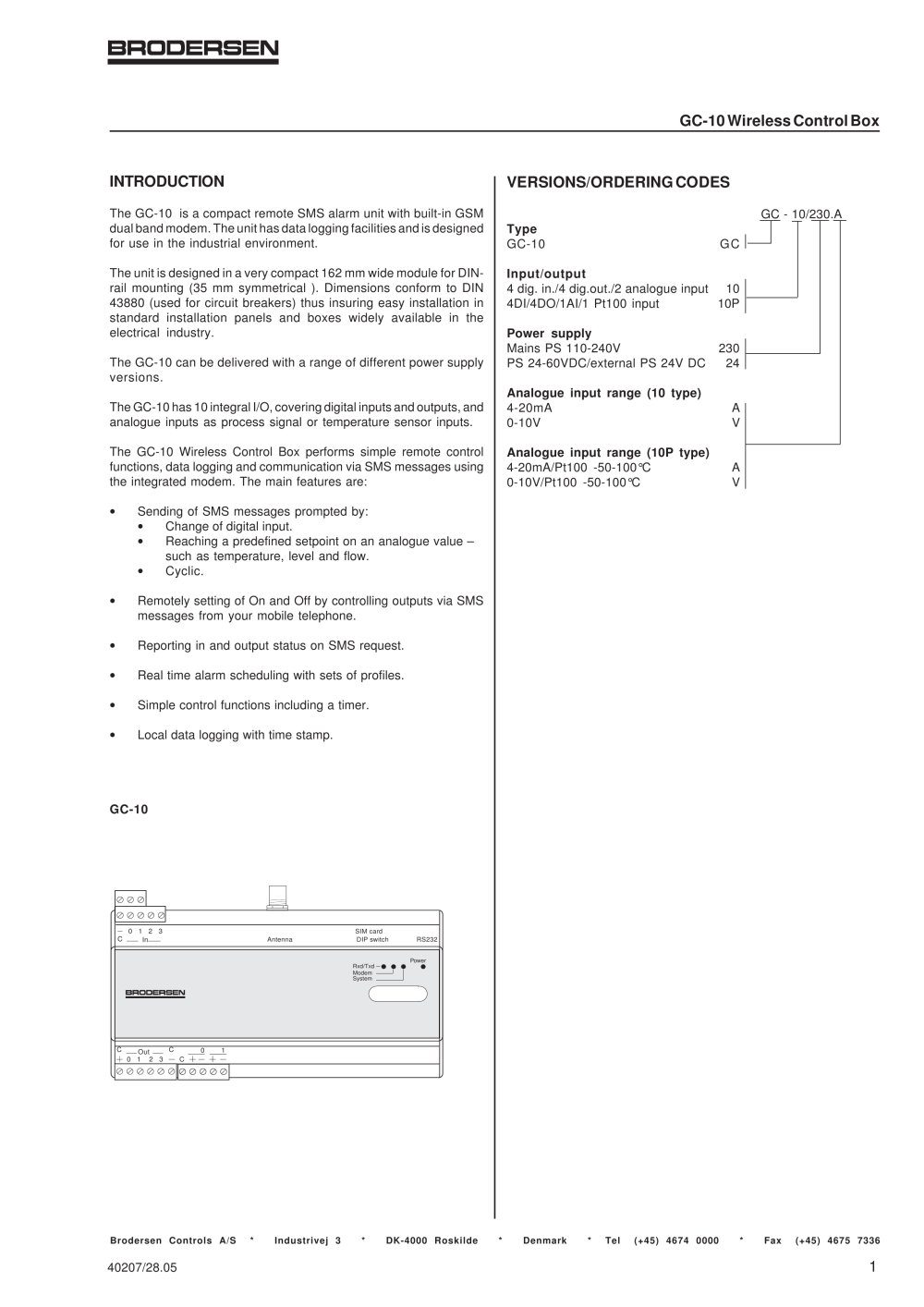

The GC-10 is a compact remote SMS alarm unit with built-in GSMdual band modem. The unit has data logging facilities and is designed for use in the industrial environment.The unit is designed in a very compact 162 mm wide module for DIN-rail mounting (35 mm symmetrical ). Dimensions conform to DIN 43880 (used for circuit breakers) thus insuring easy installation in standard installation panels and boxes widely available in the electrical industry.The GC-10 can be delivered with a range of different power supplyversions.The GC-10 has 10 integral I/O, covering digital inputs and outputs, andanalogue inputs as process signal or temperature sensor inputs.The GC-10 Wireless Control Box performs simple remote controlfunctions, data logging and communication via SMS messages using the integrated modem. The main features are: GC-10GC GC - 10/230.A Type Input/output 4 dig. in./4 dig.out./2 analogue input10 4DI/4DO/1AI/1 Pt100 input10P Power supply Mains PS 110-240V230 PS 24-60VDC/external PS 24V DC24 Analogue input range (10 type) 4-20mAA 0-10VV Analogue input range (10P type) 4-20mA/Pt100 -50-100CA 0-10V/Pt100 -50-100аCV ? Sending of SMS messages prompted by: ? Change of digital input. ? Reaching a predefined setpoint on an analogue value such as temperature, level and flow. ? Cyclic. ? Remotely setting of On and Off by controlling outputs via SMSmessages from your mobile telephone. ? Reporting in and output status on SMS request. ? Real time alarm scheduling with sets of profiles. ? Simple control functions including a timer. ? Local data logging with time stamp. GC-10 > 0 1 2 3 C In DIP switchSIM cardAntenna RS232 Power Rxd/TxdModemSystem C C 0 1 2 3 Out C0 1 Brodersen Controls A/S * Industrivej 3 * DK-4000 Roskilde * Denmark * Tel (+45) 4674 0000 * Fax (+45) 4675 7336 40207/28.05 >

Back-up battery:Internal Lithium battery (800 mAh).Back-up time:min. 2 years (without external batteryor mains supply).Log upload time:typically 5 seconds per 1k byte@9600 Baud. Internal serial interface / modem interface: Signal level:RS232C/TTL.Hardware handshake:DCD, DTR, DSR, RTS, CTS, RI Baud Rate:300, 600, 1200, 2400, 4800, 9600,19200 - fixed set to 9600.Format (default):8 bit (binary), 1 start bit.No parity, 1 stop bit.Protocol:Modbus slave (RTU mode).Error Check:CRC (16).Modem control:Hayes compatible. Dial-up (modem):Optional: DTMF or pulse dialling topre-stored telephone numbers. Up...

Integer (binary value) = Input - range MIN.Rwhere R is the resolution (LSB). Input Input range Integer (Binary- code) 0-10V 0-5V 0-20mA 4-20mA Input [V] Input [mA]<0<0<0<4.000004.00 10.525.6410 21.047.2819 31.568.81229 42.0810.41638 52.51012.02048 63.01213.62457 73.51415.22867 84.01616.83276 94.51818.43686105.02020.04095 >10>5.0>20>20.04095 2.442mV 1.221mV 4.884uA 3.907uA Resolution Output (PNP) > The GC-10 Configuration tool is used to configure the GC-10 and topre-define telephone numbers, SMS texts and other alarm and control settings. Refer to separate description in the GC-10 Configuration...

1)Section A, B and C are isolated from each other. The individual analogueinputs are isolated from each other. Due to protection devices in the analogue inputs the voltage measured from the common (C) terminals to any other terminals must not exceed 80V.2)The polarity at the input must be positive. The common terminalmust be connected to the negative.3)Input signals exceeding the maximum values MAY CAUSEPERMANENT DAMAGE In general the log upload time depend on the size of log and if full logis uploaded at every log upload. Log upload time can be reduced by only uploading data since last upload.The...
