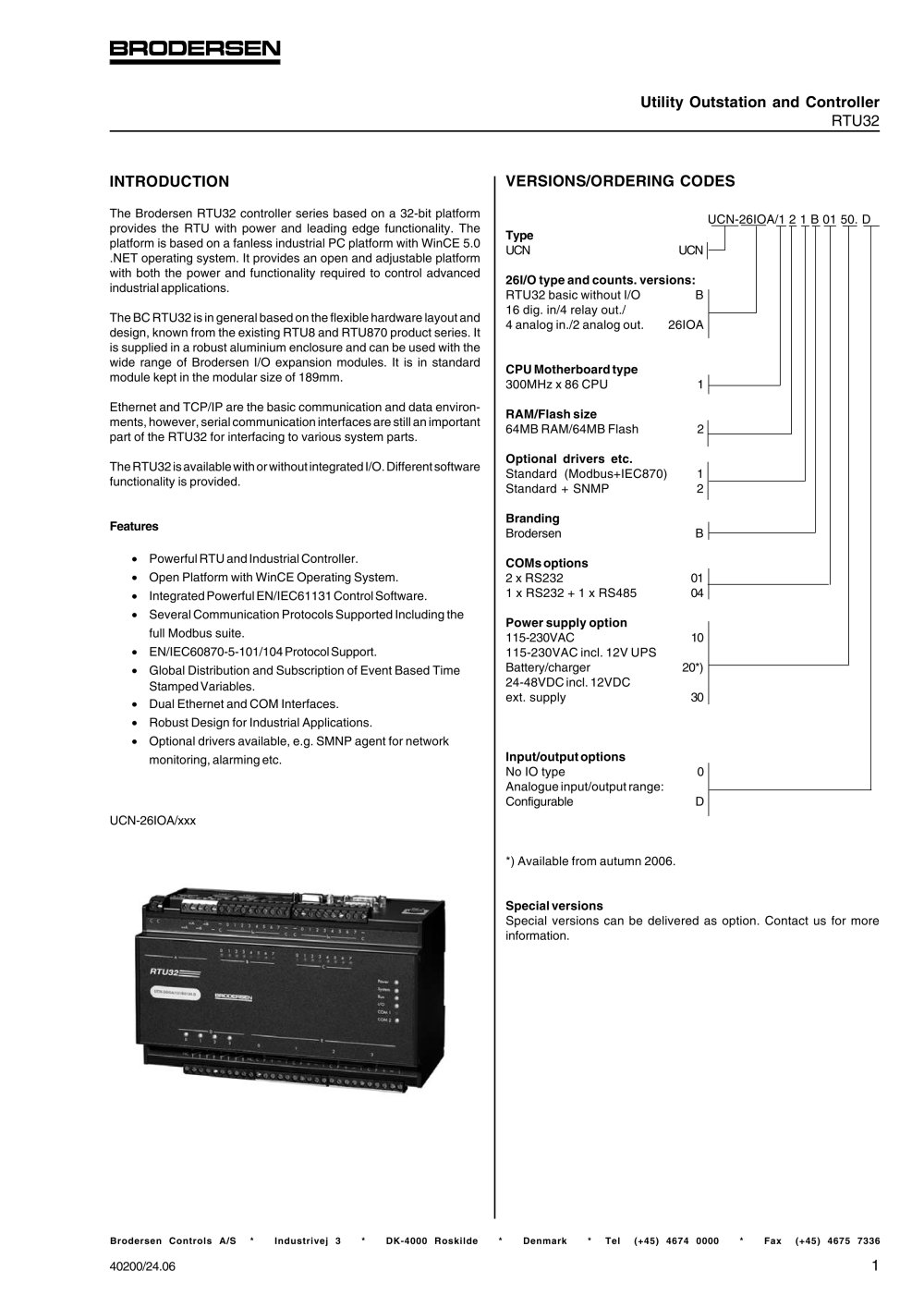

Introduction
The Brodersen RTU32 controller series is a versatile industrial controller based on a 32-bit platform with a WinCE 5.0 .NET operating system. It is designed for advanced industrial applications, featuring a fanless design and compatibility with Brodersen I/O expansion modules.

Features

Integrated EN/IEC61131 control software.
Supports Modbus and EN/IEC60870-5-101/104 protocols.
Dual Ethernet and COM interfaces.
Optional SNMP agent for network monitoring.

Versions/Ordering Codes
Available in various configurations with options for digital and analog I/O, CPU types, RAM/Flash sizes, and power supply options. Custom versions are available upon request.

Technical Description
Supports up to 32 I/O terminals with digital and analog options. Features opto-couplers for digital I/O and galvanic isolation for analog inputs, designed for data processing and networking communication.

Configuration and Software
Managed via RTU32 WebPages and configuration files. Supports EN/IEC61131 programming with STRATON SoftPLC, offering tools for system design and programming.

Fieldbus Configurator
Allows configuration of the Modbus suite and supports variable publishing and subscription across networks.

Utility Protocols
EN/IEC60870-5-10x protocols provide configuration flexibility for utility applications.

Interoperability Requirements
Protocol links provided as a driver in STRATON, allowing full configuration of Interrogation and ASDU. Supports gateway functions for information transfer between protocol interfaces.

Data Logging
Includes a function block for logging event-based or cyclical data to the flash file system, exportable to ZenOn HMI and SCADA software.

Modem Control
Supports dial-up and dial-in functions via PSTN, ISDN, or GSM modems for ModbusRTU and EN/IEC60870 serial protocols.

Real-Time Clock
Uses WinCE real-time task for application execution with synchronization options for high time accuracy.

Communication Features
Supports extended data communication features for ModbusRTU and serial EN/IEC60870-5-101 over serial modems and converters.

Power Supply Options
Offers 24-48VDC and 115-230VAC options, with an optional UPS for battery connection.

Other Interfaces
Includes 2 USB ports, a VGA port, and mouse/keyboard connectivity for direct interaction with the WinCE user interface.

Technical Data
Features a 32-bit CPU system with an AMD Geode™ GX1 300 MHz CPU, supports up to 256 MB SDRAM, and includes various interfaces such as dual Ethernet, COM ports, USB, and VGA/LCD.

Industrial I/O
Expansion I/O via Brodersen I/O LocalBus system, supporting up to 32 I/O Expansion modules.

Software
Operates on WinCE 5.0 .NET, with STRATON SoftPLC VM Embedded for EN/IEC61131 SoftPLC.

General Specifications
Includes indicators for power, system status, SoftPLC program status, and I/O status. Operates within -10 to +60°C, complies with EMC standards, and features IP20 protection.

Catalog excerpts

Input/output The RTU32 basic I/O fit can include up to 32 input/output terminals. I/ O options available: Version UCN- 26IO Digital inputs 16 Can also be used as (10-30V DC) S0 counter inputs (ZI) Digital outputs0 (PNP o. c.) Analogue inputs4 (Configurable)Analogue outputs 2 Sources outputs (Configurable) Relay outputs (NO)4All digital I/Os are equipped with opto-couplers. The analogue inputshave galvanic isolation between the individual channels. Solid state relays are used for multiplexing the analogue inputs. No isolation on analogue outputs. Wiring diagramUCN-B/xx > Brodersen Controls A/S...

Open the catalog to page 3

I/O drivers for integrated I/O and I/O Expansion. Օ ModbusRTU Master and Slave. ModbusTCP Client and Server. Օ EN/IEC60870-5-101 Master and Slave. EN/IEC60870-5-104 Client and Server. Օ SNMP Agent driver (optional).In addition, the RTU32 can run ZenOn CE-runtime application whichexpands the number of available protocols. Data Logging A special data logging function block is available for logging event based or cyclical data to the flash file system. The data logging also supports functions for formatted log directly exportable to ZenOn HMI and SCADA software. Log files can be downloaded from...

Open the catalog to page 5

Resolution: 14 bit, 0-16383. Impedance: Voltage:500 kOhm.Current:100 Ohm. Absolute maximum ratings: Input voltage:40V DC. Input current:ѱ30mA DC. Update time: Better than 250 ms. Measuring accuracy: 25C: б0.2% 6LSB (typically 0.05%ѱ3LSB).-10-55аC: 0.3% ѱ 8LSB (typically 0.1% 4LSB). Linearity: Better than ѱ 1LSB. Temperaturestability: Better than 50ppm/ѰC (typical). Common modevoltage :Max. 80V DC. Common moderejection ratio: Min. 60dB (typical 72dB). Series moderejection: Min. 30dB (50-120Hz) Isolation: (input to input):500V. INTEGRATED ANALOGUE OUTPUTOutputs: Resolution: 14 bit, 0-16383. 2 sourced...

Open the catalog to page 7

WinCE 5.0 .NET.Open platform with possibility for developing and running customer application. STRATON SoftPLC VM Embedded. EN/IEC61131 SoftPLC: Standard drivers: STRATON binding, ModbusRTU,ModbusTCP, EN/IEC60870-5-101/104. > ON ONOFF 1 2 3 4 5 6 7 8 9 10 Optional drivers: SNMP Agent driverVia ZenOn several additional drivers. POWER SUPPLYSupply Voltageversions: Application I/OReserved for STRATONrun modes: - SoftLogic stopped - Run / cold restart - Run / hot restartThe DIL switches can be read from the STRATON application programand can here be used for simple end user configuration. 24-48VDC...

Open the catalog to page 8

Utility Outstation and Controller RTU32 CIRCUIT CONFIGURATION (ANALOGUE) > Analogue Input Analogue OutputI Out V Out 12VI12V100E + C+I0VC +- 100E 24V27VI +- A & I B 0-1K +- A & V B 27VV V GND Brodersen Controls A/S * Industrivej 3 * DK-4000 Roskilde * Denmark * Tel (+45) 4674 0000 * Fax (+45) 4675 7336 40200/24.06 9 >
