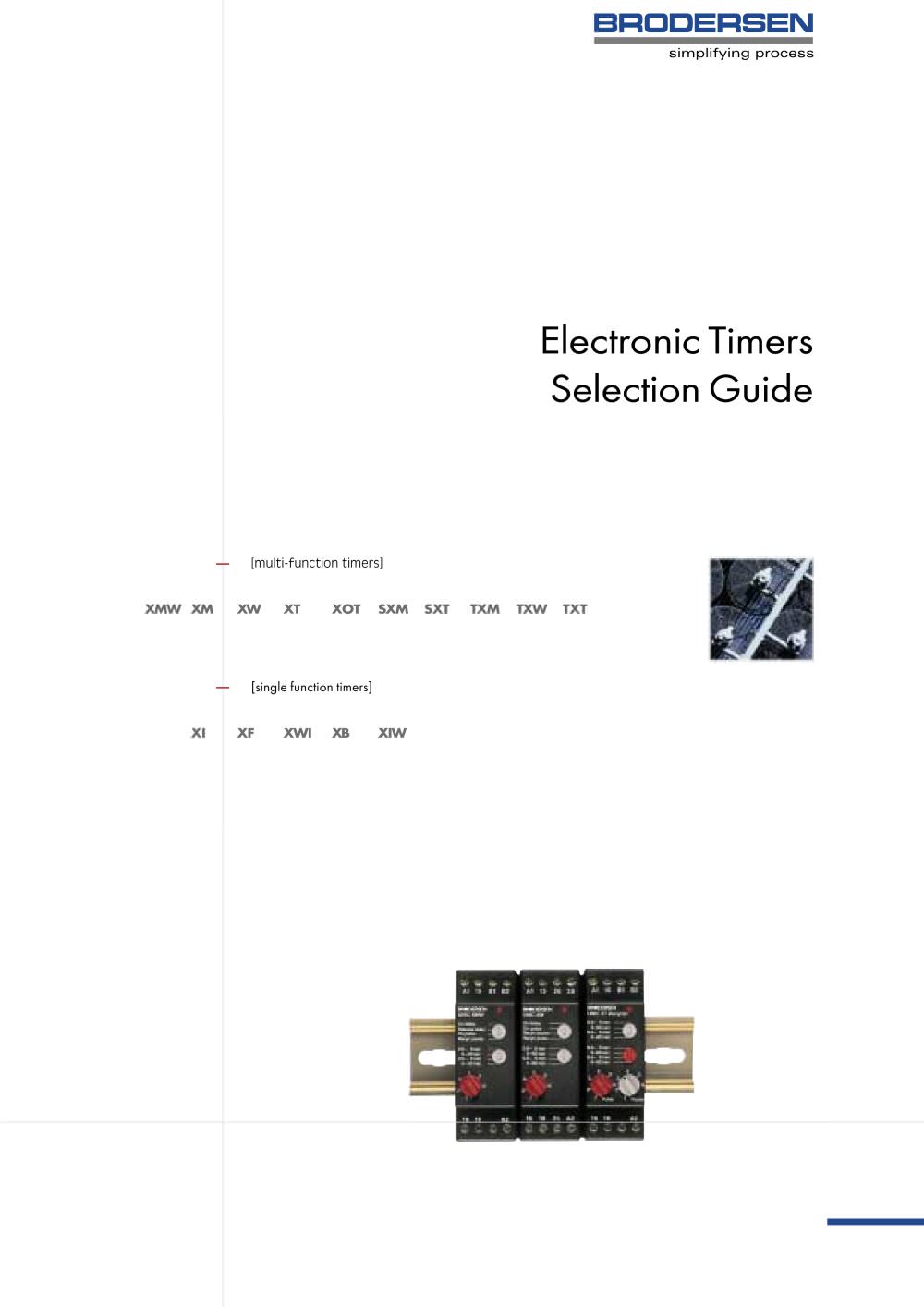

Eletronic Timers Selection Guide

Eletronic Timers Selection Guide

Product catalog summary

Overview: This document serves as a selection guide for electronic timers, detailing various types and functions available. It categorizes timers into multi-function and single-function types, providing specifications, ordering codes, mounting options, output types, supply voltages, and time ranges.

Timer Types:

Multi-function Timers: These include models like XMW, XM, XW, XT, XOT, SXM, SXT, TXM, TXW, and TXT. They offer multiple timing functions such as on delay, release delay, on pulse (with or without control switch), off pulse, symmetrical and asymmetrical recycling, and one-shot asymmetrical functions.
Single-function Timers: Models like XF, XWI, XI, XB, and XIW provide specific functions such as release delay, on pulse, on delay, symmetrical recycler, and delayed pulse.

Functions: The document lists various timing functions, including:

On delay
Release delay
On pulse (with/without control switch)
Off pulse
Symmetrical and asymmetrical recycling (with pause or pulse start)
One-shot asymmetrical (with/without control switch)

Specifications:

Mounting Options: 11-pole plug-in (S) and DIN rail (D).
Output Types: Relay SPDT (1) and Relay DPDT (2).
Supply Voltage: Ranges from 10.5-265V AC/DC for multi-function timers and specific voltages like 24V, 48V, 110/120V, 220/240V, and 380/415V AC for single-function timers.
Time Ranges: Vary from 0.1 seconds to 100 hours, depending on the model and function.

Options: Additional features include remote time adjustment (E), transistor output (N), remote timer interrupt (S), and remote timer start (H).

Ordering Codes: Examples are provided for each timer type, illustrating how to specify the desired configuration, including mounting, output, supply voltage, and time range.

Operation Diagrams: The document includes diagrams that illustrate the operation of different timer functions, helping users understand the timing sequences and LED indicators.

Mechanical Dimensions: Dimensions for front and mounting options are provided for X-types and TX-types, ensuring compatibility with installation requirements.

Catalog excerpts

Multi-funktionSingle Function Multi-function Multi-function Multi-function > 1234567891011121314 On delayRelease delayRelease delay - true offOn pulse - without control switchOn pulse - with control switchOff pulseOn-off pulseDelayed pulse (Y/D starter)Symmetrical recycler with pause startSymmetrical recycler with pulse startAsymmetrical recycler with pause startAsymmetrical recycler with pulse startOne shot asymmetrical - without controlswitchOne shot asymmetrical - with controlswitch On delayRelease delayOn pulse - without control switchOn pulse - with control switchSymmetrical recycler with...

Open the catalog to page 2

Multi-function Multi-function Single Function Single Function Single Function > On delay Release delay - true off On pulse - without control switch Asymmetrical recycler with pause startAsymmetrical recycler with pulse start One shot asymmetrical - without controlswitchOne shot asymmetrical - with control switch XT -S1LH XOT -S1LH XI -S1230N1 XF -S12301 XWI -S1230N1 SD SD SD SD SD 8A/240V AC 1 8A/240V AC 1 8A/240V AC 1 8A/240V AC 1 8A/240V AC 1 5A/240V AC 2 5A/240V AC 2 5A/240V AC 2 5A/240V AC 2 5A/240V AC 2 D type only available with SPDToutput D type only available with SPDToutput 10.5-265V...

Open the catalog to page 3

Multi-function Multi-function Single Function Single Function > On delayRelease delayOn pulse - without control switchOn pulse - with control switchSymmetrical recycler with pause start Delayed pulse (Y/D starter) Symmetrical recycler with pause start Asymmetrical recycler with pause startAsymmetrical recycler with pulse start XB -S1230N1 XIW -S1230 SXM -SA230 SXT -SA230 SD SD SD SD 8A/240V AC 1 8A/240V AC 1 1A/12-240V AC A (Solid state)2A/12-48V DC 1A/12-240V AC A (Solid state)2A/12-48V DC 5A/240V AC 2 5A/240V AC 2 D (Transistor) D (Transistor) 24V AC/DC 024 24V AC/DC 024 110/120V AC &12-24V...

Open the catalog to page 4

Multi-function Multi-function Multi-function Front, X-types Front, TX-types DIN rail mounting 11-pole plug-in mounting > On delayOn pulse - without control switchSymmetrical recycler with pause startSymmetrical recycler with pulse start Release delayOn pulse - without control switchOn pulse - with control switchOff pulseOn-off pulse 7545 Asymmetrical recycler with pause startAsymmetrical recycler with pulse start TXM -S1230.L /E TXW -S1230.L /E TXT -S1230.LL /E > 4580 SD SD SD 5A/240V AC 1 5A/240V AC 1 5A/240V AC 1 5A/240V AC 2 5A/240V AC 2 5A/240V AC 2 Transistor: Max. 0.1A/30V DC Transistor:...

Open the catalog to page 5
