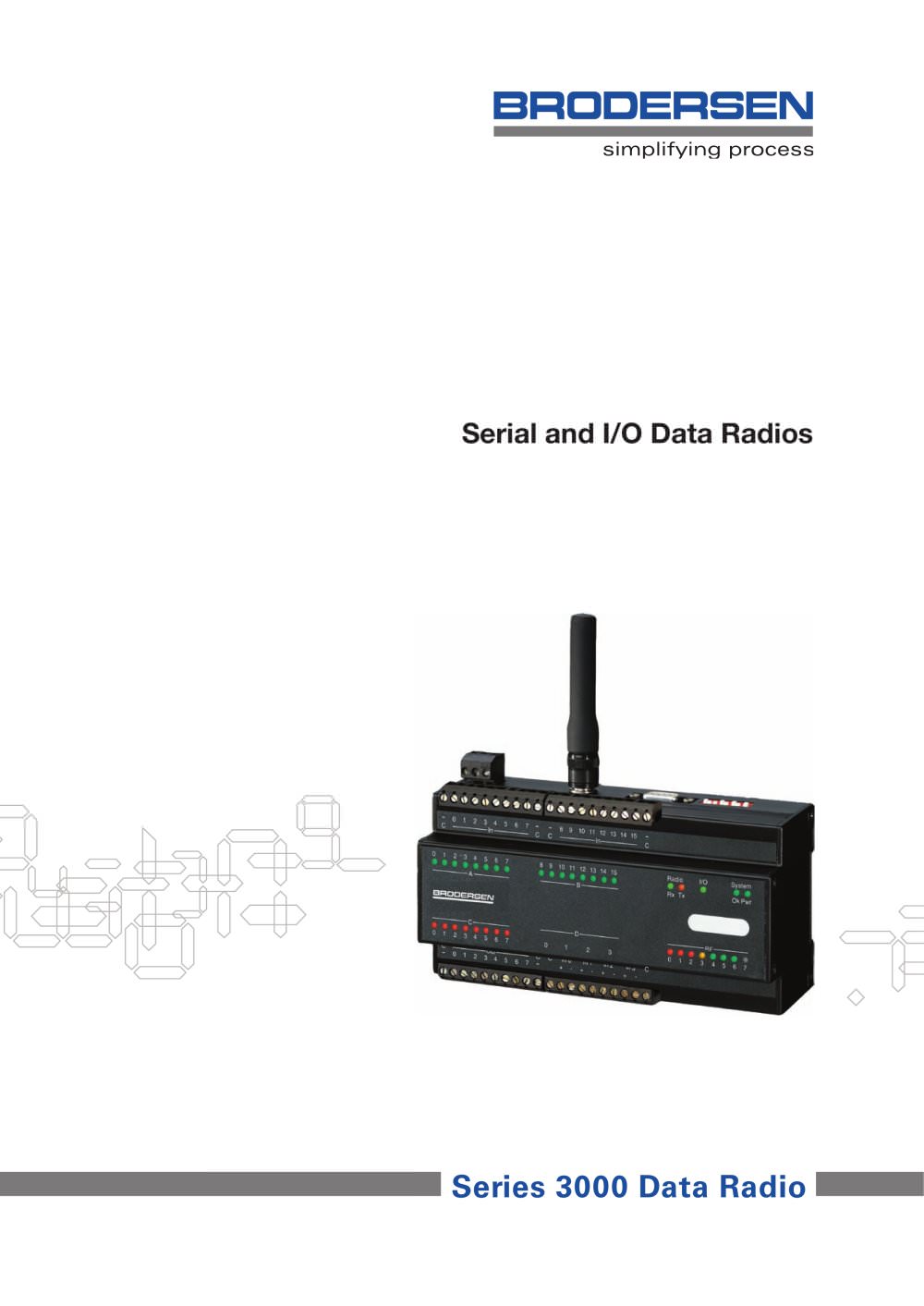

Data Radios Sales Brochure

Product catalog summary

Overview
Brodersen's Series 3000 Data Radios are designed for wireless communication in SCADA systems, remote RTUs, and PLCs. They support various industrial serial communication protocols, including ModbusRTU, Modnet-1F, 3964R, ASCII, and IEC60870. These radios are compatible with control equipment from manufacturers like Siemens, ABB, and Panasonic.

I/O Radio Modules
The I/O Radio Modules feature electrically isolated on-off and analogue I/Os. The standard version includes 16 on-off inputs, 8 on-off outputs, 4 analogue inputs with 12-bit resolution, 8 event counters, and 8 time totalisers. Up to 16 expansion modules can be added for flexible configurations.

Intelligent Communication Master Radio
The Communication Master Radio manages a complete radio system, including I/O radios, with a database accessible via Modbus. It supports repeater functions, making it suitable for daisy-chain applications like pipeline monitoring.

Product Specifications

UCW-50: ISM-band, 0.1 to 0.5 W output, 12 to 24 VDC, supports RS232, RS485, and various protocols.
UCW-xxIO/50: ISM-band, expandable I/O, ModbusRTU protocol.
UCW-600: 410-470 MHz, 0.1 to 6 W output, LED field strength display, supports master/slave configurations.
UCW-xxIO/600: 410-470 MHz, radio repeater function, expandable I/O.

Contact Information
Brodersen has offices in Denmark, Germany, and the United Kingdom, providing contact details for each location.
