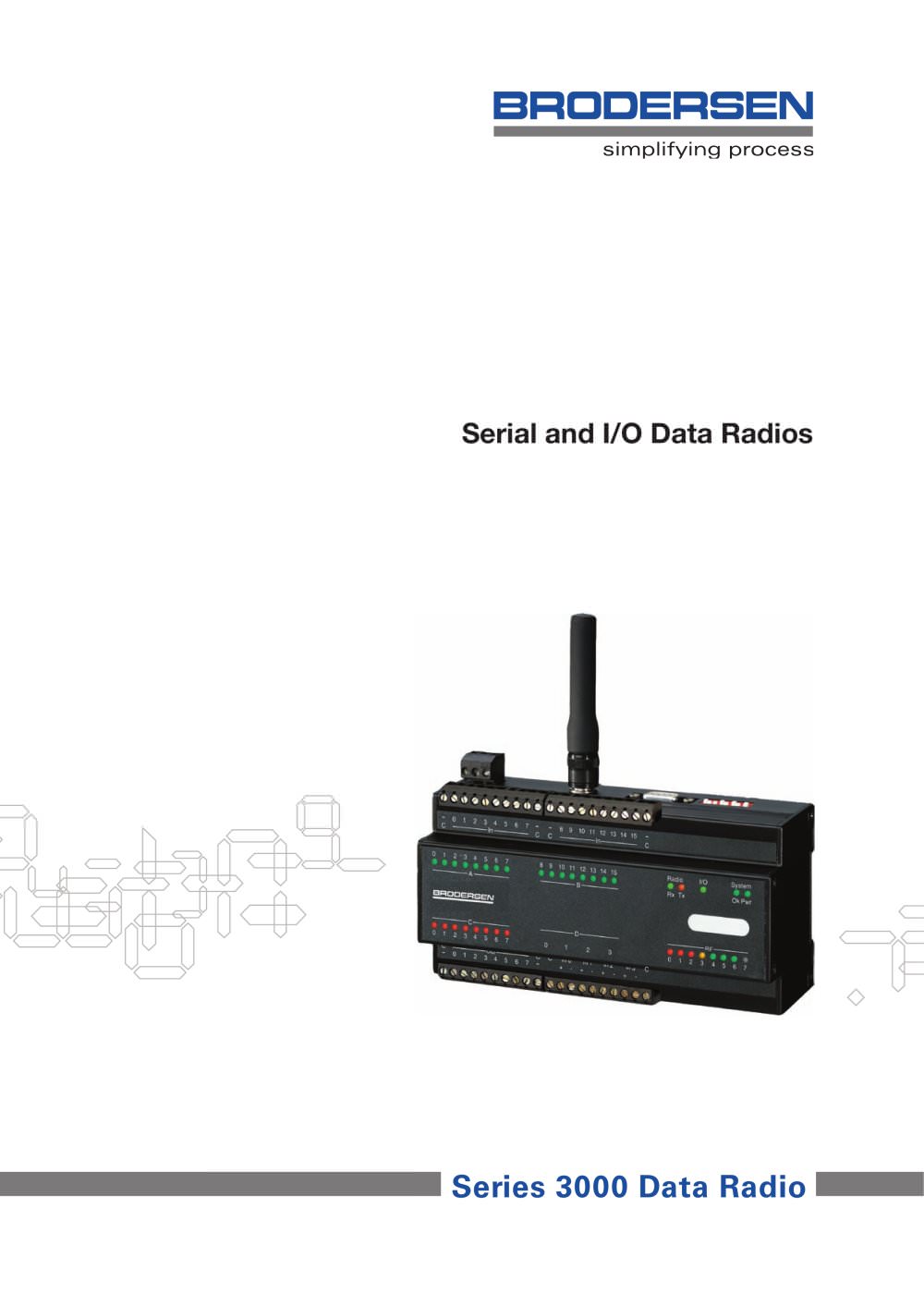

Serial and I/O Data Radios Series 3000 Data Radio >

If you require wireless communication between your SCADA system, remote RTUs and PLCs, Brodersens Radio modules is an obvious choice. Our radio modules support most industrial serial communication protocols such as ModbusRTU, Modnet-1F, 3964R, ASCII, transparent data transfer and IEC60870. Our radio modules are based on an open platform and have been integrated into networks involving control equipment manufactured by Siemens, ABB, Nais-Matsushita-Panasonic, Moeller and Saia to name a few. > The Brodersen Communication Master can easily handle a complete radio system including I/O radios....

Open the catalog to page 2

Example of a Radio Network with a mix of I/O Radios and RTUs/ PLCs and with local control and monitoring Example of an RTU or PLC Radio Network based on Master Station >

Open the catalog to page 3

RF RF Power I/O Comments Band Output [W] Supply [VDC] Serial Interface UCW-50 ISM-band 0.1 to 0.5 12 to 24 RS232, RS485 3694R, Modbus, IEC870, various communication protocols. UCW-xxIO/50 ISM-band 0.1 to 0.5 12 to 24 16DI, 8DO, 4AI ModbusRTU protocol, expandable I/O. UCW-50/M32 ISM-band 0.1 to 0.5 12 to 24 Flexible I/O I/O mirroring for up to 32 remote conlguring stations. UCW-50/M64 ISM-band 0.1 to 0.5 12 to 24 RS232, RS485 Modbus server station. UCW-600 410-470 Mhz 0.1 to 6 12 to 24 RS232, RS485 Master/slave unit with LED leld strength display, various comunication protocols. UCW-xxIO/600...
