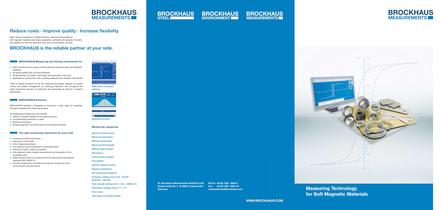

Measuring Technology for Soft Magnetic Materials Dr. Brockhaus Messtechnik GmbH & Co. KG Gustav-Adolf-Str 4 · D–58507 Lüdenscheid Germany Phone: +49 (0) 2351 3644-0 Fax: +49 (0) 2351 3644-44 measurements@brockhaus.com BROCKHAUS Measuring and Testing Instruments for Grain-oriented and non-grain-oriented electrical steel and other soft magnetic materials All quality grades (fully and semi-finished) All geometries e.g. sheets, coils, strips, punched parts, ring cores Applications in production lines, at testing stations and in research laboratories There is reliable provision for all the measuring processes required for quality control and quality management, at incoming inspection, and throughout the entire production process, in production and processing as well as in research laboratories. BROCKHAUS Software BROCKHAUS Software is designed to document a wide range of properties. Pre-sets accelerate the measuring process. All measuring processes are documented. Tabular or graphic display of the measured value Comprehensive evaluation of data Statistical evaluation Simple integration into QM systems and standard software The right measuring instrument for your task Compact portable instruments Laboratory instruments Inline measuring systems Coil systems and accessories for every application Individual custom-made coil systems Fully digitized, highly reliable measurement and evaluation of the measured value Measuring process in accordance with all national and international standards (IEC 60404 ff.) Flexible configuration of systems through the modular structure of the sensors and electronics Measuring categories Specific hysteresis loss Maximum polarization Effective polarization Maximum field strength Effective field strength Remanence Coercive field strength Permeability Specific apparent output Display of hysteresis DC measurement optional Frequency settings from 3 Hz – 20 kHz (optional – 100 kHz) Field strength settings from 1 A/m – 30000 A/m Polarization settings from 0.1 T – 2 T Form factor J(H) values for graphic display MPG Expert evaluation software Statistical function www.BROCKHAUS.COM Reduce costs Improve quality Increase flexibility Many years of experience in digital precision measuring technology for soft magnetic materials and close cooperation worldwide with experts in industry and research provide the assurance that only a market leader can give. BROCKHAUS is the reliable partner at your side.

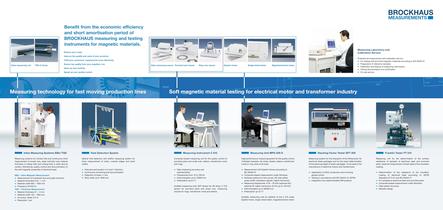

Measuring Unit MPG 200 D High performance-measuring system for the quality control of Epstein samples, slit strips, sheets, stators, transformer cores or ring cores of all sizes. Measurement with Epstein frames according to IEC 60404-ff. Computer-based measurement under Windows Software options for free curves, DC bias offset, pulse-width modulation signals, higher harmonics Measuring frequencies: 3 Hz – 20 kHz (optional DC), optional for higher harmonics 10 kHz up to 100 kHz Field strengths up to 30000 A /m Polarization up to 2 T Suitable measuring coils (in addition to the C 510 coils):...
