Overview: The BCM2004 is a Bluetooth transceiver optimized for use in QUALCOMM MSM-based wireless systems. It is compliant with Bluetooth versions 1.1, 1.2, and 2.0, and supports simultaneous operation with GPS, WCDMA, CDMA, and GSM/GPRS radios. The transceiver is implemented in digital CMOS and features fractional-N frequency generation technology for synthesizing industry-standard reference frequencies.

Specifications: The BCM2004 achieves a receiver sensitivity of -88 dBm under high interference conditions and provides up to +4 dBm output power. It supports Class 2 or 3 operation and features enhanced spurious emissions and cellular blocking performance. The device is fabricated in standard bulk CMOS and includes built-in self-calibration and temperature compensation.

Integration and Design: The transceiver includes a fully integrated RF front-end matching circuit, eliminating the need for external baluns and T/R switches. It supports operation from 1.8V to 4.6V and features advanced packaging options, including wafer scale chip size package and fine pitch ball grid array, to simplify integration into small form factor handsets.

Performance and Benefits: The BCM2004 offers low active power consumption and a single-digit standby current. It provides the highest level of system integration, eliminating all external active and critical components, thus reducing the total BOM cost. The device's small footprint minimizes board area and height requirements.

Control and Interface: The BCM2004 is controlled via a QUALCOMM proprietary baseband interface, which manages the chip's various sections, data transfers, and access to internal registers.

Catalog excerpts

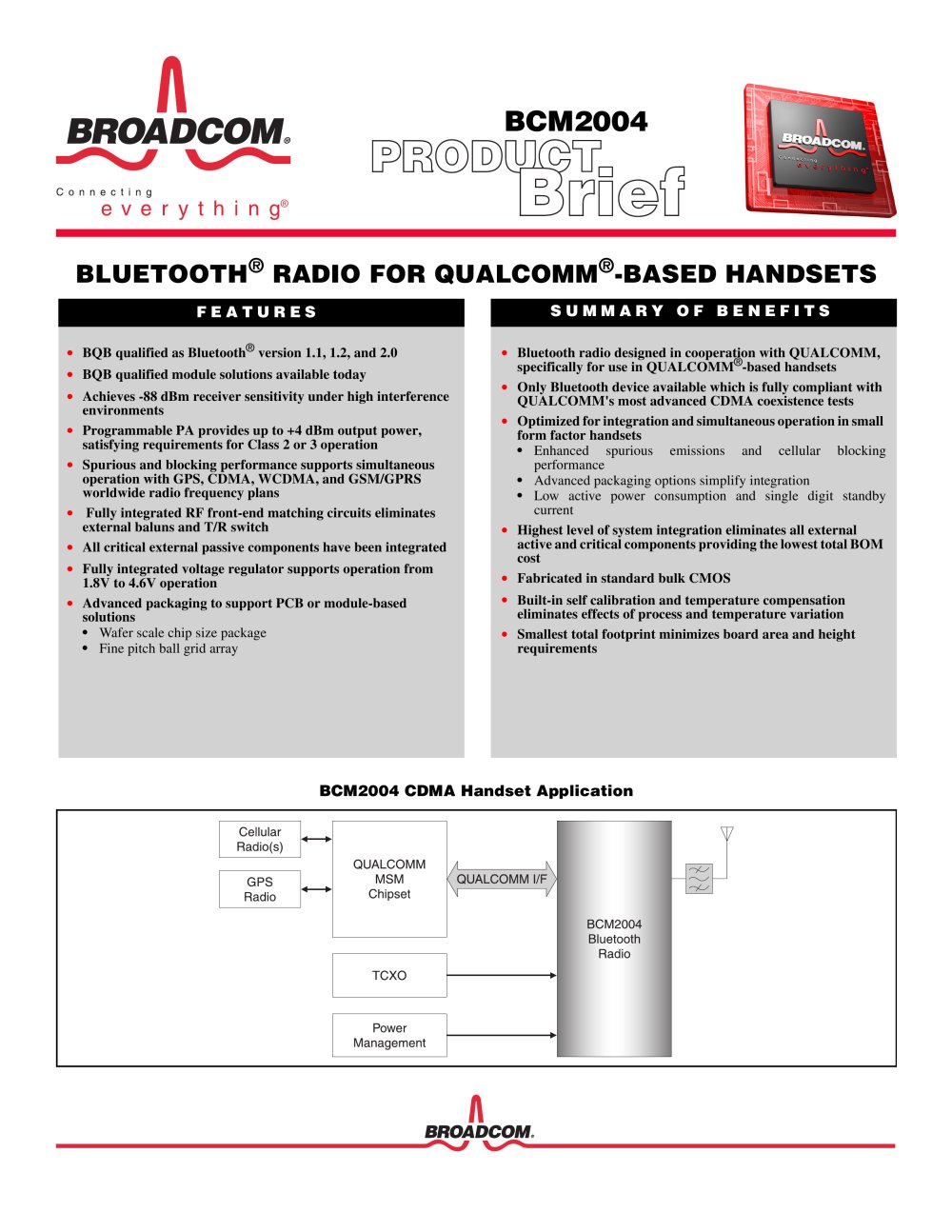

BQB qualified as Bluetooth > version 1.1, 1.2, and 2.0 > Bluetooth radio designed in cooperation with QUALCOMM, specifically for use in QUALCOMM > BQB qualified module solutions available today -based handsets > Achieves -88 dBm receiver sensitivity under high interference environments > Only Bluetooth device available which is fully compliant with QUALCOMM's most advanced CDMA coexistence tests > Programmable PA provides up to +4 dBm output power, satisfying requirements for Class 2 or 3 operation > Optimized for integration and simultaneous operation in small form factor handsets Enhanced spurious emissions and cellular blockingperformance > Spurious and blocking performance supports simultaneous operation with GPS, CDMA, WCDMA, and GSM/GPRS worldwide radio frequency plans Advanced packaging options simplify integration Օ Low active power consumption and single digit standbycurrent > Fully integrated RF front-end matching circuits eliminates external baluns and T/R switch > Highest level of system integration eliminates all external active and critical components providing the lowest total BOM cost > All critical external passive components have been integrated > Fully integrated voltage regulator supports operation from 1.8V to 4.6V operation > Fabricated in standard bulk CMOS > Advanced packaging to support PCB or module-based solutions > Built-in self calibration and temperature compensation eliminates effects of process and temperature variation Օ Wafer scale chip size package > Smallest total footprint minimizes board area and height requirements Օ Fine pitch ball grid array >
