Marlon CST Factsheet

Product catalog summary

Product Overview: Marlon CST Longlife is a corrugated multiwall polycarbonate sheet designed for various applications including industrial, leisure, horticulture, and agriculture. It features a 6mm triplewall structure, providing insulation and UV protection.

Specifications:

Profile: 177/51
Sheet Widths: 920mm, 1097mm, 1152mm
U-value: 3.3 W/m²K
Weight: 2 kg/m²
Light Transmission: Clear 79%, Opal 35-40%
Impact Resistance: Falling dart >27, Large body 1200J
Temperature Range: -20°C to +100°C
Thermal Expansion Coefficient: 6.7x10^-5 m/m°C

Key Features:

Longlife UV Protection
Excellent Fire Performance
Mitred Corner Option
Clear and Light Diffusing Finishes
Heat Sealed Ends
10-Year Light Transmission Warranty

Installation Guidelines:

Drill oversized holes (3mm per meter) to accommodate thermal movement.
Ensure mitres on Marlon CST and fibre cement sheets correspond.
Avoid overtightening fasteners to allow thermal movement.
Use sheets of equal length to fibre cement sheets on a roof.
Maintain proper purlin spacing according to loading.
Use compatible sealants and washers, preferably white.
Support sheets with foam fillers at each purlin position.
Not suitable for curved roof applications.
Use 25mm EPDM bonded washers (BAZ washer) for fasteners.
Clean dust from drilling holes in fibre cement sheets.
Fix primary fasteners through each crown at top and bottom end laps, and through alternate crowns on intermediate purlins.

Catalog excerpts

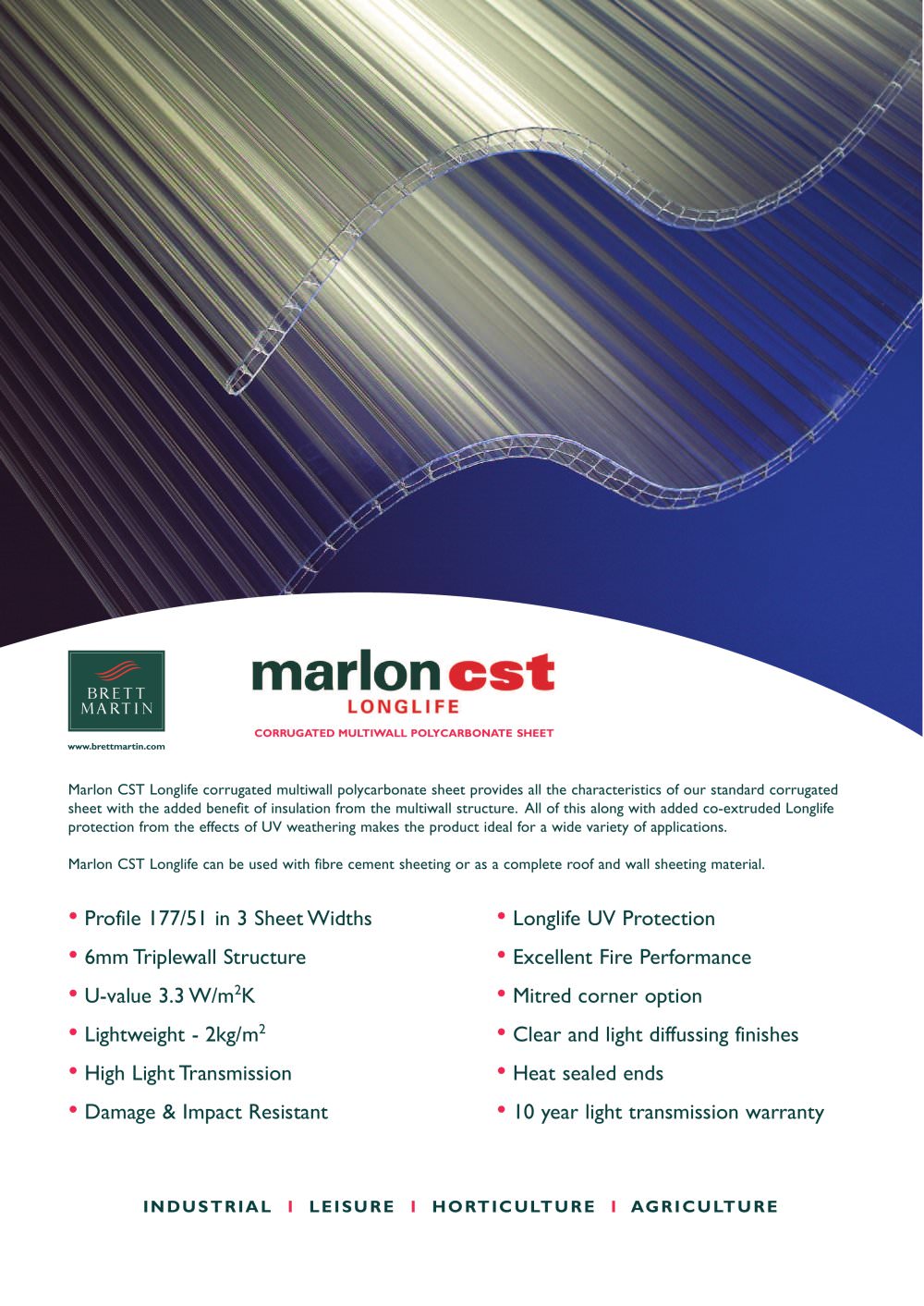

marlon LONGLIFE CORRUGATED MULTWALL POLYCAR BOMAT E SHEET Marlon CST Longlife corrugated multiwall polycarbonate sheet provides ail the characteristics of our standard corrugated sheet wilh the added benefϯt of msulation from the multiwall structure, AH of this along with added co-extruded Longlife protection from the effects of UV weathenng makes the product idal for a wide variety of applications. Marlon CST Longlife can be used with fibre cernent sheeting or as a complte roof and wall sheeting material. 騕 Profile 177/51 in 3 Sheet Widths 6mm Triplewall Structure Օ U-value 3.3W7m2K Lightweight - 2kg/m2 Օ High Light Transmission Damage & Impact Rթsistant ' Longlife UV Protection Excellent Fire Performance Օ Mitred corner option Clear and light diffussing finishes ■ Heat sealed ends Օ 10 year light transmission warranty INDUSTRIAL I LEISURE I HORTICULTURE I AGRICULTURE

Open the catalog to page 1

INSTALLATION GUIDELINES Marlon CST por/carbonate sheet expands consideraWy as tempratures rise and contracta as tempratures reduce. To accomodate thermal movement, h驴tes drilled for frxings MUST be oversized 3mm per meter sheet length. Ensure mitres on Marlon CST and fibre cernent jheets correspond. To allow thermal movement fasteners MUST NOT be overtightened. Use Marlon CST shcets of cqual length to the fibre cment sheets on a roof. Proper purlln spaccs MUST be maintalned appropriate to loading. Sealants and washers on fasteners MUST be compatible wtth pot/carbonate and should preferably be...
