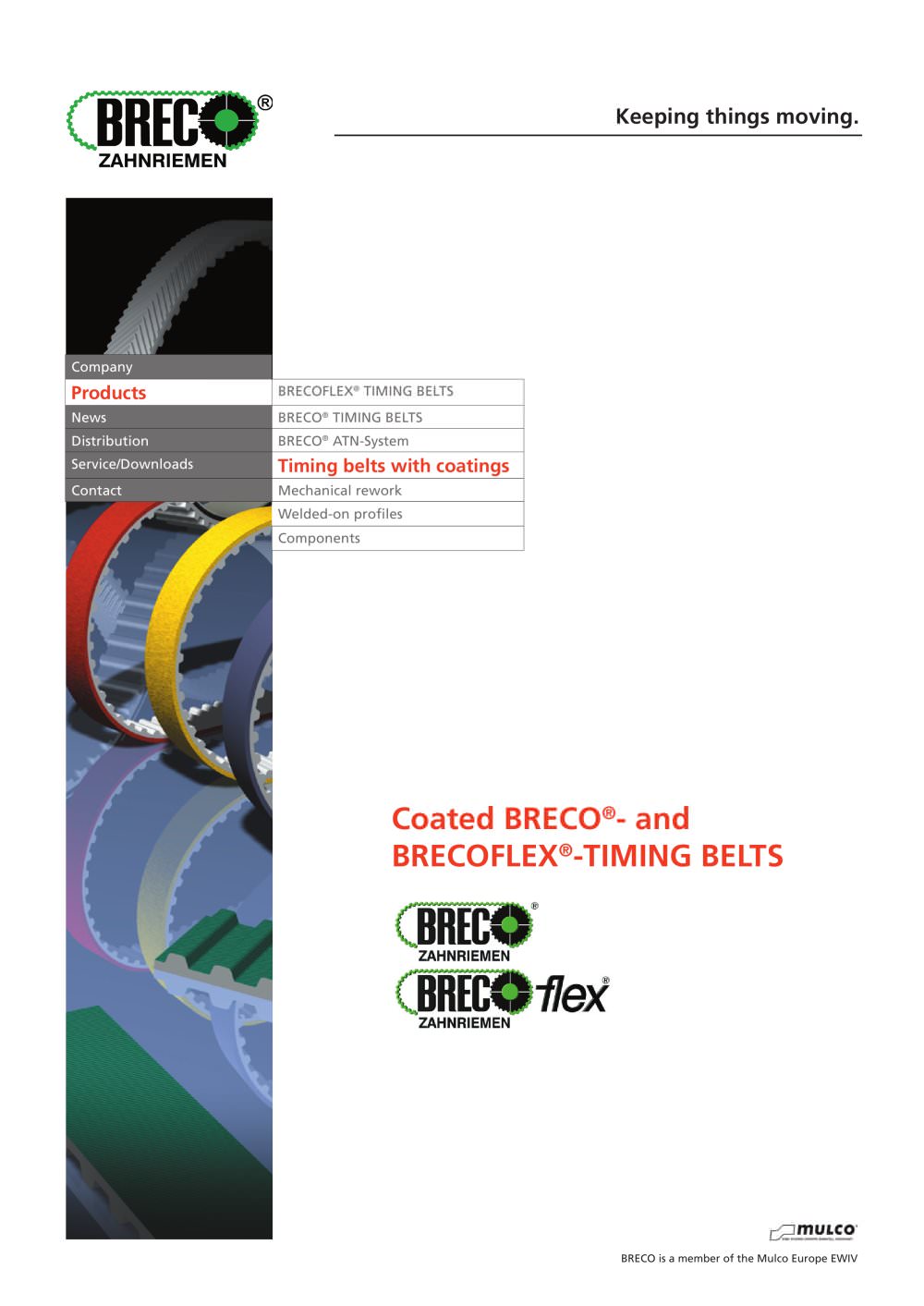

Keeping things moving. Company Products BRECOFLEX® TIMING BELTS News BRECO® TIMING BELTS Distribution BRECO® ATN-System Service/Downloads Timing belts with coatings Contact Mechanical rework Welded-on profi les Components Coated BRECO®- and BRECOFLEX®-TIMING BELTS BRECO is a member of the Mulco Europe EWIV

Keeping things moving. Page 2 May 2008 Coated polyurethane timing belts BRECO® and BRECOFLEX® TIMING BELTS consist of wear resistant polyurethane (PUR) and high tensile steel cord tension members. The coating of the timing belts with various materials provides a variety of application possibilities in the transport technology. The selection of the correct coating depends on the transport item properties and the required grip. High friction for a good carrying effect, low friction to reduce the power transmission performance, soft for sensitive items or hard for sharp-edged items are the...

-20 0 20 40 60 80 0 100 300 400 500 Beschichtungsdicke Durchmesser Temperatur (°C) Keeping things moving. Page 3 May 2008 Temperature infl uence If hot items (above approx. 80°C) are transported, ensure that the contact time is as short as possible to avoid heating of the belt substructure to over 80°C. A coated belt can resist a thermally higher load over short distances or a short period, prerequisite that being suffi cient cooling for the remaining circulation. The tooth shear strength is slightly reduced in a temperature range of over approx. 60°C. An additional security is only...

Keeping things moving. Page 4 May 2008 Properties Version T Colour transparent Material / Hardness Polyurethane / approx. 85 Shore A Temperature resistence -20°C to +80°C chemical Resistance resistant against simple oil and fats, petrol, ozone Application fi elds general transport tasks, transport of glass, sheet metal, transport of mechanically aggressiv parts Properties PU 385 Colour transparent Material / Hardness Polyurethane / approx. 85 Shore A Temperature resistence -20°C to +80°C chemical Resistance resistant against simple oil and fats, petrol, ozone Application fi elds general...

Keeping things moving. Page 5 May 2008 Properties NP 385 Colour transparent Material / Hardness Polyurethane / approx. 85 Shore A Temperature resistence -20°C to +80°C chemical Resistance resistant against simple oil and fats, petrol, ozone Application fi elds general transport tasks in wet areas, water, oil Properties FG 385 Colour transparent Material / Hardness Polyurethane / approx. 85 Shore A Temperature resistence -20°C to +80°C chemical Resistance resistant against simple oil and fats, petrol, ozone Application fi elds general transport tasks in wet areas, water, oil Properties PU 60...

Keeping things moving. Page 6 May 2008 Properties PU-yellow Colour yellow, grey (ohne Abbildung) Material / Hardness Polyurethane / approx. 55 Shore A (grey: approx. 45 Shore A) Temperature resistence -10°C to +70°C chemical Resistance resistant against simple oil and fats, not water resistant Application fi elds Vacuum transport belts subject to high loads, paper industry, textile industry, glass and wood industry Properties TT 60 Colour black Material / Hardness Polyester-fl eece Temperature resistence -10°C to +120°C chemical Resistance resistant against simple oil and fats,...

Keeping things moving. Page 7 May 2008 Properties Linatrile Colour orange Material / Hardness Vulcanized material based on nitrile, approx. 55 Shore A Temperature resistence -20°C to +110°C chemical Resistance resistant against oil, fats and other chemicals, water resistence Application fi elds haul-off belts in the textile area, transport of waxy materials Properties Linard 60 Colour red Material / Hardness Silica reinforced natural rubber, approx. 60 Shore A Temperature resistence -20°C to +110°C chemical Resistance resistant against simple oil and fats Application fi elds using by strong...

Keeping things moving. Page 8 May 2008 Properties Sylomer Colour yellow ((brown, blue, green, red, grey) (without picture)) Material / Hardness Elastomeric polyurethane, 150 g/m3; (brown 400 g/m3; blue 220 g/m3; green 300 g/m3; red 510g/m3; grey 680 g/m3;) Temperature resistence -30°C to +70°C chemical Resistance resistant against simple oil and fats Application fi elds Paper and textil industry, discharging belt conveyor, hugger belts Properties Sylodyn Colour green, yellow (without picture) Material / Hardness closed-cell Polyurethane, 600 g/m3 ; yellow 450 g/m3 Temperature resistence...

Keeping things moving. Page 9 May 2008 Properties Supergrip FDA Colour white Material / Hardness PVC, approx. 55 Shore A Temperature resistence -10°C to +110°C chemical Resistance resistant against oil and fats, acids and lyes Application fi elds Foodstuff industry (wet and moist areas), FDA approval, glass industry Properties Supergrip Colour blue, green (without picture) Material / Hardness PVC, approx. 40 Shore A Temperature resistence -15°C to +90°C chemical Resistance blue: not resistant against oil; green: resistant against simple oil and fats, acids and lyes Application fi elds well...

Keeping things moving. Page 10 May 2008 Properties Viton Colour black Material / Hardness FKM mix, approx. 70 - 80 Shore A Temperature resistence -10°C to +190°C (short term to 275°C) chemical Resistance good resistant against oil, fats, hydrocarbon, acids, opaque to gas and water vapour Application fi elds transport of sensitive parts, cardboard transport Properties NBR 65 Colour black Material / Hardness Nitributadien rubber, approx. 60 - 70 Shore A Temperature resistence -35°C to +70°C chemical Resistance resistant against oil, low resistance against acids and lyes Application fi elds...

Keeping things moving. Page 11 May 2008 Properties PAZ-PAR Colour green Material / Hardness Polyamide Temperature resistence -20°C to +50°C chemical Resistance resistant against simple oil and fats Application fi elds by usage of guide rails, accumulating conveyor Please ask for available material thicknesses.
