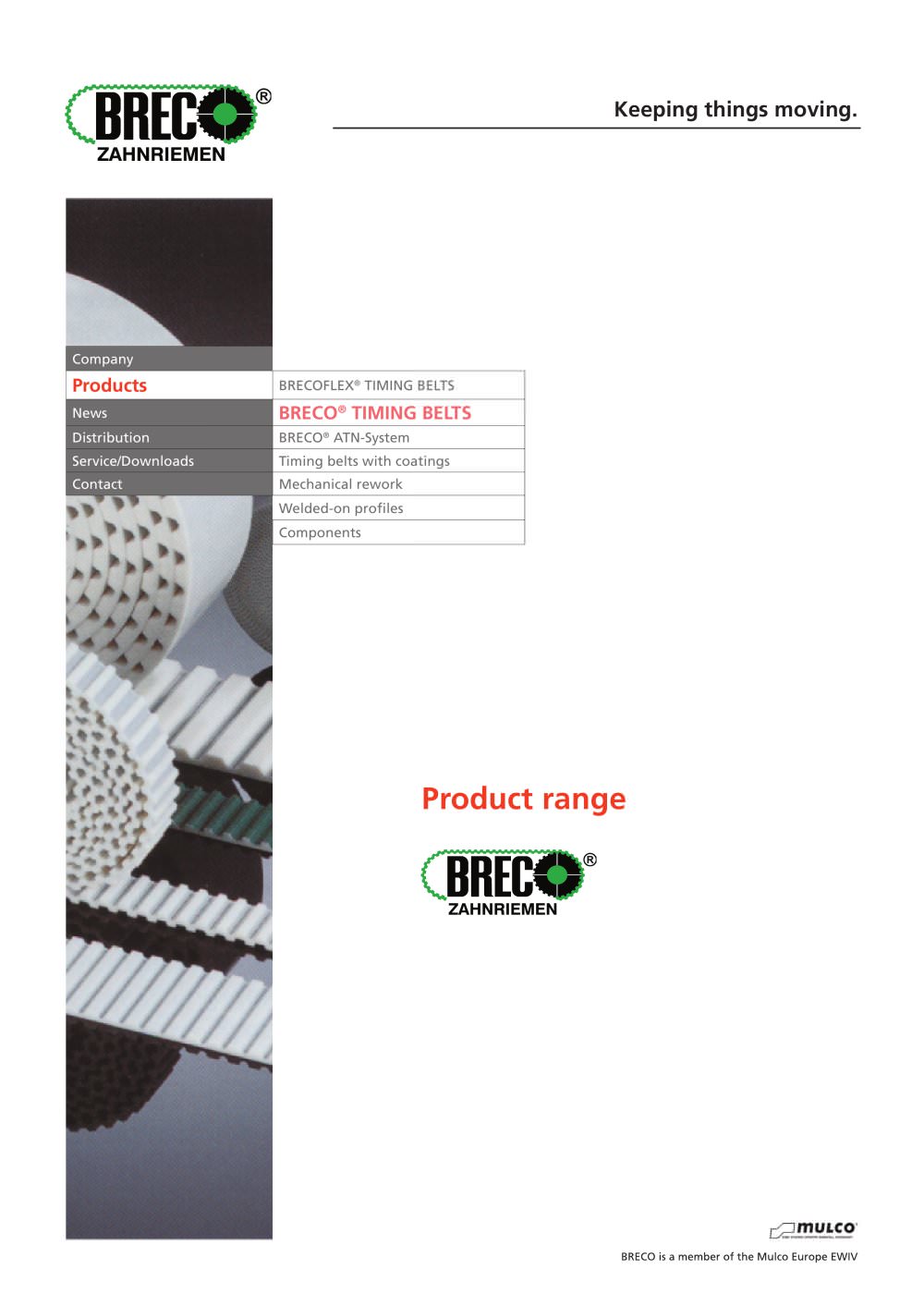

Keeping things moving. Product range Company Products BRECOFLEX® TIMING BELTS News BRECO® TIMING BELTS Distribution BRECO® ATN-System Service/Downloads Timing belts with coatings Contact Mechanical rework Welded-on profi les Components BRECO is a member of the Mulco Europe EWIV

Keeping things moving. Page 3 May 2008 BRECO M: Open length BRECO M: The BRECO® TIMING BELT is manufactured in open length. The tension members are always arranged with parallel edges. Open length is required e.g. in linear transmissions. All tension members assume part of the load. Open length for linear transmissions Rotary movements are converted into linear movements by linear transmissions. The BRECO® TIMING BELT in its open length delivery form is preferably fi tted to the machine part to be moved. BRECO V: Joined belts BRECO V: BRECO® TIMING BELTS are manufactured from open length...

16 25 32 50 ATL 5 ATL 10 32 50 75 100 Standard Standard Standard Standard Keeping things moving. Page 4 May 2008 Available versions (only available in open lengths (M)) • ATL 5: Standard (with E tension member) • PAZ: with nylon tooth facing ATL high performance timing belt (M) Available versions for ATL 10 (only available in open lengths (M)) • ATL 10: Standard • PAZ: with nylon tooth facing Preferred delivery: Rolls of 50 or 100 m. Please specify shorter dimensions (cut to length) and lengths above 100 m separately. Belt widths b [mm] (In-between belt widths on request) AT-profi le...

Standard Standard ATL 20 32 50 75 100 Keeping things moving. Page 5 May 2008 ATL high performance timing belt (M) Available versions for ATL 20 (only available in open lengths (M)) • ATL 20: Standard • PAZ: with nylon tooth facing Belt widths b [mm] (In-between belt widths on request) Preferred delivery: Rolls of 50 m. Please specify shorter dimensions (cut to length) and lengths above 50 m separately. AT-profi le

8 10 20 25 10 16 25 32 50 75 Standard Standard Standard Standard AT 3 AT 5 Keeping things moving. Page 6 May 2008 Available versions • AT 3: Standard (with E tension member) • PAZ: Nylon tooth facing Endless joined minimum length (V): 880 mm Available versions • AT 5: Standard (with E tension member) • PAZ: Nylon facing on the tooth side (PAZ) • PAR: Nylon facing on the back of the belt • PAZ-PAR: Nylon facing on both sides Endless joined minimum length (V): 880 mm AT-profi le AT-profi le Preferred delivery: Rolls of 50 and 100 m. Please specify shorter dimensions (cut to length) and...

25 32 50 75 100 150 Standard Standard 25 50 75 100 150 Standard Standard AT 10-T AT 10 ATS 15 Keeping things moving. Page 7 May 2008 Available versions • AT 10: Standard • E: with E tension member • PAZ: Nylon facing on the tooth side (PAZ) • PAZ-E: With nylon tooth facing and E tension member • PAR: Nylon facing on the back of the belt • PAZ-PAR: Nylon facing on both sides • T, T-PAZ: Transport backing, available up to bmax=100 mm Endless joined minimum length (V): 880 mm up to width b = 100 mm 1000 mm from b>100 mm up to b = 150 mm AT-profi le AT-profi le Preferred delivery: Rolls of 50...

Standard Standard 32 50 75 100 150 AT 20-T AT 20 Keeping things moving. Page 8 May 2008 AT-profi le Belt widths b [mm] (In-between belt widths on request) Available versions • AT 20: Standard • PAZ: Nylon tooth facing • PAR: Nylon facing on the back of the belt • PAZ-PAR: Nylon facing on both sides • T, T-PAZ: Transport backing available for a belt width up to bmax = 100 mm Endless joined minimum length (V): 1000 mm Preferred delivery: Rolls of 50 m. Please specify shorter dimensions (cut to length) and lengths above 50 m separately. AT high performance timing belt (M/V)

25 32 50 75 100 50 75 100 Standard Standard Standard Standard BAT 10 BAT 15 Keeping things moving. Page 9 May 2008 Available types for BAT 10 • BAT 10: Standard • PAZ: Nylon tooth facing • PAR: Nylon facing on the back of the belt • PAZ-PAR: Nylon facing on both sides Available versions for BAT 15 • BAT 15: Standard • PAZ: Nylon tooth facing • PAR:Nylon facing on the back of the belt • PAZ-PAR:Nylon facing on both sides Endless joined minimum length (V): 880 mm Endless joined minimum length (V): 960 mm Preferred delivery: Rolls of 50 or 100 m. Please specify shorter dimensions (cut to...

Standard Standard BATK 10 32 50 75 100 Standard Standard BATK 15 50 75 100 Keeping things moving. Page 10 May 2008 Self-guiding timing belts (M/V) Endless joined minimum length (V): 880 mm Available versions • BATK 10: Standard • PAZ: Nylon tooth facing • PAR:Nylon facing on the back of the belt • PAZ-PAR:Nylon facing on both sides Preferred delivery: Rolls of 50 or 100 m. Please specify shorter dimensions (cut to length) and lengths above 100 m separately. Belt widths b [mm] BATK-profi le BATK-profi le Endless joined minimum length (V): 960 mm Available versions • BATK 15: Standard • PAZ:...

50 75 100 50 75 100 Standard Standard Standard Standard SFAT 10 SFAT 20 Keeping things moving. Page 11 May 2008 Available versions • SFAT 10: Standard • PAZ: Nylon tooth facing • PAR: Nylon facing on the back of the belt • PAZ-PAR: Nylon facing on both sides Endless joined minimum length (V): 1500 mm Available versions • SFAT 20: Standard • PAZ: Nylon tooth facing • PAR: Nylon facing on the back of the belt • PAZ-PAR: Nylon facing on both sides Self-guiding timing belts (M/V) Endless joined minimum length (V): 880 mm SFAT-profi le SFAT-profi le Belt widths b [mm] (In-between belt widths on...

Standard Standard ATK 5 K6 32 50 Standard Standard ATK 10 K6 50 K 6 K 6 Keeping things moving. Page 12 May 2008 Self-guiding timing belts (M/V) Endless joined minimum length (V): 1000 mm Available versions for ATK5K6 • ATK5K6: Standard (with E tension member) • PAZ: Nylon tooth facing • PAR: Nylon facing on the back of the belt • PAZ-PAR: Nylon facing on both sides Endless joined minimum length (V): 1000 mm Available versions for ATK10K6 • ATK10K6: Standard • PAZ: Nylon tooth facing • PAR: Nylon facing on the back of the belt • PAZ-PAR: Nylon facing on both sides Preferred delivery: Rolls...
