VP series Vibratory Pick Scaling Head

VP series Vibratory Pick Scaling Head
2Pages

Catalog excerpts

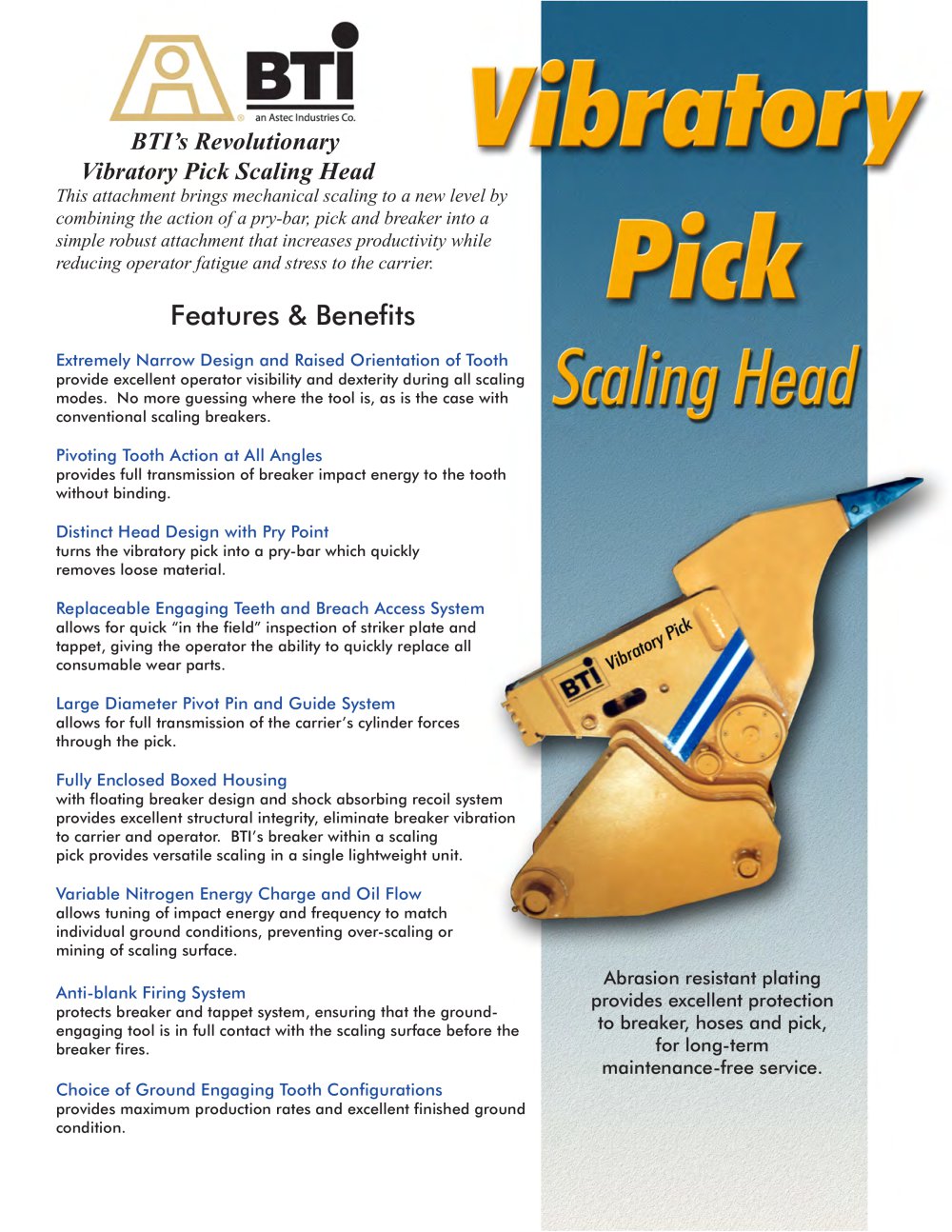

VP series Vibratory Pick Scaling Head - 1

BTI’s Revolutionary Vibratory Pick Scaling Head This attachment brings mechanical scaling to a new level by combining the action of a pry-bar, pick and breaker into a simple robust attachment that increases productivity while reducing operator fatigue and stress to the carrier. Features & Benefits Extremely Narrow Design and Raised Orientation of Tooth provide excellent operator visibility and dexterity during all scaling modes. No more guessing where the tool is, as is the case with conventional scaling breakers. Pivoting Tooth Action at All Angles provides full transmission of breaker impact energy to the tooth without binding. Distinct Head Design with Pry Point turns the vibratory pick into a pry-bar which quickly removes loose material. Replaceable Engaging Teeth and Breach Access System allows for quick “in the field” inspection of striker plate and tappet, giving the operator the ability to quickly replace all consumable wear parts. Large Diameter Pivot Pin and Guide System allows for full transmission of the carrier’s cylinder forces through the pick. Fully Enclosed Boxed Housing with floating breaker design and shock absorbing recoil system provides excellent structural integrity, eliminate breaker vibration to carrier and operator. BTI’s breaker within a scaling pick provides versatile scaling in a single lightweight unit. Variable Nitrogen Energy Charge and Oil Flow allows tuning of impact energy and frequency to match individual ground conditions, preventing over-scaling or mining of scaling surface. Anti-blank Firing System protects breaker and tappet system, ensuring that the groundengaging tool is in full contact with the scaling surface before the breaker fires. Choice of Ground Engaging Tooth Configurations provides maximum production rates and excellent finished ground condition. Abrasion resistant plating provides excellent protection to breaker, hoses and pick, for long-term maintenance-free service.

Open the catalog to page 1

VP series Vibratory Pick Scaling Head - 2

Vibratory Pick Scaling Head Attachment Flow Rate Operating Pressure Operating Frequency Impact Energy Operating Weight* Carrier Sizing Note: *Operating weight may differ depend- ing on final mounting configuration. BTI provides complete inverted boom kits for excavator mounting. Choice of ground engaging tooth configurations: provides maximum penetration for pre-splitting and quick ^Jc* |* removal of large loose areas such as seams. 5" Spade Tooth (standard): provides balanced width and vibration for limited penetra- tion into scaling surface for finishing of ribs and faces. provides...

Open the catalog to page 2
