TC SERIES HYDRAULIC COMPACTORS
2Pages

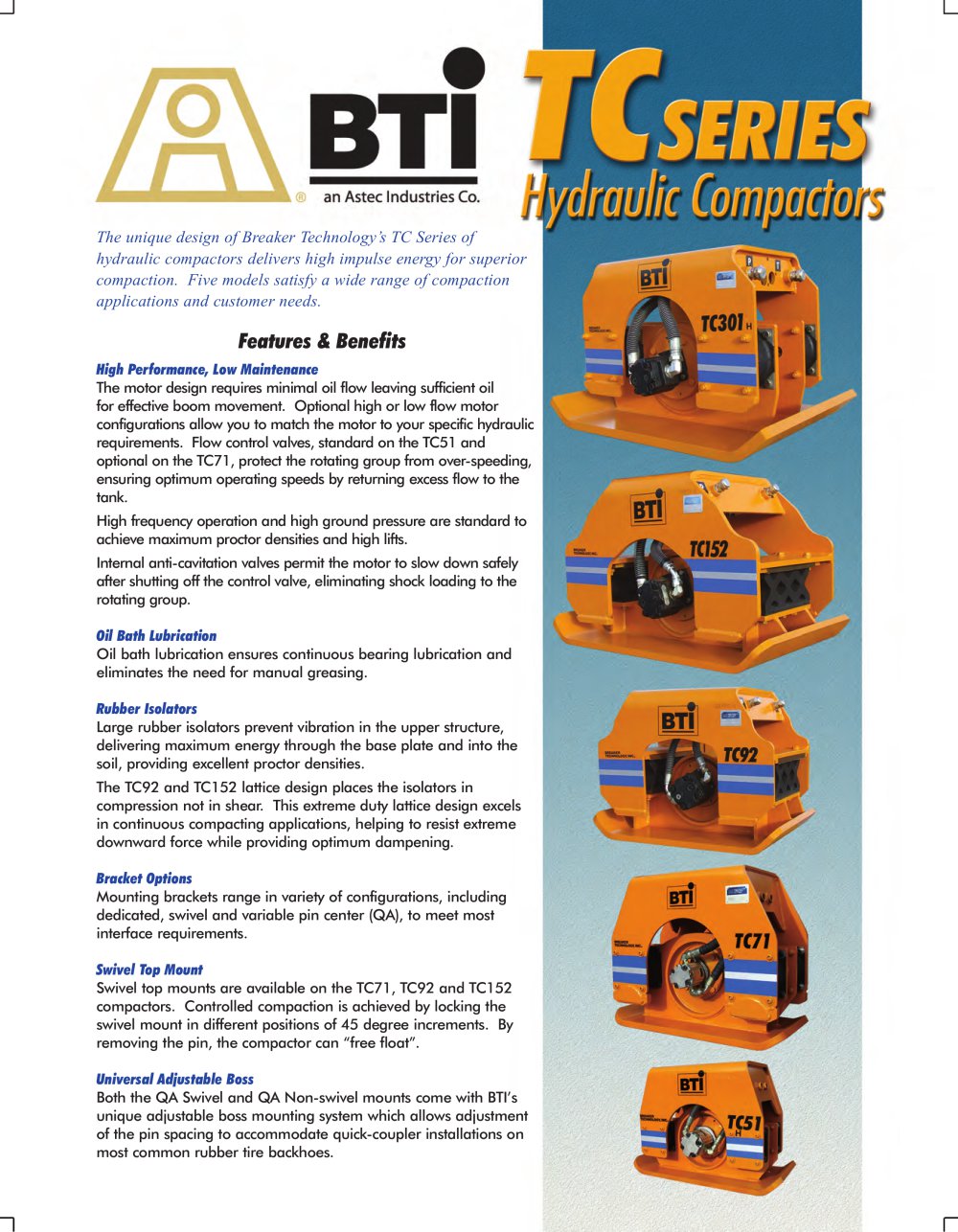

The unique design of Breaker Technology’s TC Series of hydraulic compactors delivers high impulse energy for superior compaction. Five models satisfy a wide range of compaction applications and customer needs. Features & Benefits High Performance, Low Maintenance The motor design requires minimal oil flow leaving sufficient oil for effective boom movement. Optional high or low flow motor configurations allow you to match the motor to your specific hydraulic requirements. Flow control valves, standard on the TC51 and optional on the TC71, protect the rotating group from over-speeding, ensuring optimum operating speeds by returning excess flow to the tank. High frequency operation and high ground pressure are standard to achieve maximum proctor densities and high lifts. Internal anti-cavitation valves permit the motor to slow down safely after shutting off the control valve, eliminating shock loading to the rotating group. Oil Bath Lubrication Oil bath lubrication ensures continuous bearing lubrication and eliminates the need for manual greasing. Rubber Isolators Large rubber isolators prevent vibration in the upper structure, delivering maximum energy through the base plate and into the soil, providing excellent proctor densities. The TC92 and TC152 lattice design places the isolators in compression not in shear. This extreme duty lattice design excels in continuous compacting applications, helping to resist extreme downward force while providing optimum dampening. Bracket Options Mounting brackets range in variety of configurations, including dedicated, swivel and variable pin center (QA), to meet most interface requirements. Swivel Top Mount Swivel top mounts are available on the TC71, TC92 and TC152 compactors. Controlled compaction is achieved by locking the swivel mount in different positions of 45 degree increments. By removing the pin, the compactor can “free float”. Universal Adjustable Boss Both the QA Swivel and QA Non-swivel mounts come with BTI’s unique adjustable boss mounting system which allows adjustment of the pin spacing to accommodate quick-coupler installations on most common rubber tire backhoes.

TC Series Hydraulic Compactors Minimum Carrier Size Maximum Carrier Size Minimum Flow Rate Maximum Flow Rate Operating Pressure @ Min. Flow 2 Operating Pressure @ Max. Flow 2 Max. Relief Valve Setting Recommended Relief Valve Setting for all models: Maximum Continuous Return Line Pressure for all models: Maximum Intermittent Return Line Pressure for all models: urn return line pressure at urn intermittent return line operating speed) during acceleration & braking) All dimensions and specifications are approximate and subject to change without notice. -L = Low Flow Motor -H = High Flow Motor...
