TB-XC SERIES BOXED BREAKERS

TB-XC SERIES BOXED BREAKERS
2Pages

Catalog excerpts

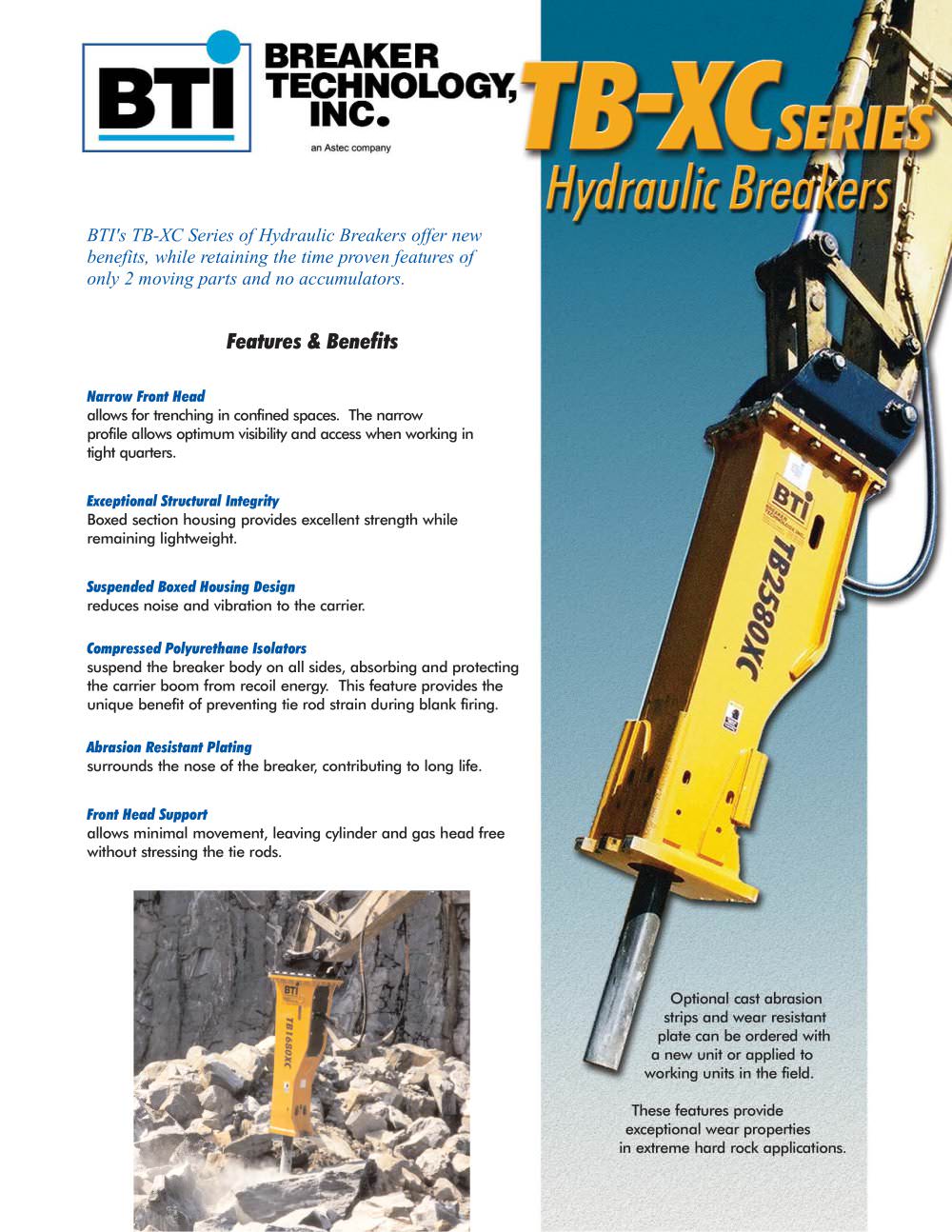

BTI's TB-XC Series of Hydraulic Breakers offer new benefits, while retaining the time proven features of only 2 moving parts and no accumulators. Features & Benefits Narrow Front Head allows for trenching in confined spaces. The narrow profile allows optimum visibility and access when working in tight quarters. Exceptional Structural Integrity Boxed section housing provides excellent strength while remaining lightweight. Suspended Boxed Housing Design reduces noise and vibration to the carrier. Compressed Polyurethane Isolators suspend the breaker body on all sides, absorbing and protecting the carrier boom from recoil energy. This feature provides the unique benefit of preventing tie rod strain during blank firing. Abrasion Resistant Plating surrounds the nose of the breaker, contributing to long life. Front Head Support allows minimal movement, leaving cylinder and gas head free without stressing the tie rods. Optional cast abrasion strips and wear resistant plate can be ordered with a new unit or applied to working units in the field. These features provide exceptional wear properties in extreme hard rock applications.

Open the catalog to page 1

TB-XC Series Hydraulic Breakers Top mount compresses the assembly, providing minimal movement Nylon wear plates are designed to fit tight on all four sides Polyurethane isolator blocks on top and bottom absorb vibration Narrow bottom with abrasion resistant wear plate and rock claws Large inspection covers provide access to maintenance items Breaker Specifications ft-lbs lbs kg Flow Range gpm l/min Pressure Range psi bar Frequency Range bpm Overall Height in mm Tool Diameter in mm Working Length of Tool in mm Recommended Carrier Weight lbs kg AEM (CIMA) Ratings Impact Energy ft-lbs joules...

Open the catalog to page 2
