MCP series Hydraulic pulverizers

MCP series Hydraulic pulverizers
2Pages

Catalog excerpts

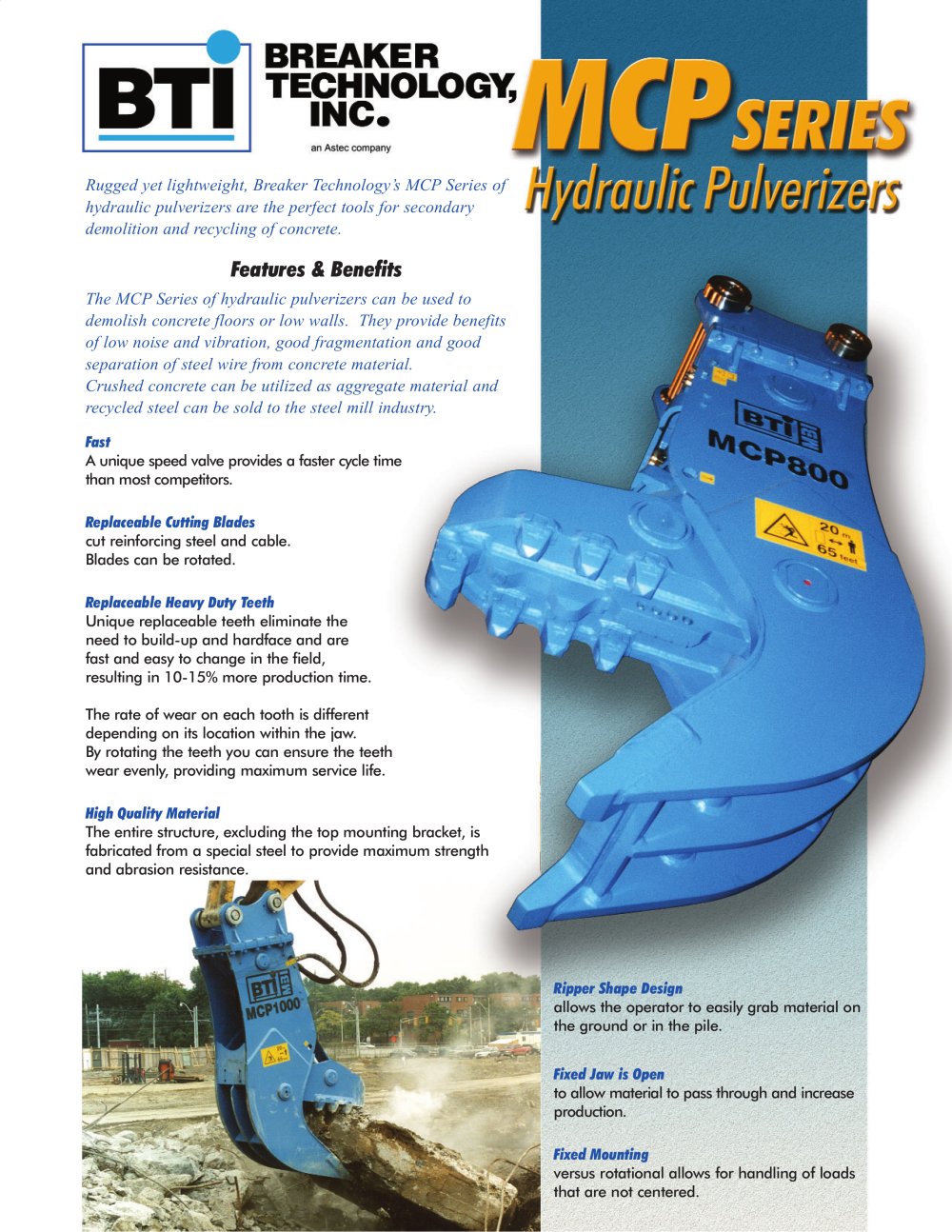

Rugged yet lightweight, Breaker Technology’s MCP Series of hydraulic pulverizers are the perfect tools for secondary demolition and recycling of concrete. Features & Benefits The MCP Series of hydraulic pulverizers can be used to demolish concrete floors or low walls. They provide benefits of low noise and vibration, good fragmentation and good separation of steel wire from concrete material. Crushed concrete can be utilized as aggregate material and recycled steel can be sold to the steel mill industry. Fast A unique speed valve provides a faster cycle time than most competitors. Replaceable Cutting Blades cut reinforcing steel and cable. Blades can be rotated. Replaceable Heavy Duty Teeth Unique replaceable teeth eliminate the need to build-up and hardface and are fast and easy to change in the field, resulting in 10-15% more production time. The rate of wear on each tooth is different depending on its location within the jaw. By rotating the teeth you can ensure the teeth wear evenly, providing maximum service life. High Quality Material The entire structure, excluding the top mounting bracket, is fabricated from a special steel to provide maximum strength and abrasion resistance. Ripper Shape Design allows the operator to easily grab material on the ground or in the pile. Fixed Jaw is Open to allow material to pass through and increase production. Fixed Mounting versus rotational allows for handling of loads that are not centered.

Open the catalog to page 1

MCPSeries Hydraulic Pulverizers 10289-ENG-0306 Replaceable Teeth Configuration General Specifications MCP800 MCP910 MCP1000 Weight (includes standard coupler) 4,519 lbs 6,283 lbs 8,378 lbs 2,050 kg 2,850 kg 3,800 kg Working Pressure Range 4,061-4,641 psi 4,061-4,641 psi 4,061-4,641 psi 280-320 bar 280-320 bar 280-320 bar Oil Flow 48-58 gpm 58-74 gpm 74-85 gpm 180-220 lpm 220-280 lpm 280-320 lpm Open Time 2.26 seconds 2.74 seconds 3.36 seconds Close Time 2.28 seconds 2.94 seconds 3.50 seconds Cycles/min at Maximum Oil Flow 13.2 cycles 10.6 cycles 8.7 cycles Cylinder Output 145 tons 157 tons...

Open the catalog to page 2
