HS series Hydraulic shears

HS series Hydraulic shears
2Pages

Catalog excerpts

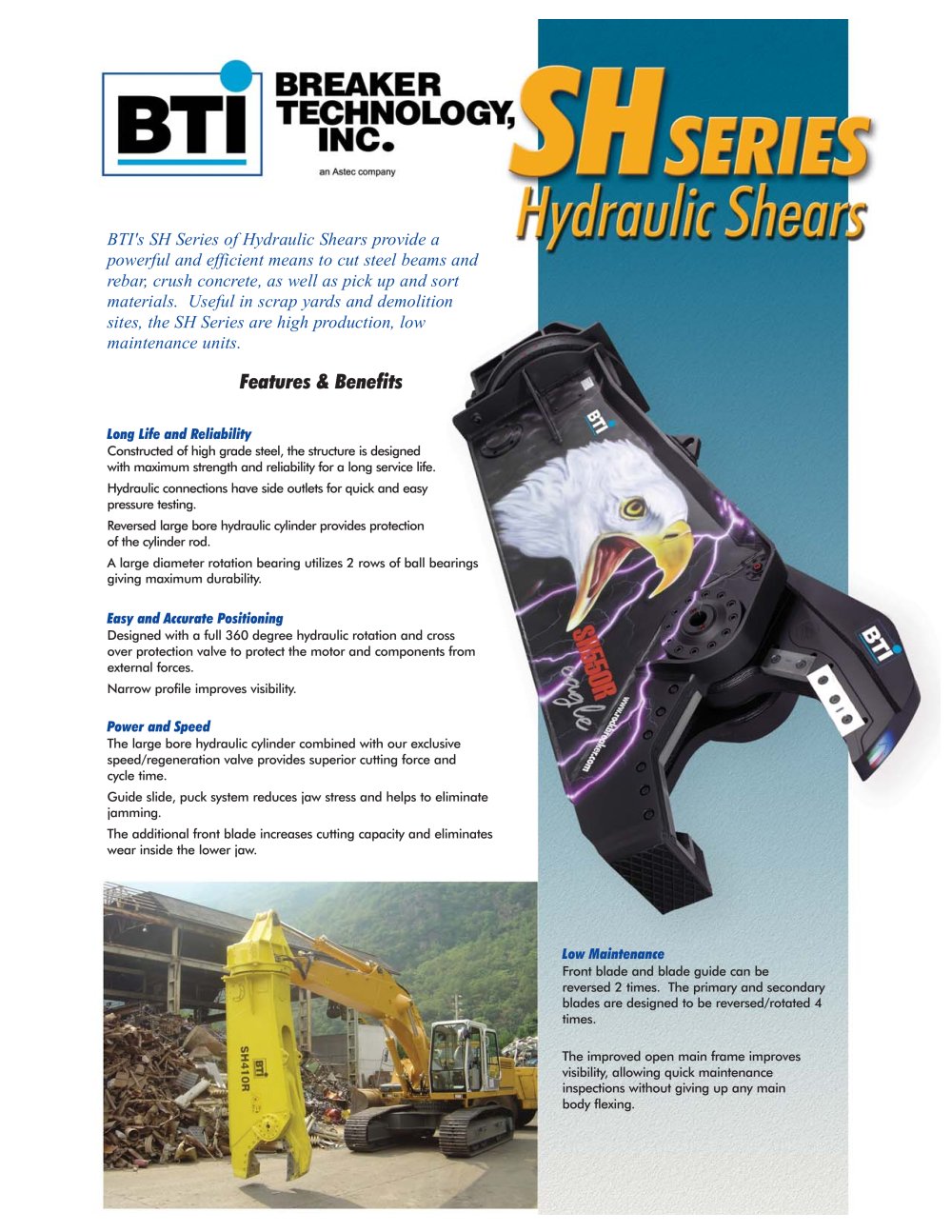

BTI's SH Series of Hydraulic Shears provide a powerful and efficient means to cut steel beams and rebar, crush concrete, as well as pick up and sort materials. Useful in scrap yards and demolition sites, the SH Series are high production, low maintenance units. Features & Benefits Long Life and Reliability Constructed of high grade steel, the structure is designed with maximum strength and reliability for a long service life. Hydraulic connections have side outlets for quick and easy pressure testing. Reversed large bore hydraulic cylinder provides protection of the cylinder rod. A large diameter rotation bearing utilizes 2 rows of ball bearings giving maximum durability. Easy and Accurate Positioning Designed with a full 360 degree hydraulic rotation and cross over protection valve to protect the motor and components from external forces. Narrow profile improves visibility. Power and Speed The large bore hydraulic cylinder combined with our exclusive speed/regeneration valve provides superior cutting force and cycle time. Guide slide, puck system reduces jaw stress and helps to eliminate jamming. The additional front blade increases cutting capacity and eliminates wear inside the lower jaw. Low Maintenance Front blade and blade guide can be reversed 2 times. The primary and secondary blades are designed to be reversed/rotated 4 times. The improved open main frame improves visibility, allowing quick maintenance inspections without giving up any main body flexing.

Open the catalog to page 1
