Overview

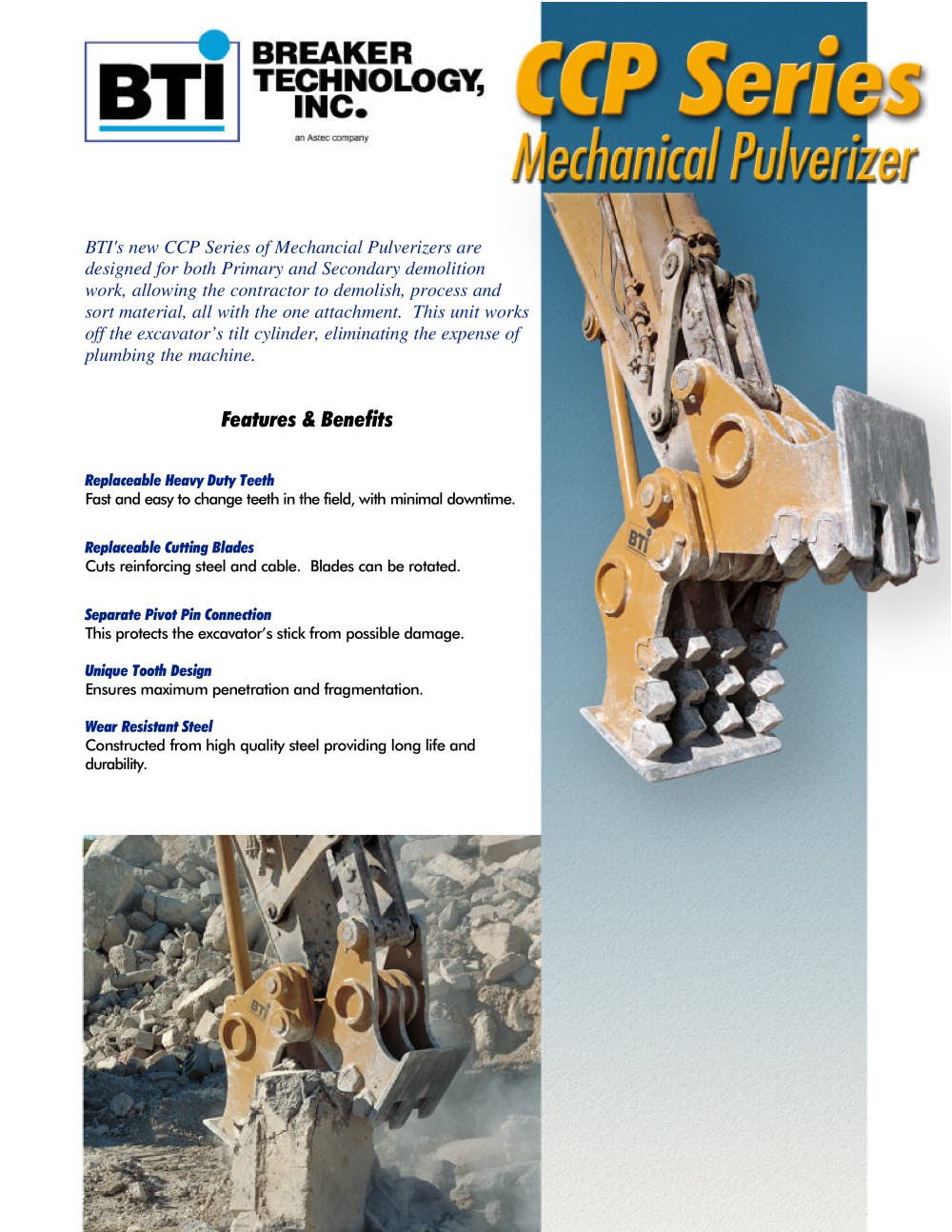

BTI's new CCP Series of Mechanical Pulverizers are designed for both primary and secondary demolition work. These attachments allow contractors to demolish, process, and sort materials using the excavator's tilt cylinder, eliminating the need for additional plumbing.

Features & Benefits

• Replaceable Heavy Duty Teeth: Teeth can be changed quickly in the field, minimizing downtime.
• Replaceable Cutting Blades: Capable of cutting reinforcing steel and cable, with blades that can be rotated.
• Separate Pivot Pin Connection: Protects the excavator's stick from potential damage.
• Unique Tooth Design: Ensures maximum penetration and fragmentation.
• Wear Resistant Steel: Constructed from high-quality steel for long life and durability.

Specifications
All dimensions and specifications are approximate and subject to change. They vary depending on the size and model of the carrier used.

Unique Replaceable Tooth System

• BTI’s design allows each tooth to be easily replaced or changed in the field.
• Replaceable teeth eliminate the need for building up and hardfacing, increasing production time by 10-15%.
• Teeth wear differently based on their location within the jaw, and rotating them ensures even wear and maximum service life.
• The arrangement of teeth provides maximum penetration, and the jaws mesh past each other to pulverize concrete, leaving reinforcing steel clean and separated.

General Specifications

Specification	CCP900	CCP1000
Weight (lbs)	4,500	6,200
Jaw Opening (inches)	42	48
Force @ Outer Tip (tons)	52	80
Approx. Open Time (seconds)	2.5	2.6
Approx. Close Time (seconds)	5.1	5.8
Jaw Depth (inches)	28	35
Jaw Width - upper moveable (inches)	22	29
Jaw Width - lower fixed (inches)	32	38
Cutter Length (inches)	7	7
Number of Teeth	19	19
Recommended Carrier Range (lbs)	65,000-88,000	88,000-120,000

Contact Information
Breaker Technology, Inc. and Breaker Technology Ltd. provide contact details for their offices in the Western US & Mexico, Eastern US, and Canada & International.
