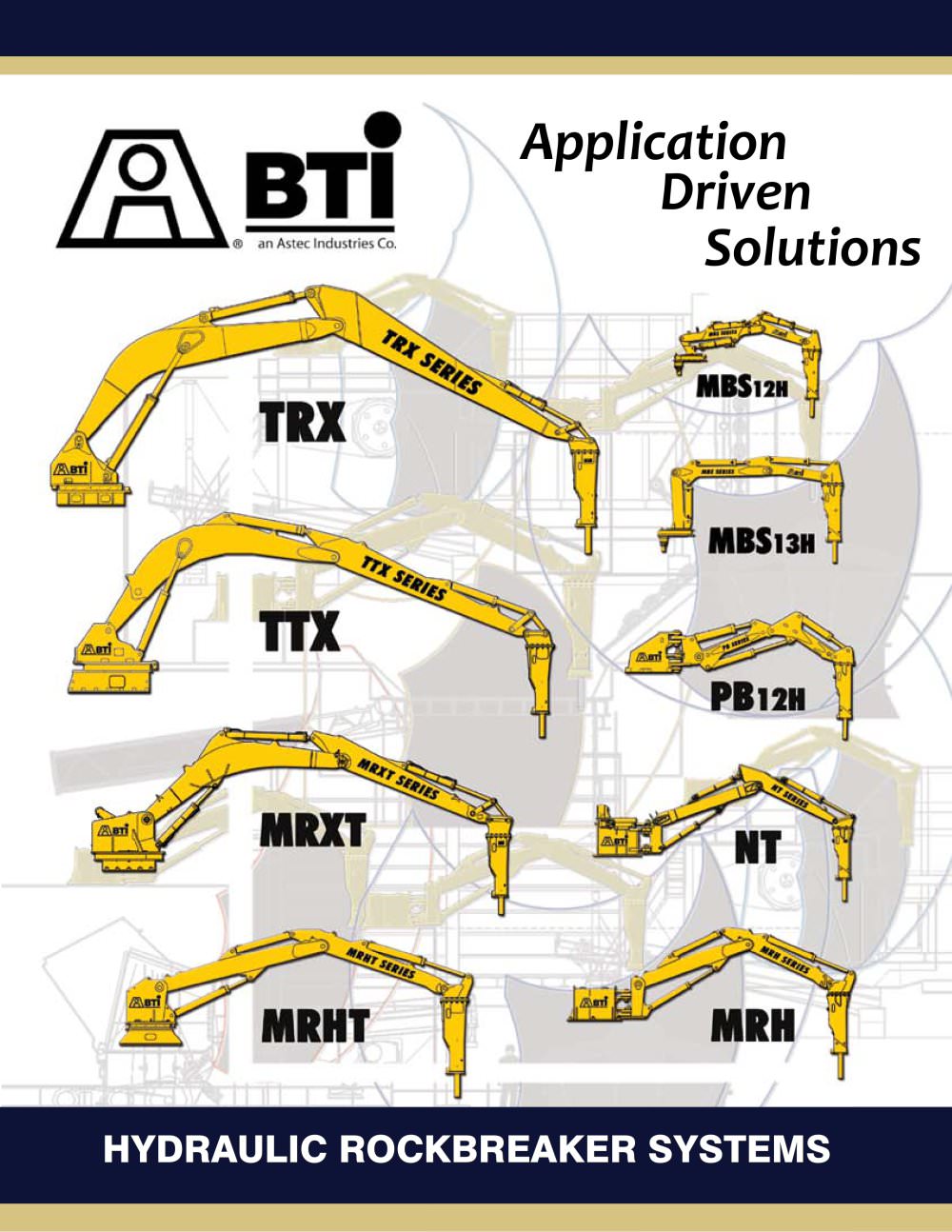

Application Driven Solutions HYDRAULIC ROCKBREAKER SYSTEMS

SIZING THE BOOM & HAMMER BTI (Breaker Technology) has been supplying products and services specifically designed to meet the demanding needs of mining and quarry industries since 1958. Our experience has taught us that information and partnerships combined with high quality equipment provide the best results. As such it’s vital to consider several important factors when choosing your next pedestal rock breaker system. Breaker Class Breaker power required is determined by the hardness, toughness and size of material to be broken. The size of your crusher or grizzly also affects the selection...

Mobile crushers are, as the name implies, designed to be moved from site to site. An appropriate sized breaker system will mount on the crusher securely so the crusher can be moved without first dismantling the breaker assembly yet be large enough to handle the raking and breaking. Jaw crushers and impact jaw crushers are most often fed from a rock box using a vibratory feeder. A rock breaker should be positioned to assist with raking rocks into the crusher, reduce oversize, and to be able to reach into the crusher to assist with processing and clearing jams.

Grizzly applications are extremely harsh by nature. The boom is subject to high degrees of in-line and side raking, combined with various sizes and amounts of oversize. BTI’s grizzly booms are designed with wide boom cross sections, extra large pins and reinforced high tensile steel plates. All designed to handle complex loading to the boom. Big jobs need big booms and breakers. BTI’s wide range of gyratory booms allow full breaker coverage within the rock box and mouth of the Crusher. BTI’s complete line of large hammers are designed specifically for gyratories to quickly eliminate any...

POWER PACKS Power Pack Model MRH/MRHT MRXT MRH/MRHT MRXT Reservoir Volume US Gal (Litre) Power Pack Model Reservoir Volume US Gal (Litre) POWER PACK OPTIONS Standard Equipment • Swash plate piston pumps with load sense / constant horsepower control Extra heavy duty all welded construction suitable from high vibration applications • Pressurized fill cap with air filtration • Suction strainers (on larger models) • Full flow pressure filter with visual indicator • Full flow return filter with visual indicator • Flooded pump inlet • Clean out / inspection cover • Fluid level indication • Fluid...

Energy Class ft-lb (Joule) Impact Frequency Operating Pressure Working Weight tool Diameter Energy Class ft-lb (Joule) Impact Frequency Operating Pressure Working Weight tool Diameter Side Mount SIZING A BREAKER Jaw Crusher Sizing Chart BX40 Jaw Size 300 Tons per Hour Production 5 10 Tons per Hour Oversize Top Mount c/w Severe Duty Box Housing & Concave Removal Tool Impactor Inlet Size 300 Tons per Hour Production Gyratory Sizing Chart Impact Crusher Sizing Chart These charts provide only a rough calculation. Contact BTI for assistance in sizing your breaker. Grizzly Sizing Chart Gyratory...
