Full Product Line Brochure
6Pages

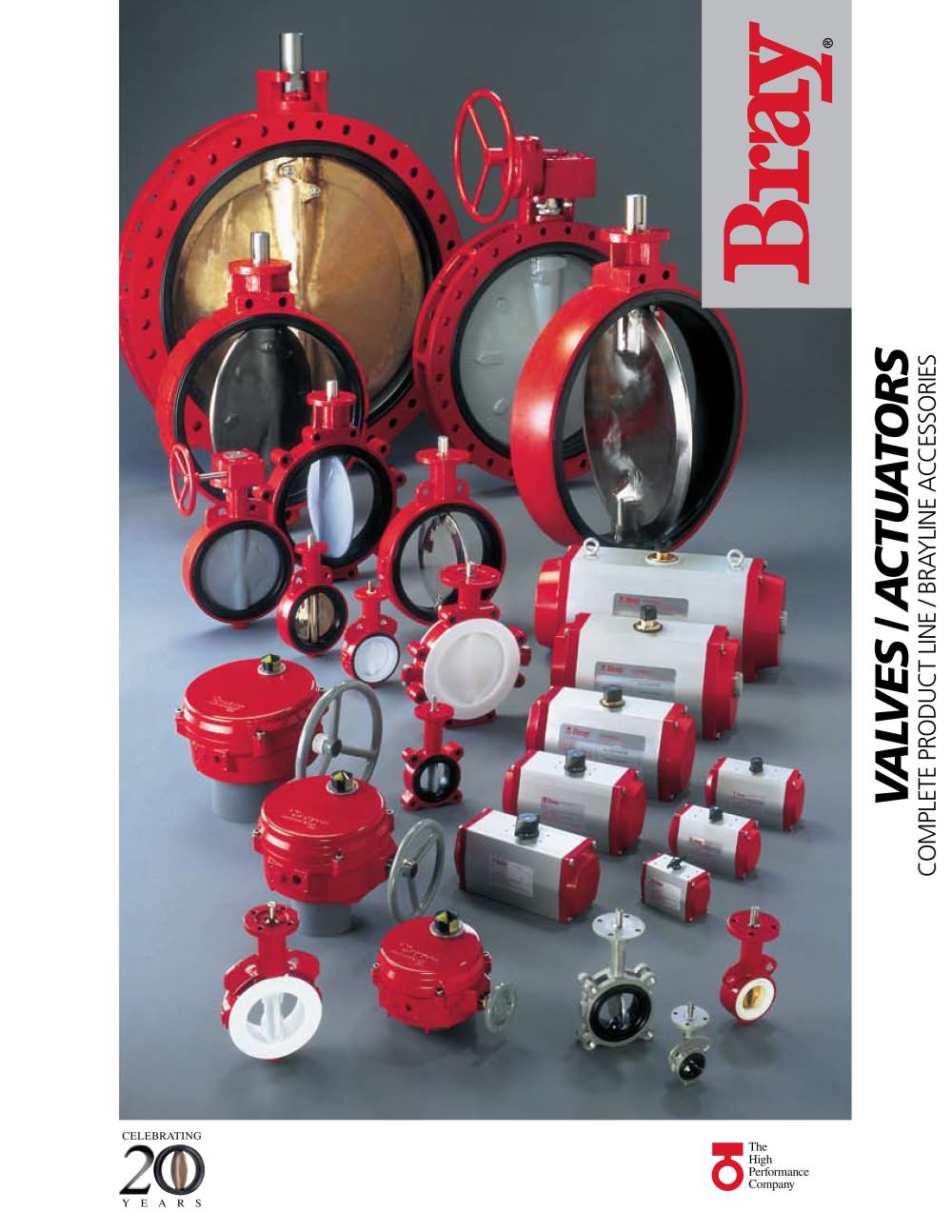

VALVES / ACTUATORS COMPLETE PRODUCT LINE / BRAYLINE ACCESSORIES >

tongue-and-groove seat design which provides complete isolation of flowing media from the body and stem by a totally encasing design. Most standard bodies are epoxy coated ensuring excellent corrosion and wear resistance to the valves surface. All Bray valves have extended necks which allow for at least 2" piping insulation. Valve mounting top flanges meet ISO 5211 standards for direct mounting of manual operators and power actuators. Wafer, lug and double flanged bodies are offered. All meet ANSI Class 125/150 flange standards. RESILIENT SEATED Bray Controls offers a complete line of...

SERIES 35/36 Large diameter double flanged valve. Features a through-stem design with ad- justable packing and bubble-tight shutoff. The Series 35 valve is rated 75 psi (5 bar), and the Series 36 is rated 150 psi (10 bar). 24"-72"(600mm-1800mm) SERIES 32/33 Large diameter economical wafer valve. The Series 32 valve is rated 75 psi (5 bar), and the Series 33 valve is rated 150 psi (10 bar). [Photo not shown]. 24"-36"(600mm-900mm) SERIES 30/31 2"-20" (50mm-500mm) Brays general purpose valve. This valve has a high strength through-stem design. Its precision double ғD disc to stem con- nection...

SERIES 5 DECLUTCHABLE GEAR OPERATOR Available for 2"-36" (50mm-900mm) valves, the Series 5 offers the same superior features as the Series 4 gear operator with the added ability to manually override pneumatic actuators or rotate the valve when air pressure is not available. During pneumatic operation of the valve, the worm of the gear unit is disengaged. Should the valve require opening or closing in the event of power loss, manual rotation of the declutch lever will provide a camming action and engage the worm to the segmented worm gear. Reverse rotation of the lever disengages the unit....

SERIES 92/93 PNEUMATIC Bray pneumatic actuators are rack and pinion, opposed-piston actuators available in two ver- sions: double acting and spring return. Series 92/93 actuators feature two independently adjust- able travel stop screws and a cam on the output shaft to permit pre- cise bidirectional adjustment of movement in both the open and closed positions for quarter turn valves. They have a maximum pressure rating of 140 psi (10 bar) and a temperature range of -40F (-40аC) to +200F (+95аC). Brays unique acetal piston guides and rings have a very low coefficient of friction and absorb...

SERIES 52 VALVE STATUS MONITOR The Bray 2N1 ProxSensor provides 2 proximity sensors in 1 self-contained, fully sealed, compact enclosure. The sensors are completely encapsulated with epoxy resin in a polymer enclosure for superior moisture, chemical and corrosion protection. AC, DC, Intrinsically Safe and BUS Network versions are offered. Features include LED indicators, high visibility pointer for local position indication, non-magnetic targets and multi-pin electrical cable connector. A Valve Position Display is available as an option. AC Sensor units operate on 20-250 VAC with a maximum...
