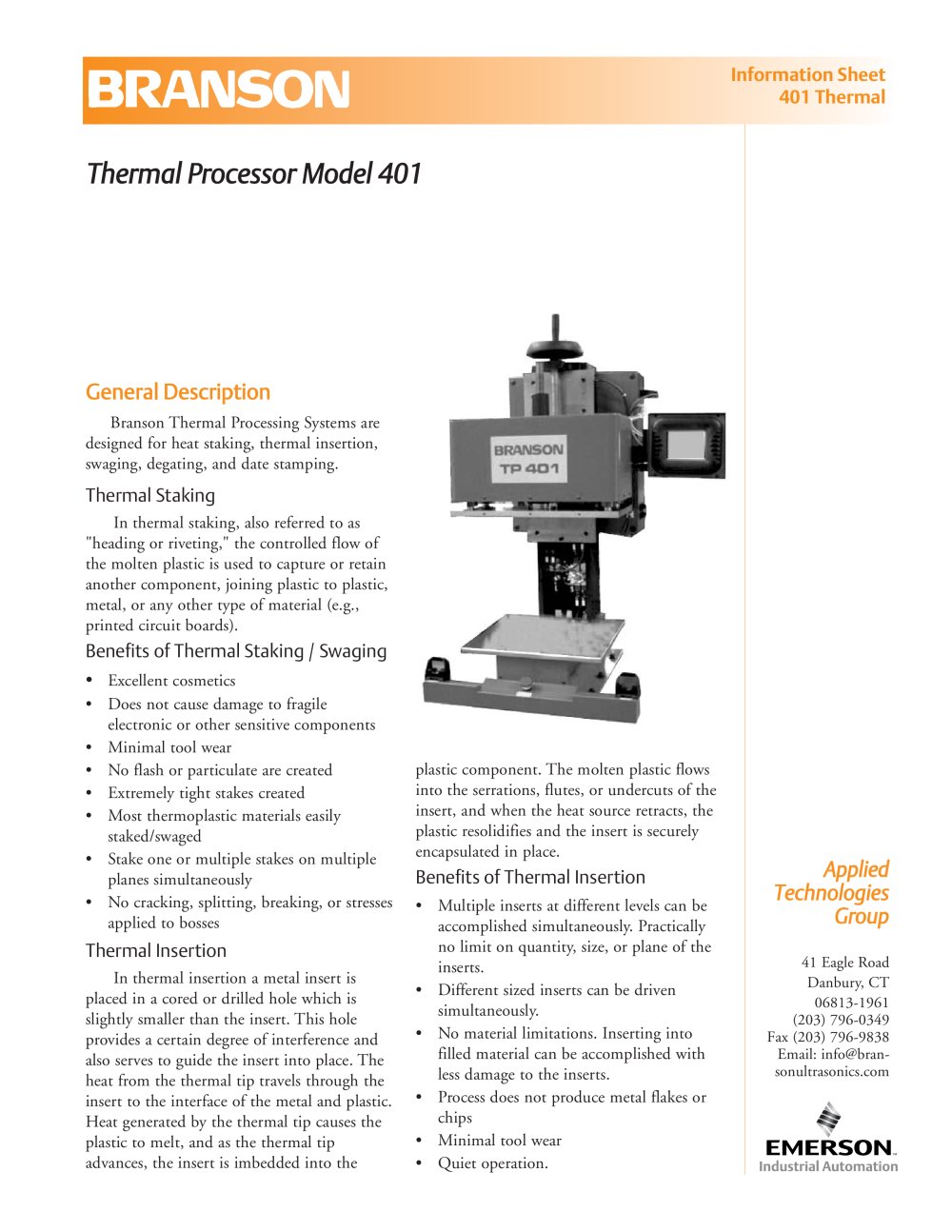

Branson Thermal Processing System Model 401 - 1

Branson Thermal Processing Systems aredesigned for heat staking, thermal insertion, swaging, degating, and date stamping. Thermal Staking > In thermal staking, also referred to as"heading or riveting," the controlled flow of the molten plastic is used to capture or retain another component, joining plastic to plastic, metal, or any other type of material (e.g., printed circuit boards). Benefits of Thermal Staking / Swaging > Excellent cosmeticsՕDoes not cause damage to fragile electronic or other sensitive components Minimal tool wear ՕNo flash or particulate are created Extremely tight stakes created ՕMost thermoplastic materials easilystaked/swaged Stake one or multiple stakes on multipleplanes simultaneouslyՕNo cracking, splitting, breaking, or stressesapplied to bosses Benefits of Thermal Insertion > Multiple inserts at different levels can beaccomplished simultaneously. Practically no limit on quantity, size, or plane of the inserts.ՕDifferent sized inserts can be driven simultaneously. No material limitations. Inserting intofilled material can be accomplished with less damage to the inserts.ՕProcess does not produce metal flakes orchipsMinimal tool wear ՕQuiet operation. Thermal Insertion > 41 Eagle RoadDanbury, CT 06813-1961(203) 796-0349 Fax(203) 796-9838Email: info@bran-sonultrasonics.com In thermal insertion a metal insert isplaced in a cored or drilled hole which is slightly smaller than the insert. This hole provides a certain degree of interference and also serves to guide the insert into place. The heat from the thermal tip travels through the insert to the interface of the metal and plastic. Heat generated by the thermal tip causes the plastic to melt, and as the thermal tip advances, the insert is imbedded into the plastic component. The molten plastic flowsinto the serrations, flutes, or undercuts of the insert, and when the heat source retracts, the plastic resolidifies and the insert is securely encapsulated in place. size="-1">

Open the catalog to page 1
Branson Thermal Processing System Model 401 - 2

Fixturing and tooling are quoted on a per part basis. Send parts and customer information to the Branson Systems Group in Honeoye Falls, NY, for evaluation. > Automation Direct 205 PLCՕAutomation Direct 6" operator interfacetouch screen.Operator interface temperature control,on/off zone selection.ՕTemperature control monitoring and alarm. On/off ramp and soak, post cooling andshuttle control.ՕContactless opti-touch with two handanti-tie-down.5" bore, 4" stroke (1 ton) press cylinderwith 4 precision twin die set ball bushings, 4 hardened steel shafts, including fine adjustment features for...

Open the catalog to page 2
