Introduction
Branson introduces the L-1 Series, an enhanced version of its L Series linear vibration welders, designed for welding large or irregularly-shaped thermoplastic parts. The series includes three models: VW/4L-1, VW/6L-1, and VW/8L-1, each tailored to different part sizes and production needs.

Key Features

Improved ergonomics with a lowered table height of 35 inches and increased door opening for easier access.
Touch screen operator interface with a weld-by-distance option.
Hydraulic lift/clamp system with higher force capability.
Reduced sound levels to 80-82 dBA.
Increased power output.

Model Specifications

VW/4L-1: Maximum part size of 33.5" x 18", table stroke of 20", and machine footprint of 73" x 42".
VW/6L-1: Maximum part size of 46" x 18", table stroke of 20", and machine footprint of 87" x 46".
VW/8L-1: Maximum part size of 58" x 18", table stroke of 20", and machine footprint of 99" x 46".

Technical Specifications

Drive platen sizes range from 30" x 18" to 52" x 18".
Clamp force ranges from 4000 lbs-F to 6000 lbs-F.
Available horsepower ranges from 15 kW to 20 kW.
Dry cycle time is consistent at 5.0 seconds across models.

Warranty
The L-1 Series models are warranted to be free from defects for two years for parts and one year for labor from the date of shipment.

Options

Light curtain
Dual lift cylinders
Duplex electrical outlet
Exterior work lights
Special paint

Contact Information
Branson Ultrasonics Corporation, with locations in Danbury, CT, and Honeoye Falls, NY, provides further details and ordering information through their contact numbers and email.

Catalog excerpts

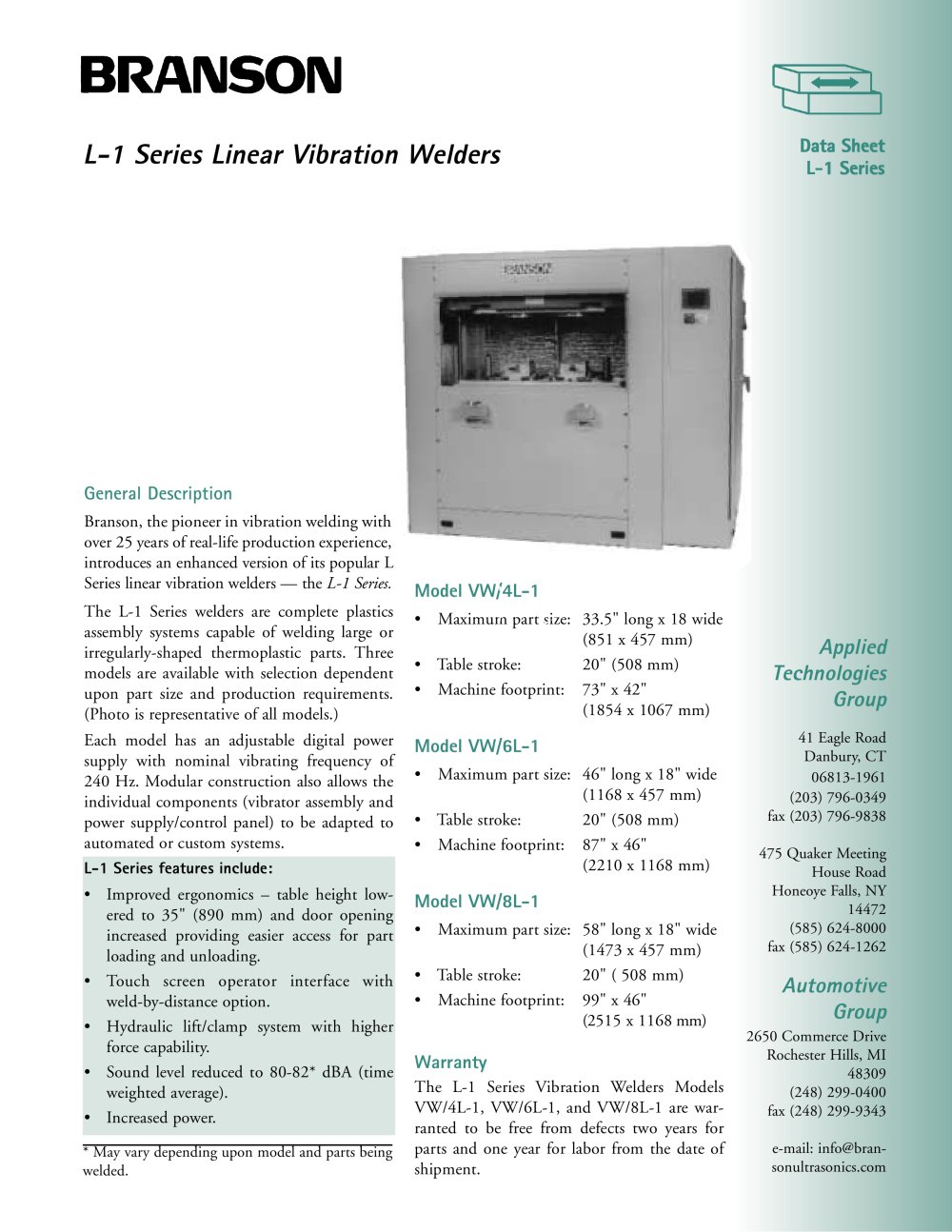

Data S SheetL -1 1 S Series General Description > L-1 Series. Branson, the pioneer in vibration welding withover 25 years of real-life production experience, introduces an enhanced version of its popular L Series linear vibration welders the The L-1 Series welders are complete plasticsassembly systems capable of welding large or irregularly-shaped thermoplastic parts. Three models are available with selection dependent upon part size and production requirements. (Photo is representative of all models.)Each model has an adjustable digital powersupply with nominal vibrating frequency of 240 Hz. Modular construction also allows the individual components (vibrator assembly and power supply/control panel) to be adapted to automated or custom systems. Model VW/4L-1 > וMaximum part size: 33.5" long x 18 wide(851 x 457 mm)Table stroke: 20" (508 mm)ՕMachine footprint: 73" x 42" (1854 x 1067 mm) Model VW/6L-1 > 41 Eagle RoadDanbury, CT 06813-1961(203) 796-0349 fax (203) 796-9838475 Quaker MeetingHouse RoadHoneoye Falls, NY14472(585) 624-8000fax (585) 624-1262 Maximum part size: 46" long x 18" wide (1168 x 457 mm)ՕTable stroke: 20" (508 mm) Machine footprint: 87" x 46" (2210 x 1168 mm) L-1 Series features include: ՕImproved ergonomics table height low-ered to 35" (890 mm) and door opening increased providing easier access for part loading and unloading.֕Touch screen operator interface with weld-by-distance option.Hydraulic lift/clamp system with higherforce capability.ՕSound level reduced to 80-82* dBA (timeweighted average).Increased power. Model VW/8L-1 > ՕMaximum part size: 58" long x 18" wide(1473 x 457 mm)Table stroke: 20" ( 508 mm) ՕMachine footprint: 99" x 46"(2515 x 1168mm) 2650 Commerce DriveRochester Hills, MI48309(248) 299-0400fax (248) 299-9343e-mail: [email protected] Warranty > The L-1 Series Vibration Welders Models VW/4L-1, VW/6L-1, and VW/8L-1 are war- ranted to be free from defects two years for parts and one year for labor from the date of shipment. * May vary depending upon model and parts being welded. size="-3">
