Branson Ultrasonics
B252R Ultrasonic Degreasing System

B252R Ultrasonic Degreasing System

Product catalog summary

Overview
The Branson B252R Ultrasonic Vapor Degreaser is a compact, environmentally friendly, and cost-effective precision degreaser. It features state-of-the-art controls and is suitable for use with various solvents, including HCFC, HFC, HFE, n-propyl bromide, and AK-225. With a 4.8-gallon solvent capacity, it is ideal for individual workstations or process development for larger equipment.

Environmental Features
The B252R complies with EPA regulations on solvent emissions and facilitates OSHA compliance. Key features include a 100% freeboard ratio to minimize diffusion losses, a peripheral refrigerated condensing coil to reduce emissions, a captured sliding cover to eliminate drafts, an offset boiling chamber, and a recirculating pump with a cartridge filter to extend solvent life.

Safety Features
The unit includes low voltage controls, a "Ready" light, high vapor level and low solvent sensors, a boil sump temperature indicator, and an early warning contamination indicator to enhance safety and reliability.

Maintenance
Maintenance can be performed from the front or top of the unit, with all services entering from the front for convenience.

Standard Features
The B252R includes 24 Volt controls, digital temperature readouts, 40 kHz industrial ultrasonics, 304 stainless steel construction, full peripheral cooling coils, and a one-year warranty.

Specifications
Total solvent capacity: 4.8 gallons
Boil tank heat: 1200 Watts
Distillation rate: 5.5 gph (based on HFC/HFE)
Load capacity: 80 lbs./hr (steel)
Cooling: ½ HP compressor
Power requirements: 208/230V, 60 Hz, 1 ph, 16 amps

Options
Available options include a desiccant dryer kit for azeotropic solvents, stainless steel mesh baskets, and a vertical lift mechanism with a power cover.

Dimensions
Ultrasonic tank: 8" x 10" x 6"D
Vapor zone: 10.5" x 12.5" x 6"D
Overall: 22" x 22" x 40" H

Catalog excerpts

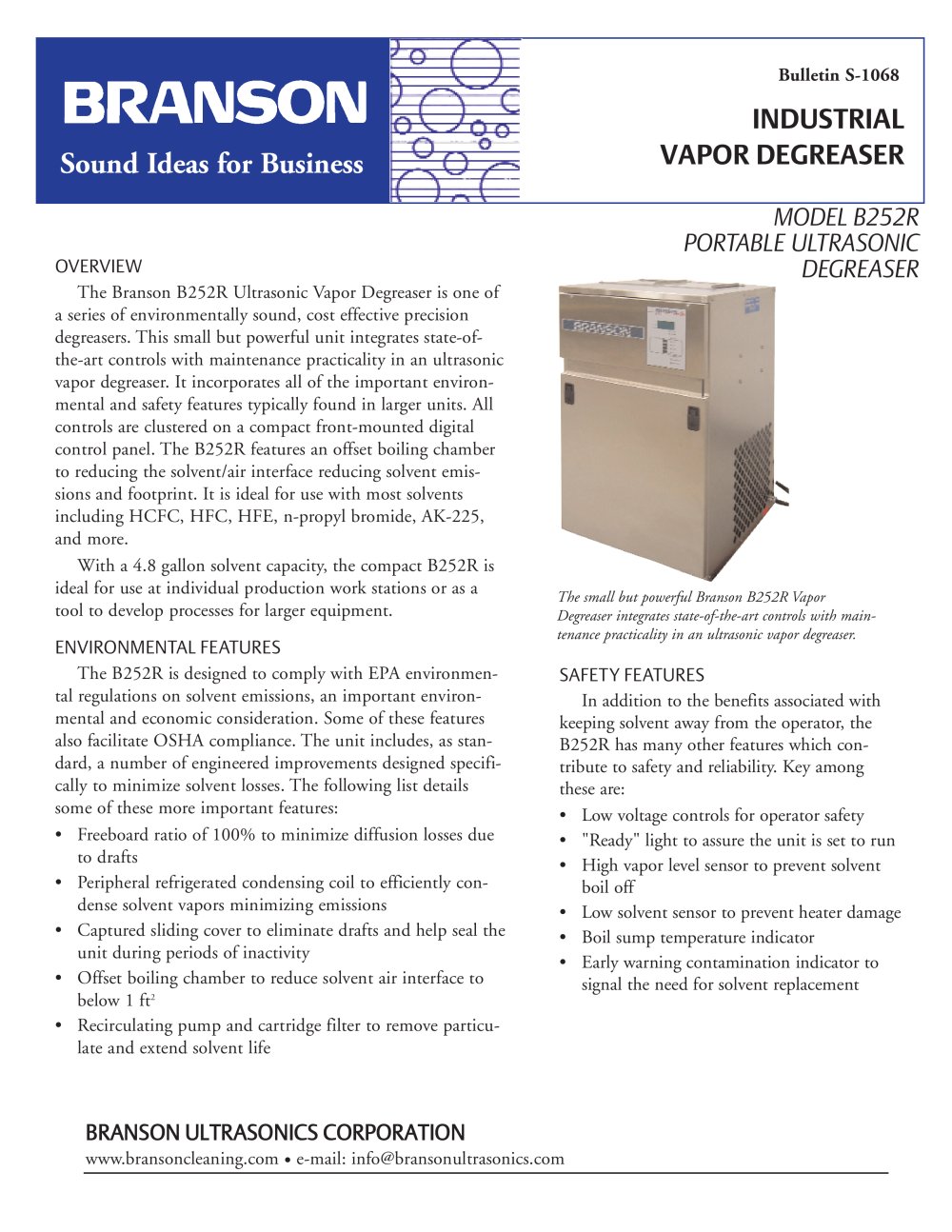

MAINTENANCE All maintenance procedures can be performed from the front or top of the unit. All services alsoenter conveniently from the front. STANDARD FEATURES 24 Volt controls for safety ՕDigital temperature readouts 40 kHz industrial ultrasonics Օ304 Stainless steel construction Full peripheral cooling coils ՕOne year warranty OPTIONS Desiccant dryer kit for azeotropic solvents ՕStainless steel mesh baskets Vertical lift mechanism with power cover SPECIFICATIONS DIMENSIONS Total solvent capacity:4.8 gallonsBoil tank heat:1200 WattsDistillation rate based on HFC/HFE:5.5 gphLoad capacity (steel):80...

Open the catalog to page 2
