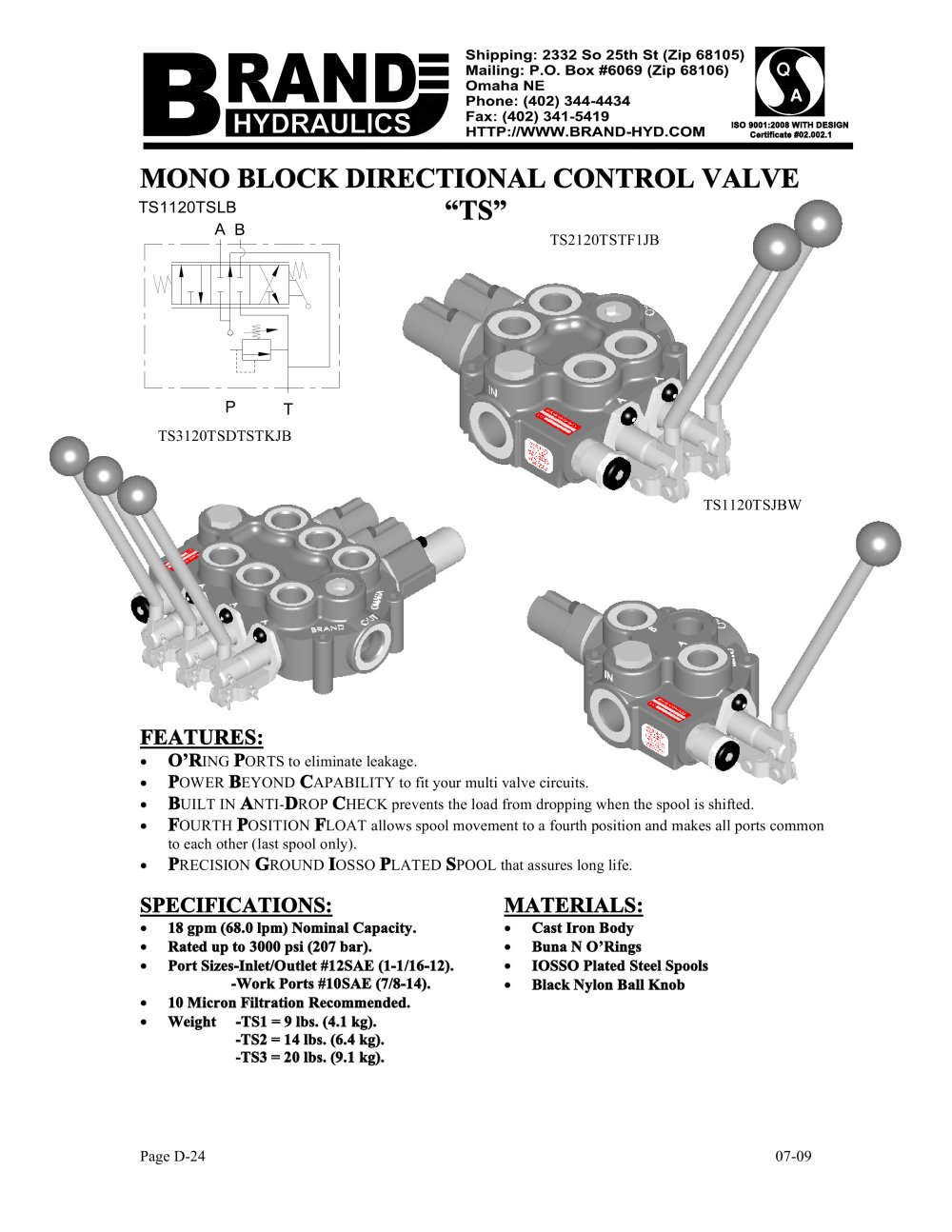

Page D-24 07-09 A B P T TS1120TSLB Certificate #02.002.1 ISO 9001:2008 WITH DESIGN MONO BLOCK DIRECTIONAL CONTROL VALVE “TS” FEATURES: „h O’RING PORTS to eliminate leakage. „h POWER BEYOND CAPABILITY to fit your multi valve circuits. „h BUILT IN ANTI-DROP CHECK prevents the load from dropping when the spool is shifted. „h FOURTH POSITION FLOAT allows spool movement to a fourth position and makes all ports common to each other (last spool only). „h PRECISION GROUND IOSSO PLATED SPOOL that assures long life. SPECIFICATIONS: „h 18 gpm (68.0 lpm) Nominal Capacity. „h Rated up to 3000 psi (207 bar). „h Port Sizes-Inlet/Outlet #12SAE (1-1/16-12). -Work Ports #10SAE (7/8-14). „h 10 Micron Filtration Recommended. „h Weight -TS1 = 9 lbs. (4.1 kg). -TS2 = 14 lbs. (6.4 kg). -TS3 = 20 lbs. (9.1 kg). MATERIALS: „h Cast Iron Body „h Buna N O’Rings „h IOSSO Plated Steel Spools „h Black Nylon Ball Knob TS3120TSDTSTKJB TS2120TSTF1JB TS1120TSJBW

Open the catalog to page 1

Page D-25 NOTE: The standard 1, 2 and 3 spool castings with (O) or (T) spools are assembled at the factory with the TS315 plug in the 10SAE (7/8-14) (1) top port. Directional Control Valves TS – GENERAL INFORMATION The Brand, mono block directional control valve is available in one (TS1), two (TS2) and three (TS3) spool configurations. This valve was designed for applications in which one valve is required to operate separate circuits independently. The TS offers parallel, tandem center 4-way, open center 4-way(motor spool), and tandem 3-way spools. The valve is also field convertible to...

Open the catalog to page 2

Page D-27 P T A B Tandem Center (T) - Powers cylinder or motor in both directions. Pump unloads to tank when spool is in neutral. Cylinder or motor blocked when spool in neutral. Open Center (O) - All of the ports are connected to tank when the spool is in neutral. Allows cylinder to move or motor to rotate when spool is in neutral Closed Center (C)- All ports are blocked in neutral. Blocks cylinder or motor in neutral. Required for use with pressure compensated pump. Tandem Three Way (T3) - Powers the cylinder in one direction. Pump unloads to tank when spool is in neutral, or when spool...
