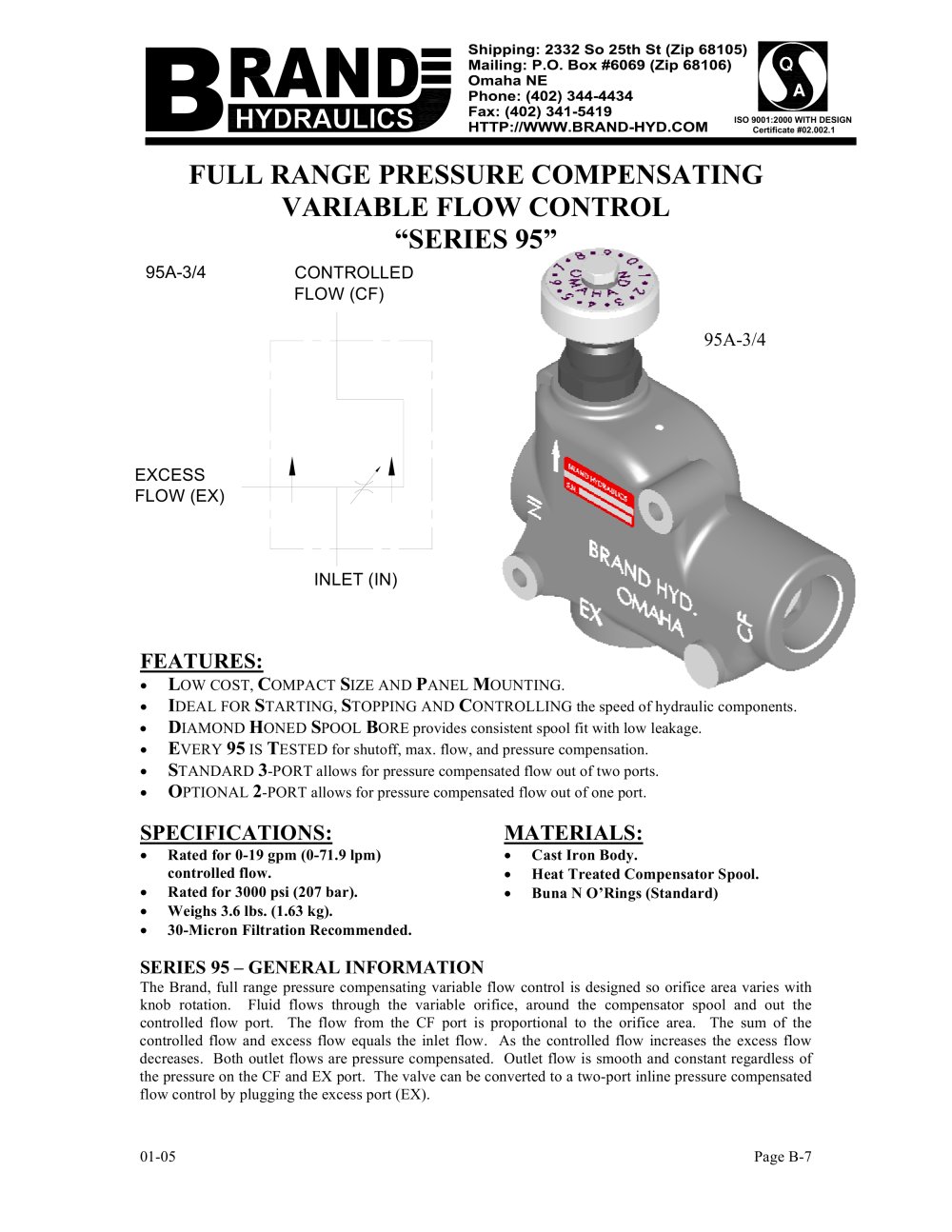

Series 95 - Pressure compensated variable flow control, 0-19 gpm - 1

Certificate #02.002.1ISO 9001:2000 WITH DESIGN ONTROLLING the speed of hydraulic components. > ORE provides consistent spool fit with low leakage. > ESTED for shutoff, max. flow, and pressure compensation. > -PORT allows for pressure compensated flow out of two ports. > -PORT allows for pressure compensated flow out of one port. > Rated for 0-19 gpm (0-71.9 lpm) controlled flow. Cast Iron Body. Heat Treated Compensator Spool. Rated for 3000 psi (207 bar). Buna N ORings (Standard) Weighs 3.6 lbs. (1.63 kg). 30-Micron Filtration Recommended. > The Brand, full range pressure compensating variable flow control is designed so orifice area varies with knob rotation. Fluid flows through the variable orifice, around the compensator spool and out the controlled flow port. The flow from the CF port is proportional to the orifice area. The sum of the controlled flow and excess flow equals the inlet flow. As the controlled flow increases the excess flow decreases. Both outlet flows are pressure compensated. Outlet flow is smooth and constant regardless of the pressure on the CF and EX port. The valve can be converted to a two-port inline pressure compensated flow control by plugging the excess port (EX). 01-05 Page B-7 >

Open the catalog to page 1

Series 95 - Pressure compensated variable flow control, 0-19 gpm - 2

95A-3/4 Ņ.ŅŅŅ..Ņ 3/4 ports and a max flow of 19 gpm. 95A-3/42P ԅŅŅŅ..Ņ 3/4 ports, 2-port and a max flow of 19 gpm. Pressure Drop vs. Flow for Series 95 Controlled Flow vs. Knob Rotation for Series 95 Controlled Flow Flow (gpm) Pressure Drop (psi) Excess Flow 020 40 6080100 0510152025Flow (gpm) 05101520 0.00.51.01.52.0Knob Rotation (Turns) 0.16" TRAVEL 7/8-14 THREAD Ԙ > 1764 x THRU(2 PLACES) 5.09" 2.25" 2.44" 2 TO 2 > 14 FULL ROTATION(OPEN TO CLOSE) 4.62" 1.75" > Page B-8 size="-1">
