Series 20 - 4-way manual sectional directional control, 0-6 gpm

Series 20 - 4-way manual sectional directional control, 0-6 gpm
8Pages

Catalog excerpts

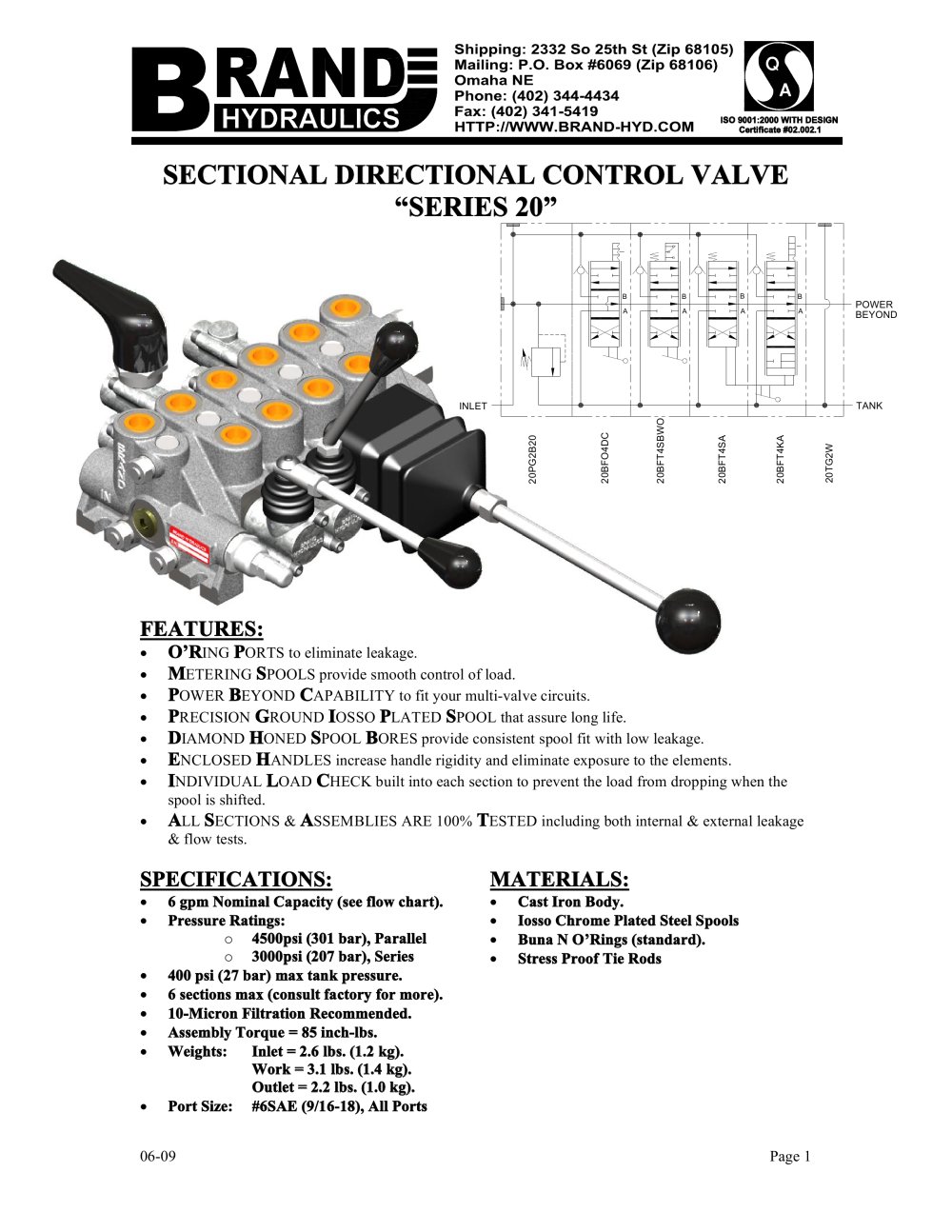

Series 20 - 4-way manual sectional directional control, 0-6 gpm - 1

Certificate #02.002.1ISO 9001:2000 WITH DESIGN B BA B A AB A POWER TANK BEYOND INLET 20TG2W 20BFO4DC 20BFT4SBWO 20BFT4SA 20BFT4KA 20PG2B20 ORTSto eliminate leakage. > POOLS provide smooth control of load. > APABILITY to fit your multi-valve circuits. > POOL that assure long life. > ORESprovide consistent spool fit with low leakage. > ANDLES increase handle rigidity and eliminate exposure to the elements. > HECK built into each section toprevent the load from dropping when the spool is shifted. > ESTED including both internal & external leakage & flow tests. > 6gpm Nominal Capacity (see flow chart). Cast Iron Body. Pressure Ratings: Iosso Chrome Plated Steel Spools o 4500psi (301 bar), Parallel Buna N OҒRings (standard). o 3000psi (207 bar), Series Stress Proof Tie Rods 400 psi (27 bar) max tank pressure. 6sections max(consult factory for more). 10-Micron Filtration Recommended. Assembly Torque = 85 inch-lbs. Weights:Inlet = 2.6lbs. (1.2kg).Work= 3.1lbs. (1.4kg). Outlet= 2.2lbs. (1.0kg). Port Size:#6SAE (9/16-18), All Ports 06-09Page 1 >

Open the catalog to page 1

Series 20 - 4-way manual sectional directional control, 0-6 gpm - 2

The Brand, Series 20Sectional Directional Control Valves are assembled to meet our customer֒s requirements for up to sixindividual applications per assembly(consult factory for more sections). Brand Hydraulics does not charge anything extra for this process and assembly is priced solely on the overall sum of the prices of its components.When assembled in their normal manner the series 20spool sections are in parallel. When the spools are in neutral position,the flow passes by each spool and then onto the tank (outlet) port. If two or more spools are shifted simultaneously their work ports...

Open the catalog to page 2

Series 20 - 4-way manual sectional directional control, 0-6 gpm - 3

PORTING: RELIEF SETTING: 1 End port (not convertible)2 ֖Top port (convertible to end or side port)3 Side port (convertible to top or end port) 15 ֖1500 psi20 2000 psiETCօ RELIEF: Omit Not machined for reliefB ֖Adjustable high lift relief > PORTING: OPTION: 1 End port (not convertible)2 ֖Top port (convertible to end or side port)3 Side port (convertible to top or end port) Omit ֖No optionsW Power beyond cartridge used with top port (2) call outC ֖Closed center cartridge used with top port (2) call out Page 3 >

Open the catalog to page 3

Series 20 - 4-way manual sectional directional control, 0-6 gpm - 8

It is the purchaser's responsibility to determine the suitability of any Brand Hydraulics product for an intended application, and to insure that it is installed in accordance with all federal, state, local, private safety, health regulations, and codes and standards. Due to the unlimited variety of machines, vehicles, and equipment on which our products can be used, it is impossible for Brand Hydraulics to offer expert advice on the suitability of a product for a specific application. We believe that it is our customers responsibility to undertake the appropriate testing and evaluation to...
