NON – ADJUSTABLE FLOW CONTROL “SERIES 83”

NON – ADJUSTABLE FLOW CONTROL “SERIES 83”
1Pages

Catalog excerpts

NON – ADJUSTABLE FLOW CONTROL “SERIES 83” - 1

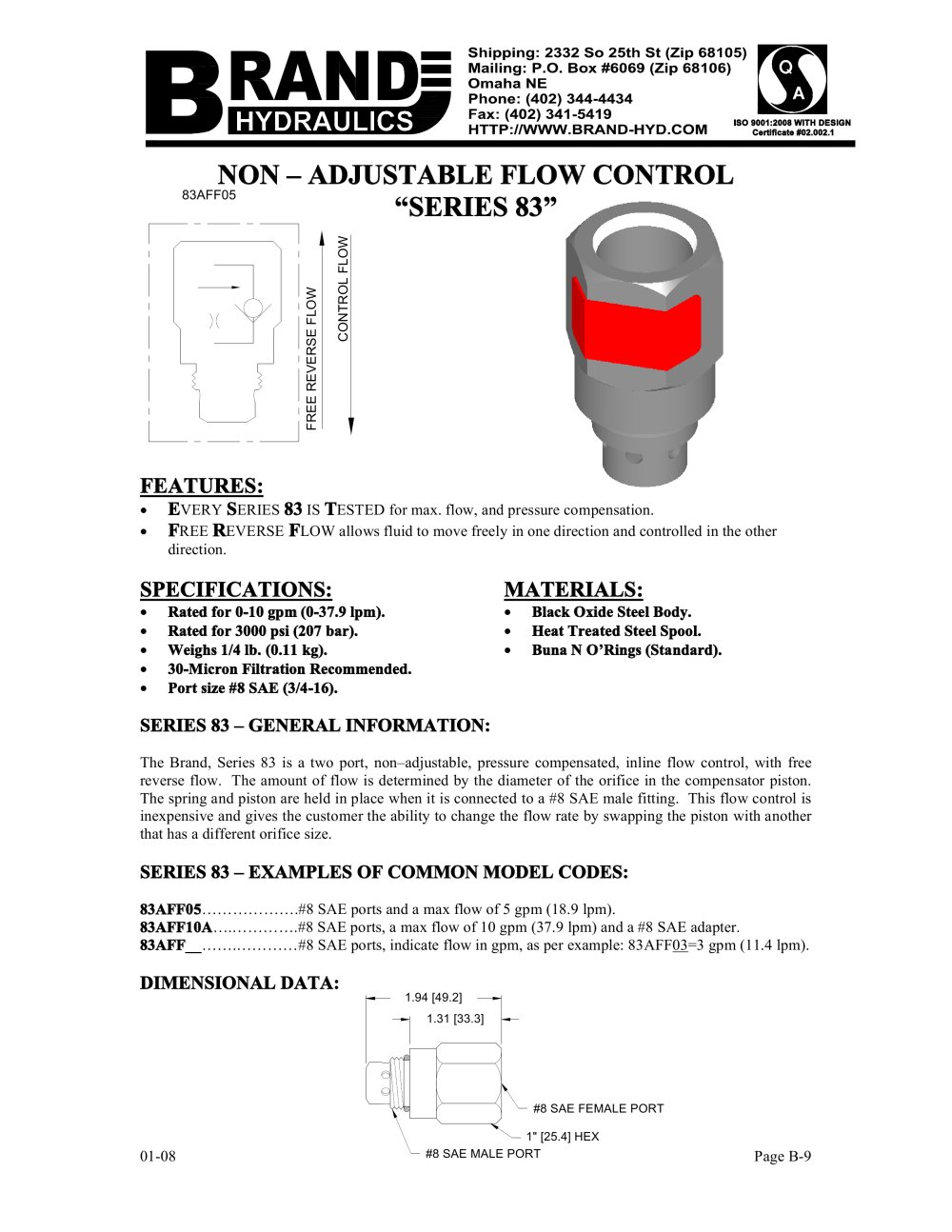

01-08 Page B-9 83AFF05 FREE REVERSE FLOW CONTROL FLOW #8 SAE FEMALE PORT #8 SAE MALE PORT 1.94 [49.2] 1.31 [33.3] 1" [25.4] HEX Certificate #02.002.1 ISO 9001:2008 WITH DESIGN NON – ADJUSTABLE FLOW CONTROL “SERIES 83” FEATURES: „h EVERY SERIES 83 IS TESTED for max. flow, and pressure compensation. „h FREE REVERSE FLOW allows fluid to move freely in one direction and controlled in the other direction. SPECIFICATIONS: „h Rated for 0-10 gpm (0-37.9 lpm). „h Rated for 3000 psi (207 bar). „h Weighs 1/4 lb. (0.11 kg). „h 30-Micron Filtration Recommended. „h Port size #8 SAE (3/4-16). MATERIALS: „h Black Oxide Steel Body. „h Heat Treated Steel Spool. „h Buna N O’Rings (Standard). SERIES 83 – GENERAL INFORMATION: The Brand, Series 83 is a two port, non–adjustable, pressure compensated, inline flow control, with free reverse flow. The amount of flow is determined by the diameter of the orifice in the compensator piston. The spring and piston are held in place when it is connected to a #8 SAE male fitting. This flow control is inexpensive and gives the customer the ability to change the flow rate by swapping the piston with another that has a different orifice size. SERIES 83 – EXAMPLES OF COMMON MODEL CODES: 83AFF05……………….#8 SAE ports and a max flow of 5 gpm (18.9 lpm). 83AFF10A….………….#8 SAE ports, a max flow of 10 gpm (37.9 lpm) and a #8 SAE adapter. 83AFF__…….…………#8 SAE ports, indicate flow in gpm, as per example: 83AFF03=3 gpm (11.4 lpm). DIMENSIONAL DATA:
