BG - Non-adjustable constant volume priority divider, 0-30 gpm

Product catalog summary

Certificate Information:
Certificate #02.002.1 is for ISO 9001:2000 with design compliance.

Product Overview:
The document describes the 'BG' series of non-adjustable constant volume priority dividers, which include models BG5, BGR5, and BGC5. These devices split a single fluid stream into two separate output streams, maintaining consistent flow through the priority port regardless of input flow changes.

Features:

Precision ground heat-treated spool for durability.
Pressure compensation for both outlet ports.
Factory preset priority flow to customer specifications.
Each unit is tested for priority flow and pressure compensation.
Optional features include free reverse flow and a ball spring relief valve for priority flow relief.

Specifications:

Rated for 3000 psi (207 bar).
Maximum priority flow of 0-30 gpm (0-113.6 lpm).
30-Micron filtration recommended.
Weight: 5 lbs. (2.3 kg) for BG, BGR, and BGC models.

Materials:

Cast Iron Body
Buna N O’Rings
Heat Treated Steel Spools
Heat Treated Free Reverse Check Seat
Heat Treated Relief Seat

Flow Options:

5 – Non-adjustable priority divider
R5 – Non-adjustable priority divider with relief
C5 – Non-adjustable priority divider with free reverse flow

Model Descriptions:

BG5: Divides a single stream into priority and excess streams with pressure compensation. Priority flow setting specified upon ordering.
BGR5: Similar to BG5 but includes a ball spring relief valve set to 1500 psi (103 bar). Priority flow setting specified upon ordering.
BGC5: Similar to BG5 but allows free reverse flow through both outlet ports. Priority flow setting specified upon ordering.

Model Code Examples:

BG503-3/4: 3 gpm priority setting, 3/4” inlet/excess ports, 3/8” priority port.
BGR506-3/4: 1500 psi relief setting, 6 gpm priority setting, 3/4” inlet/excess ports, 3/8” priority port and tank port.
BGC504-3/4: Free reverse flow, 4 gpm priority setting, 3/4” inlet/excess ports, 3/8” priority port.

Creating a Model Code:
Model codes are structured as BG followed by flow setting and port size, e.g., BG__ __ - __.

Catalog excerpts

BG - Non-adjustable constant volume priority divider, 0-30 gpm-1

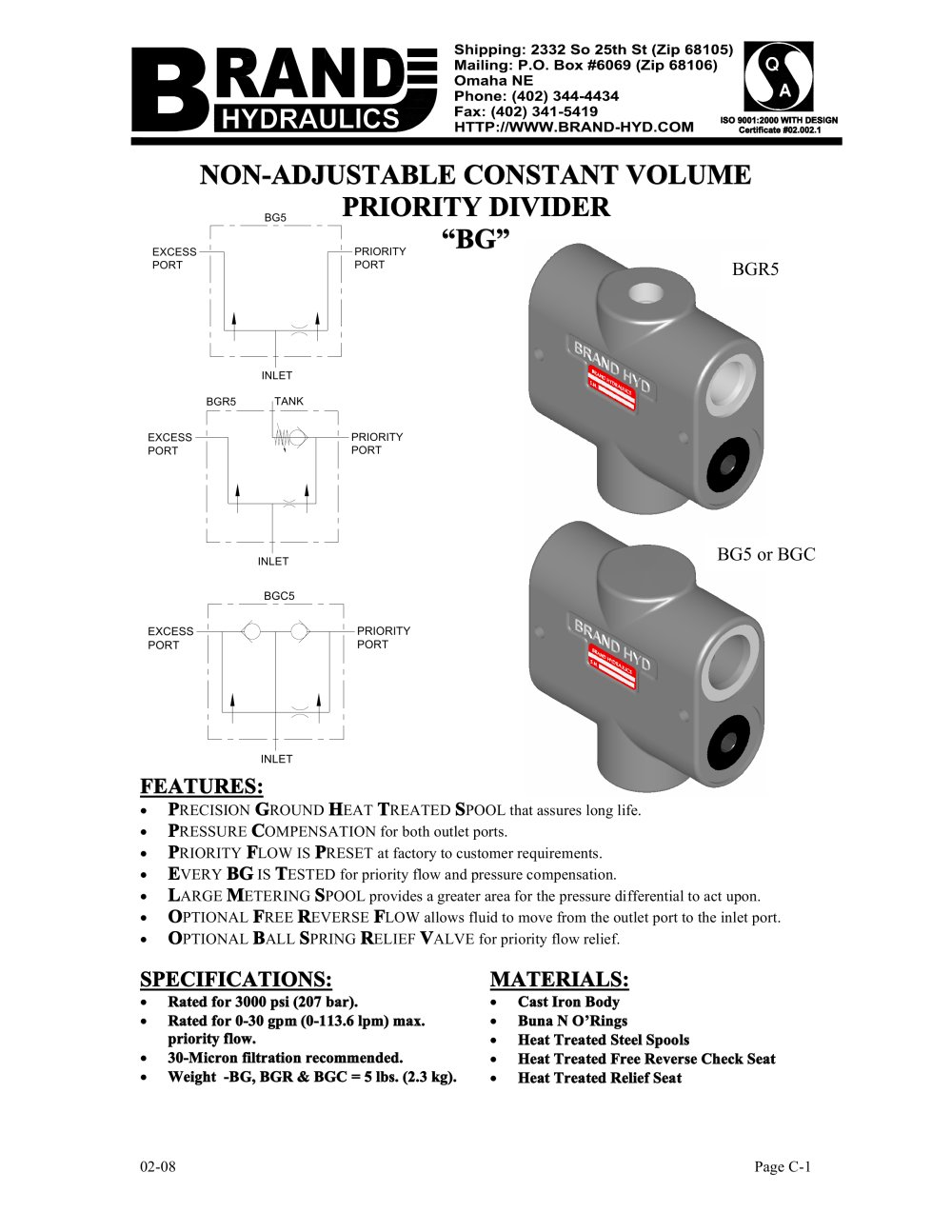

Certificate #02.002.1ISO 9001:2000 WITH DESIGN BGR5 TANK PRIORITYPORTEXCESSPORT INLET POOL that assures long life. > OMPENSATION for both outlet ports. > RESET at factory to customer requirements. > ESTED for priority flow and pressure compensation. > POOL provides a greater area for the pressure differential to act upon. > LOW allows fluid to move from the outlet port to the inlet port. > ALVE for priority flow relief. > Rated for 3000 psi (207 bar). Cast Iron Body Rated for 0-30 gpm (0-113.6 lpm) max. priority flow. Buna N ORings Heat Treated Steel Spools 30-Micron filtration recommended. Heat Treated Free Reverse Check Seat Weight -BG, BGR & BGC = 5 lbs. (2.3 kg). Heat Treated Relief Seat 02-08Page C-1 >

Open the catalog to page 1

BG - Non-adjustable constant volume priority divider, 0-30 gpm-2

The Brand, non-adjustable priority flow divider comes in three basic models BG5, BGR5 and BGC5. The BG series receive a single stream of fluid and divides it into two separate output streams. The priority port will maintain the same flow even with an increase or decrease in the input flow. The priority port size is 3/8֔ NPT for 0-8 gpm (0-30.2 lpm), 1/2 NPT for 8-16 gpm (30.2-60.5 lpm) and 3/4Ԕ NPT for 16-30 gpm (60.5-113.4 lpm). BG5 is a non-adjustable priority divider that receives a single stream and divides it into a priority stream and an excess stream. The two outlet flows are pressure...

Open the catalog to page 2
