The Ultrafiltration unit is designed for Bran+Luebbe On-line Monitors, specifically for municipal and industrial wastewater treatment plants. It provides a clean sample stream for on-line monitors, handling difficult samples with high solids or bacteria content.

Operation
A sample pump delivers a continuous stream at 8 m³/h through one filter tube while the other is on standby. The system operates under low-pressure conditions, with the filtrate pump determining volume and supplying necessary pressure to the monitor.

Technical Specifications

Filter Types: Various models (2H, 2HSP, 2HA, 2HASP, 2VA) with manual or automatic filter change and cleaning options.
Filter Tubes: Two tubes in alternate operation.
Separation: Retains particles with molecular weight >20,000.
Chemical Resistance: pH range 2 - 12.
Sample Temperature: Max 45°C.
Sample Pressure: Max 2 bar.
Filtrate Volume: Approx. 2 l/h.
Environmental Temperature: 0 - 45°C.
Cleaning Interval: 1 - 4 weeks, depending on contamination.
Design: Side-channel or immersion type.
Pump Power: 8 m³/h.
Delivery Head: Max 30 m.
Suction Head: Max 2 m.
Weight: Approx. 33 kg.
Dimensions: 2000 x 500 x 160 mm.

Operation Diagram (Type 2VA)
The diagram includes components such as aeration, overflow, return flow, inlet flow, rinsing solution, hypochlorite container (optional), drain, filtrate to monitor, pressure gauge, and tube sensors.

Additional Information
Models can be upgraded to meet changing requirements, and filters are available for different needs. The document notes that specifications are subject to change without notice.

Catalog excerpts

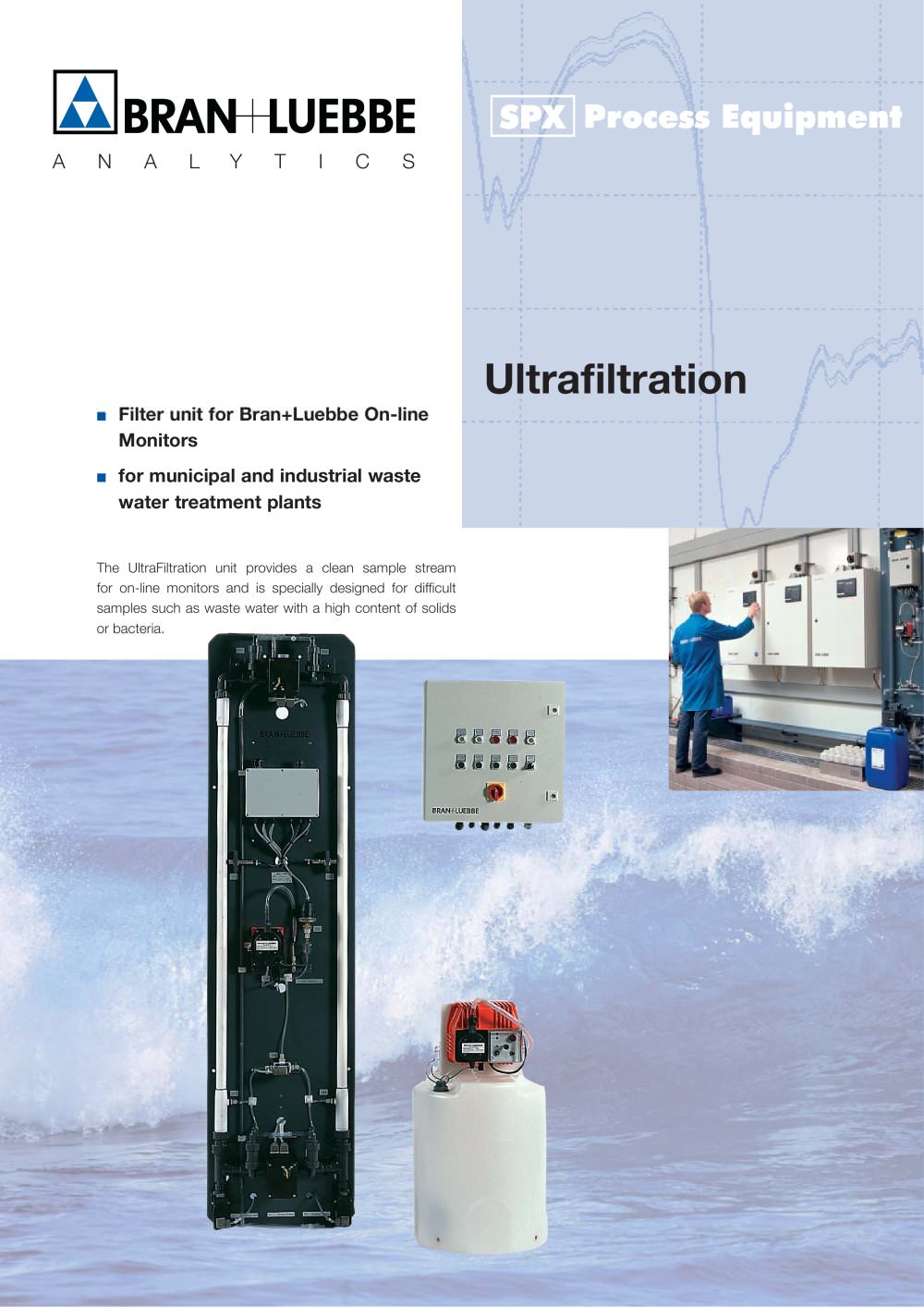

Ultrafiltration ¡ Filter unit for Bran+Luebbe On-line Monitors ¡ for municipal and industrial waste water treatment plants The UltraFiltration unit provides a clean sample stream for on-line monitors and is specially designed for difficult samples such as waste water with a high content of solids or bacteria. A N A L Y T I C S

Open the catalog to page 1

A sample pump (side or immersed type) provides a continuous stream of sample at 8 m3/h through one filter tube while the other tube is in stand-by. The filter tubes operate under virtually zero pressure conditions. The filtrate pump has two functions: It determines the filtrate volume and supplies the Monitor with the necessary sample pressure. Technical data ¡ Type 2H Manual fi lter change, manual cleaning manual valves ¡ Type 2HSP Manual fi lter change, cleaning pump manual valves, 1 hypochlorite container, 1 pump ¡ Type 2HA Automatic fi lter change, manual cleaning electric changeover valves,...

Open the catalog to page 2
