- Turbidity Sensor
Turbidity Sensor
Turbidity Sensor
- Item Number: 48 806 600 D0 A
- Measuring Range: 2 to 1000 FNU
- Accuracy: 3% of the measured value
- Response Time: Less than 5 seconds
- Resolution: 1 FNU
- Ambient Temperature Limit: Storage: -10°C to +45°C, Operation: -4°C to +45°C
- Power Supply: 24 VDC, 2 W
- Dimensions: 200x127x80 mm
- Weight: Approximately 2100 g
- Type of Sensor/Measuring Principle: Nephelometric, with infrared-LED
- Protection Class: IP 65
- Interface: CAN-Bus
Catalog excerpts

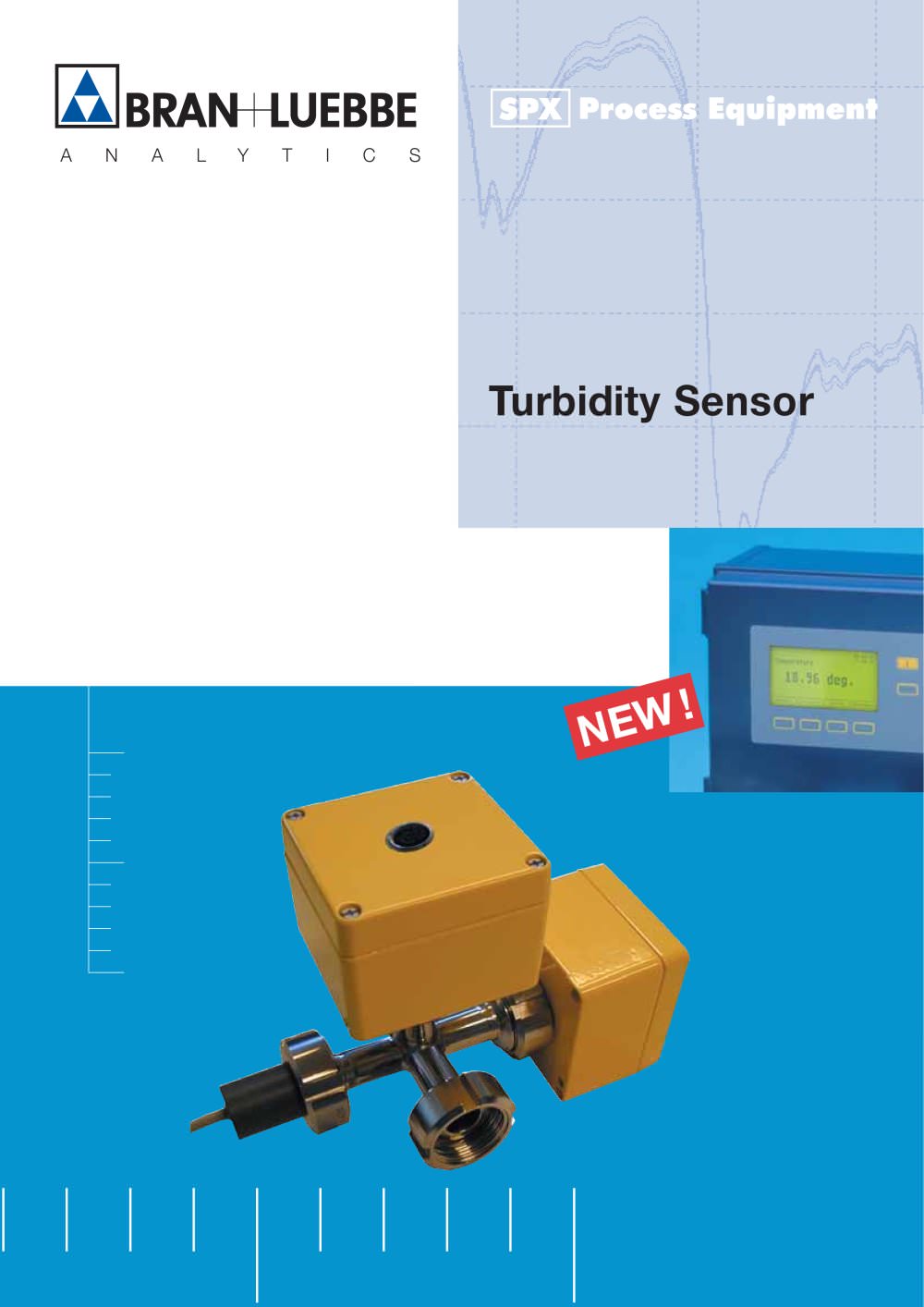

1.0 E 0804 - 2.3.5 Printed in Germany Subject to change without notice Turbidity Sensor The turbidity sensor uses a combination of transmission and 90° scattering in a flow-through system. The two photodetectors for scattered and transmitted light and the light source (IR-LED) are situated in a flow-through system made of stainless steel (V4A). It can be used to determine the turbidity of fresh water and seawater or other liquids and is designed to be part of a flow-system that is optimised for water quality monitoring. The sensor can be modified to the customer's needs regarding measuring range...
