Temperature Sensor

Temperature Sensor

Product catalog summary

Overview: The document describes a temperature sensor designed for high accuracy and long service life, suitable for both flow system and submersible applications. It highlights the sensor's customizable features, including measuring range and accuracy, and notes a response time of less than 5 seconds.

Specifications:

Item Number: 48 806 300 D0 B / 48 806 300 T0 B
Range: -4°C to +115°C
Accuracy: 0.3 K
Response Time: < 5 seconds
Resolution: 0.1 K
Ambient Temperature Limit: Storage: -40°C to +60°C, Operation: -4°C to +60°C
Power Supply: 24 VDC, 2 W
Dimensions: 80x122x75 mm (standard), Submersible compound: 60x95x60 mm, DAM: 75x55x70 mm
Weight: Approx. 650 g
Type of Sensor/Measuring Principle: NTC
Protection Class: IP 65
Interface: CAN-Bus

Additional Features: The sensor can be modified to meet specific customer needs, and a higher accuracy version is available. The cable length between the sensor and the Data Acquisition Module (DAM) is adjustable based on application requirements.

Contact Information: Bran+Luebbe GmbH, P.O. Box 13 60, D-22803 Norderstedt, Germany. Phone: +49 (040) 522 02-0, Fax: +49 (040) 522 02-444, Email: [email protected]

Catalog excerpts

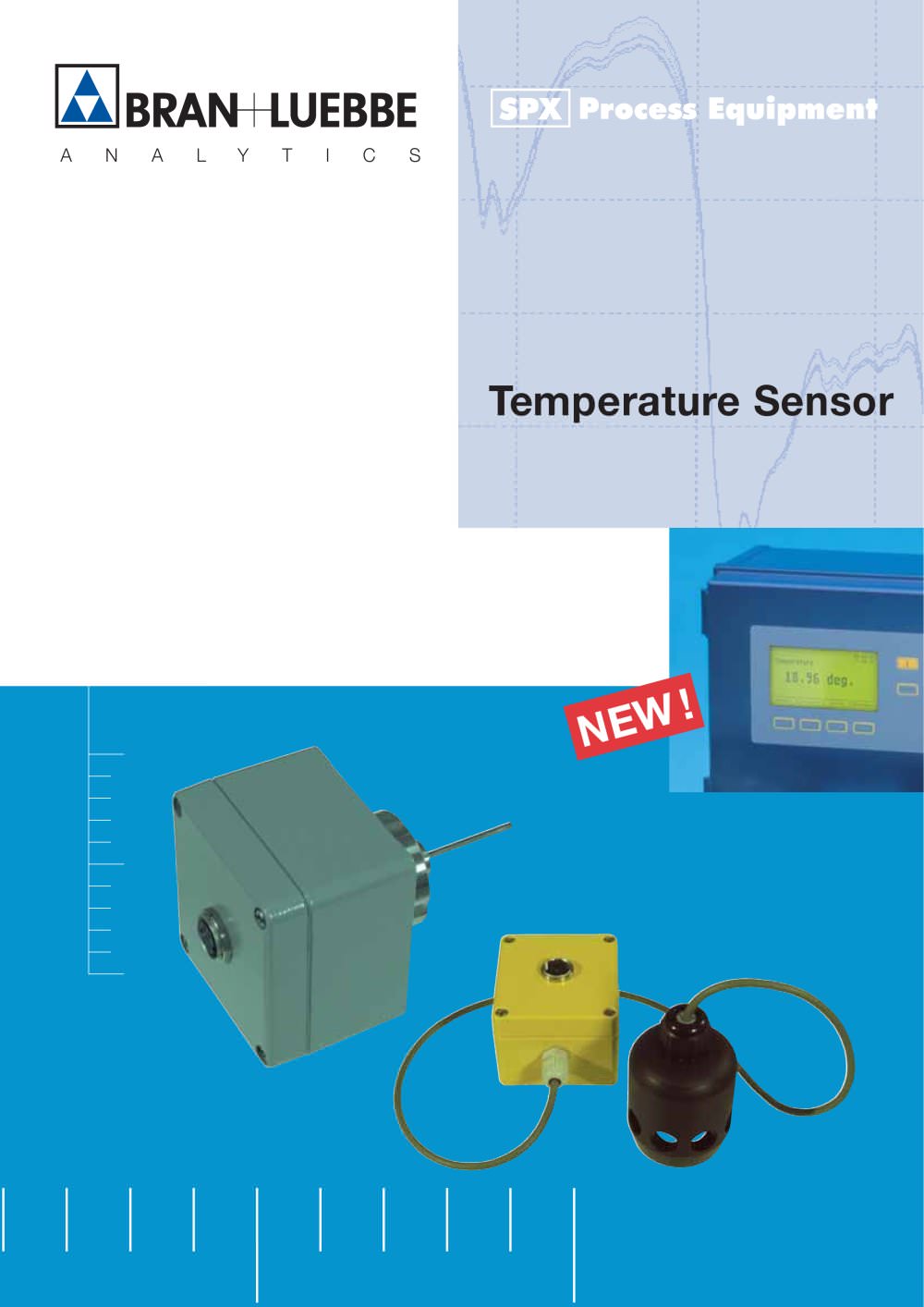

1.0 E 0804 - 2.3.6.2 Printed in Germany Subject to change without notice Temperature Sensor (Flow System Sensor/ Submersible Sensor) The major advantages of this temperature sensor are its high accuracy and the long service life. The sensor can be modified to the customer 's needs regarding measuring range and accuracy. The response time is less than 5 seconds. A temperature sensor with a higher accuracy is available as well as a submersible sensor. The cable length between the sensor and the DAM is selectable according to the application. Item-Number Range Accuracy Response time Resolution Ambient...
