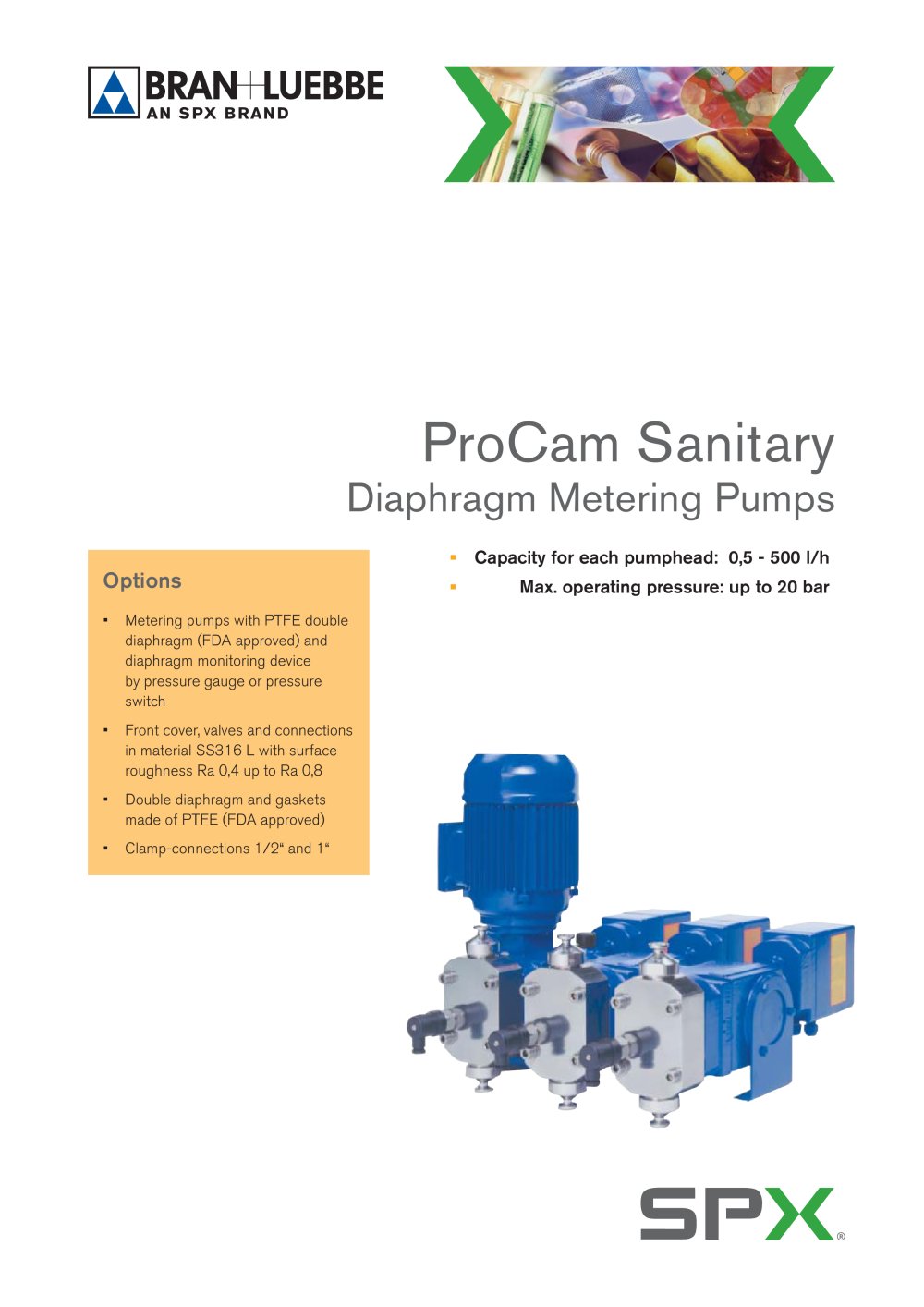

• Diaphragm metering pumps with PTFE double diaphragm, FDA approved, featuring a diaphragm monitoring device via pressure gauge or switch.
• Components such as front cover, valves, and connections are made of SS316 L with surface roughness ranging from Ra 0.4 to Ra 0.8.
• Double diaphragm and gaskets are made of PTFE, FDA approved.
• Available clamp connections are 1/2" and 1".
• Pumphead capacity ranges from 0.5 to 500 l/h with a maximum operating pressure of up to 20 bar.

• Suitable for Cleaning-in-Place (CIP) up to 150°C and Sterilizing-in-Place (SIP) using saturated steam at 121°C.
• Ideal for hygienic applications in pharmaceutical, biotechnology, cosmetic, personal care, food, and beverage industries.

• Electro-polished pumphead and connections with surface roughness Ra 0.4 for easy cleaning.
• Optimized ball valve with surface roughness Ra 0.4.
• Hygienic design with PTFE double diaphragm (FDA approved).

Note: For multiple pumps with 4-6 pumpheads, the maximum pressure is 50% of the value given in the table.

Bran+Luebbe GmbH, P.O. Box 1360, D-22803 Norderstedt
Phone: +49 (0) 40 - 522 02 -0
Fax: +49 (0) 40 - 522 02 444
Email: [email protected]
Website: www.branluebbe.com

For more information about worldwide locations, approvals, certifications, and local representatives, visit www.spxpe.com.

SPX Corporation reserves the right to incorporate the latest design and material changes without notice or obligation. Design features, materials of construction, and dimensional data are provided for information only and should not be relied upon unless confirmed in writing.

Issued: 2.1.1 - 0.5 - E 02/2008. Copyright © 2005, 2008 SPX Corporation.
