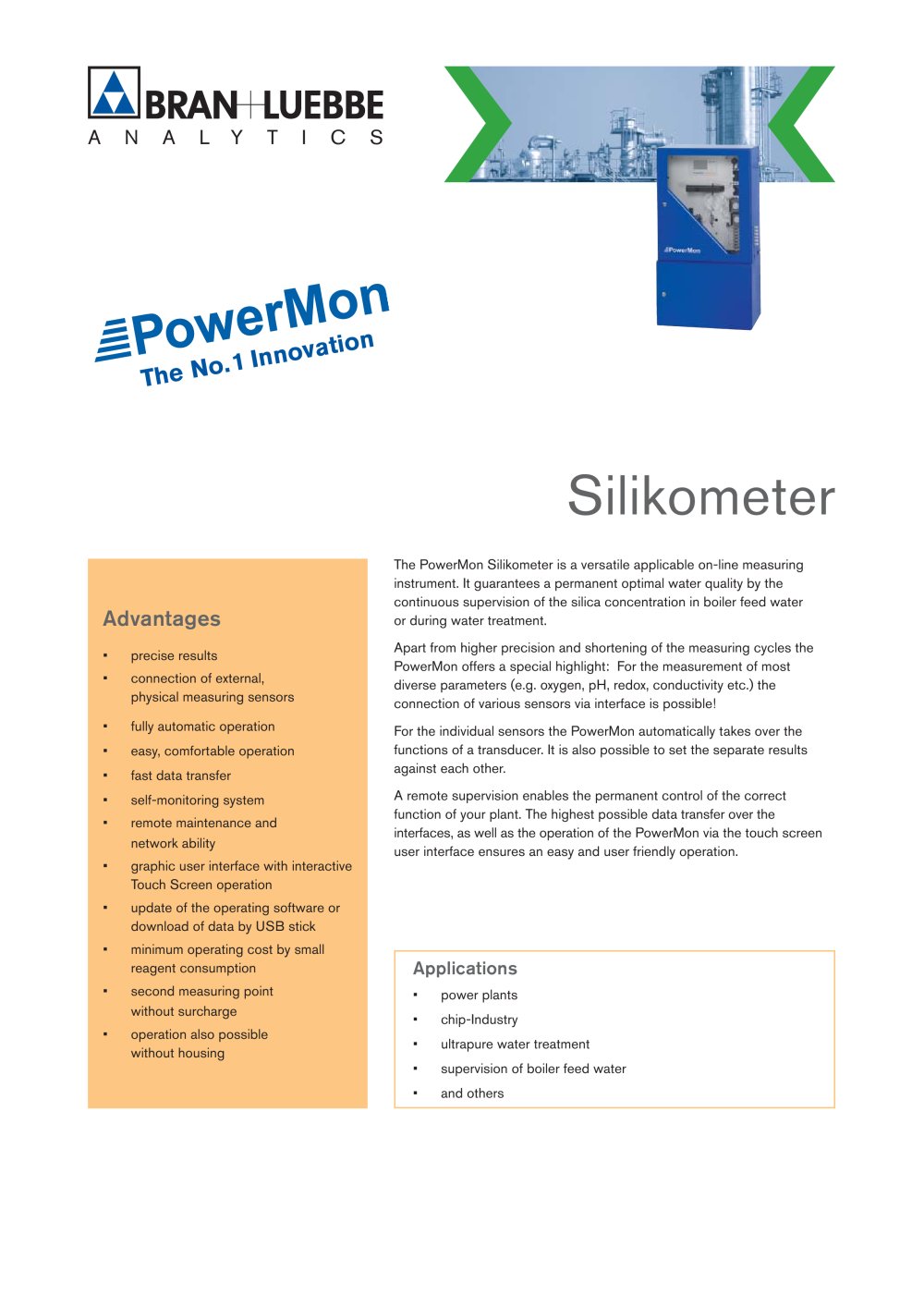

Silikometer The PowerMon Silikometer is a versatile applicable on-line measuring instrument. It guarantees a permanent optimal water quality by the continuous supervision of the silica concentration in boiler feed water or during water treatment. Apart from higher precision and shortening of the measuring cycles the PowerMon offers a special highlight: For the measurement of most diverse parameters (e.g. oxygen, pH, redox, conductivity etc.) the connection of various sensors via interface is possible! For the individual sensors the PowerMon automatically takes over the functions of a transducer. It is also possible to set the separate results against each other. A remote supervision enables the permanent control of the correct function of your plant. The highest possible data transfer over the interfaces, as well as the operation of the PowerMon via the touch screen user interface ensures an easy and user friendly operation. Applications • power plants • chip-Industry • ultrapure water treatment • supervision of boiler feed water • and others Advantages • precise results • connection of external, physical measuring sensors • fully automatic operation • easy, comfortable operation • fast data transfer • self-monitoring system • remote maintenance and network ability • graphic user interface with interactive Touch Screen operation • update of the operating software or download of data by USB stick • minimum operating cost by small reagent consumption • second measuring point without surcharge • operation also possible without housing A N A L Y T I C S The No. 1 Innovation

The compact and modular design of the PowerMon can contain up to six on-line measuring points in one device and enables a space-saving and economic operation PowerMon Silikometer Technical Data Measuring methods cyclic, colorimetric Measuring cycle min. 10 min / typical 15 min Measuring range 0-5 to 0-1100 ppb Further parameters and measuring ranges on request Precision 3% or 0.1 ppb (whatever is higher) Detection limit 100 / 150 ppt Drift typ. < 0.2% of measuring range (end of value) Reagent supply typ. 12 weeks depending on range Number of measuring points max. 6 Output signal 0/4-20 mA max....
