pH Sensor

Product catalog summary

Overview: The document provides technical specifications for a pH sensor available in both flow system and submersible configurations. The sensor utilizes an electrode filled with liquid KCl and AgCl, suitable for various applications across the entire pH range.

Specifications: The standard pH sensor specifications include a range from pH 2 to pH 12, with an accuracy and resolution of 0.1 pH. The response time is less than 60 seconds. The sensor operates within an ambient temperature range of -4°C to +60°C and requires a 24 VDC power supply.

Design and Features: The sensor is available with an optional temperature sensor and can be customized for specific measuring ranges and accuracy requirements. It employs ISFET technology and has a protection class of IP 65, with a CAN-Bus interface for connectivity.

Dimensions and Weight: The sensor dimensions are 45x200x45 mm (without tube) and weighs approximately 600 g. The Data Acquisition Module (DAM) measures 75x55x70 mm.

Additional Model: Another model, item number 48 806 500 T0 A, shares similar specifications but has different dimensions (60x200x60 mm) and a weight of approximately 1000 g.

Contact Information: The document lists contact details for Bran+Luebbe GmbH, including phone, fax, email, and website addresses.

Catalog excerpts

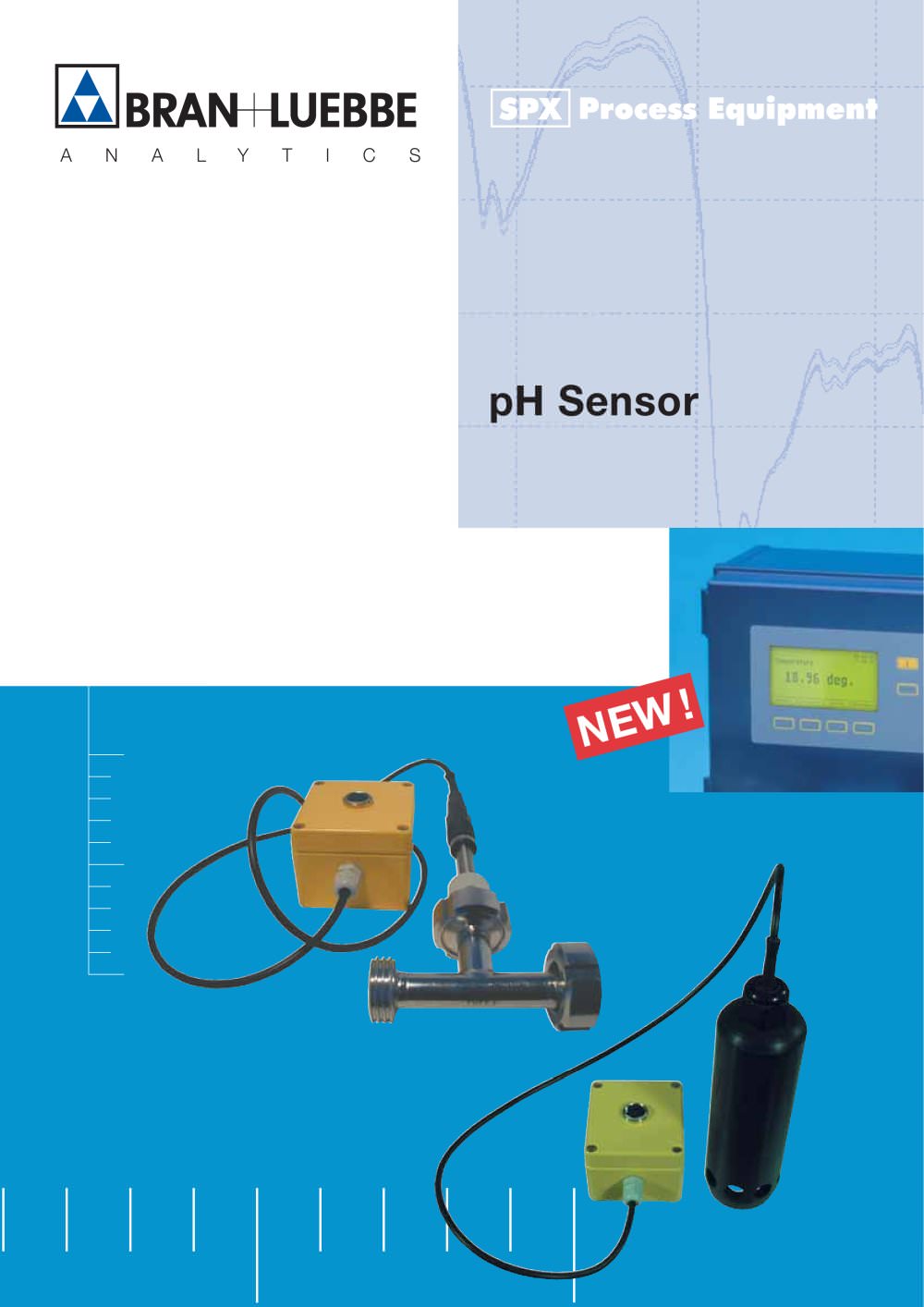

1.0 E 0804 - 2.3.4.1 Printed in Germany Subject to change without notice pH Sensor (Flow System Sensor/ Submersible Sensor) The pH sensor uses an electrode filled with luiquid KCl and AgCl. It is possible to choose between various pH electrodes for different applications covering the whole pH-range. The specifications in the table refer to the standard pH sensor. The sensor can be modified to the customer´s needs regarding measuring range and accuracy. The response time is less than 60 seconds. This sensor is also available in combination with a temperature sensor and as a submersible sensor....
