Oxygen Sensor

Oxygen Sensor

Product catalog summary

Overview: The document describes the OxyGuard oxygen sensor, which operates using the galvanic principle. It highlights the sensor's long service life, low maintenance costs, and ease of adjustment without calibration tables. The sensor is designed for submersion in water and can be customized for different measuring ranges and accuracy levels.

Key Features:

Long service life and low maintenance due to durable design and long-term adjustment intervals.
Adjustable in air or saturated water without calibration tables.
Durable membrane with a thickness of 100 µm.
New sensor electronics eliminate the need for an additional storage battery.
Response time of less than 2 minutes.
Available with an optional temperature sensor.

Specifications:

Item Number: 48 806 400 T0 C
Range: 0 to 20 mg/l
Accuracy: +/- 0.5 mg/l
Response Time: < 2 minutes
Resolution: 0.1 mg/l
Ambient Temperature Limit: Storage -20°C to +60°C, Operation 0°C to +50°C
Power Supply: 24 VDC, 2 W
Dimensions: Sensor diameter 58 mm, length 56 mm; DAM 75x55x70 mm
Weight: Sensor approx. 180 g, DAM approx. 450 g
Type of Sensor/Measuring Principle: Galvanic cell
Protection Class: IP 65
Interface: CAN-Bus

Contact Information: Bran+Luebbe GmbH, P.O. Box 13 60, D-22803 Norderstedt, Germany. Phone: +49 (040) 522 02-0, Fax: +49 (040) 522 02-444, Email: [email protected]

Catalog excerpts

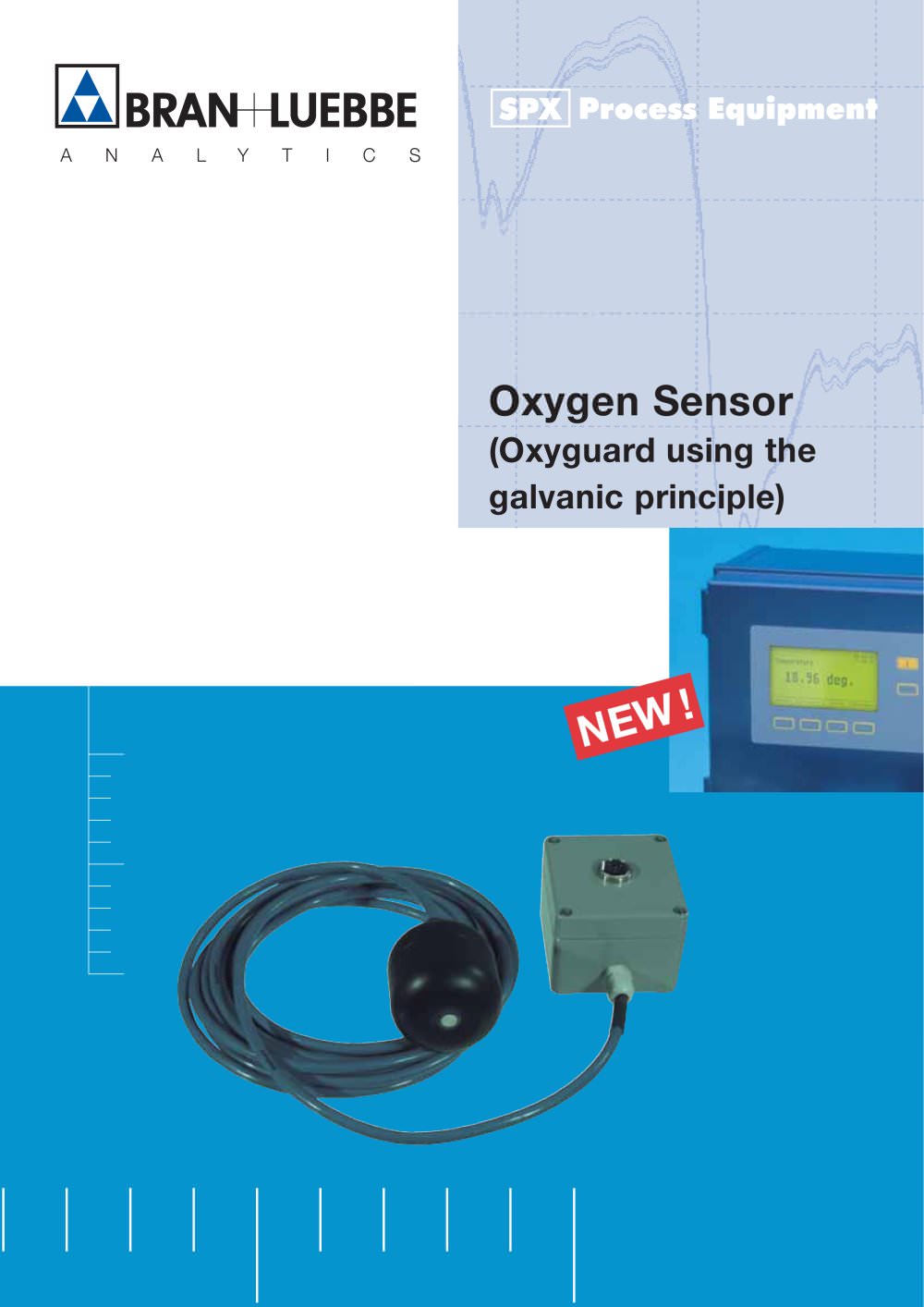

Oxygen Sensor (Oxyguard using the galvanic principle) NEW ! A N A L Y T I C S

Open the catalog to page 1

1.0 E 0804 - 2.3.7.1 Printed in Germany Subject to change without notice Oxygen Sensor (Submersible Sensor OxyGuard using the galvanic principle) The remarkable features of this oxygen sensor are its extremely long service life and the low maintenance costs due to its long-term adjustment and cleaning intervals. The adjustment can be done in air or in saturated water without any calibration tables. The replacement of the galvanic cell is simplified by the design of the sensor. The membrane is very durable and is almost unbreakable (100 ìm membrane thickness). Newly developed sensor electronics...
