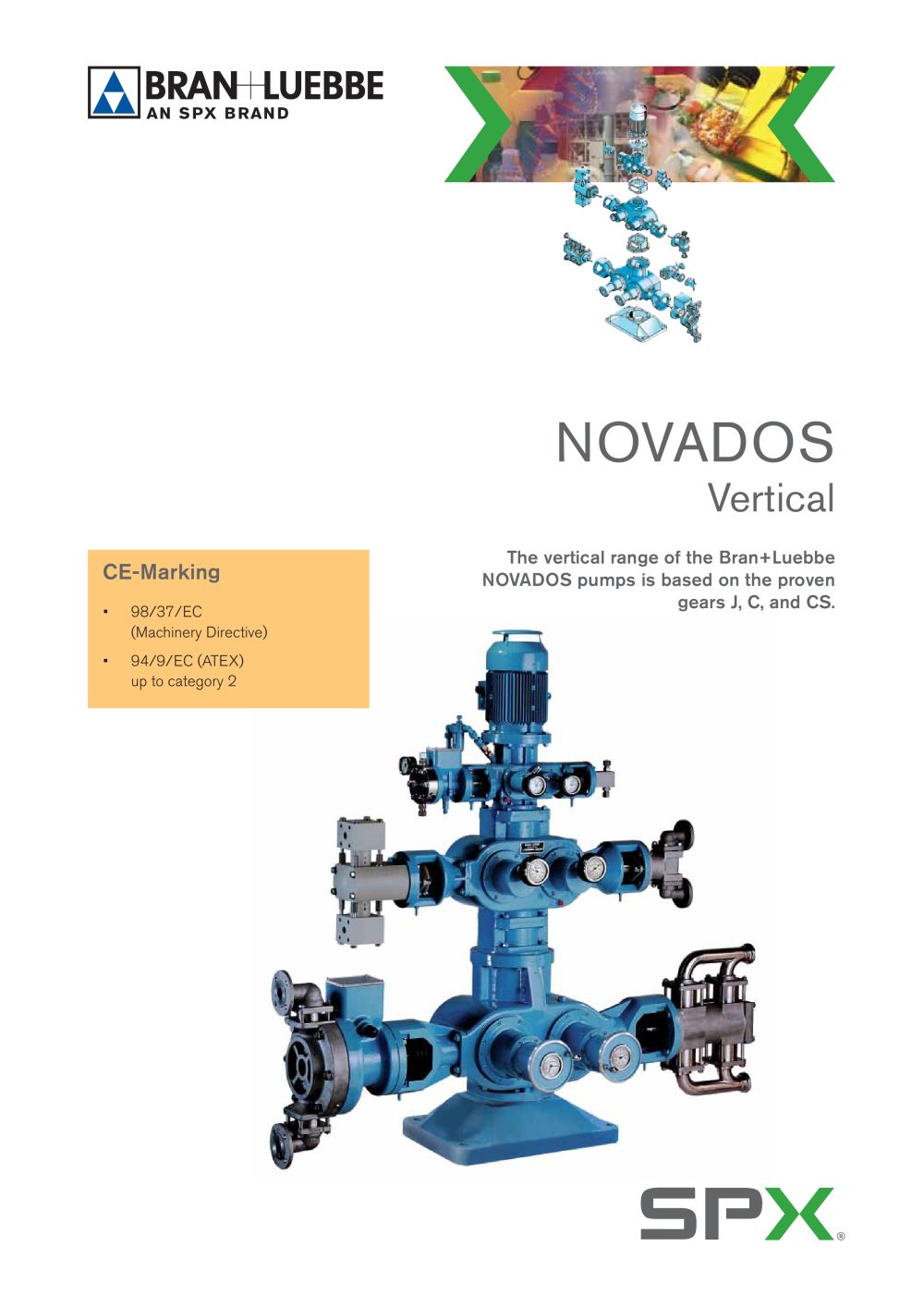

Overview
The Bran+Luebbe NOVADOS vertical pumps are built on the reliable gears J, C, and CS. These pumps are designed to meet the demands of various industries and comply with EU directives, including the Machinery Directive (98/37/EC) and ATEX (94/9/EC), making them suitable for use in potentially explosive atmospheres.

Specifications
The pumps are classified as non-mining products for group II, category 2G, 3G, and 3D, suitable for zone 1, 2, and 22 areas. They can be combined with NOVADOS gears J, C, CS, KA, and DA, offering versatility and a compact footprint for installations in limited spaces.

Applications
The pumps are applicable in various industries, including:

• Chemical Industry
• Oil & Gas Industry
• Petrochemical
• Food & Beverage
• Personal Care & Household Detergents

Features
The pumps feature robust gear housings for severe conditions, vertical gear and pumphead arrangements, and options for horizontal extension with KA and DA gears. They include stroke length adjustments, optimized gear housing for minimal corrosion, and a Z-shaped crankshaft design. An interface for the Bran+Luebbe diagnostic system is also available.

Pumpheads
Options include:

• Double diaphragm pumpheads with patented diaphragm position control system (PDPC)
• Plunger pumpheads with various fittings and materials
• Double-acting piston pumpheads with food connections

Advantages
The pump design is extremely reliable, offering reduced life cycle costs and compatibility with existing Bran+Luebbe gears and pumpheads. The small footprint allows for installation in constrained spaces, and the configuration can be adapted to meet changing requirements.

Contact Information
For more details, visit the Bran+Luebbe website or contact them via phone or email.

Note
SPX Corporation reserves the right to make design and material changes without notice. The information provided is for reference only and should be confirmed in writing.
