NOVADOS KK

Product catalog summary

Overview: The NOVADOS KK is a low energy metering pump available in single or double-head configurations. It features diaphragm pumpheads with a hydraulically actuated double diaphragm and a patented diaphragm position control system (PDPC). The pump offers flow rates up to 1590 l/h and pressures up to 700 bar, with low power consumption, e.g., 160 W at 15 l/h and 250 bar.

Materials of Construction: Liquid-wetted parts are constructed from materials such as stainless steel (1.4571, 1.4581, 1.4462), PVC, or PP. Diaphragms are made of PTFE or stainless steel (1.4310), and plungers are available in stainless steel or ceramic. Optional materials include Super Duplex, Hastelloy, Titanium, Halar® coating, or PVDF.

Pump Gear Design: The pump features a belt gear with various reduction ratios, an integral housing with modern seal technology, splash-lubricated gear components, a large oil sump, and no external oil pump. It is suitable for variable speed operation.

Flow Rate Control: Flow rates can be controlled manually, electrically, or pneumatically during operation and standstill. Stroke length adjustment is achieved through an eccentric (Z-shape) crankshaft.

Driver: The pump is driven by a low voltage DC electric motor.

Applicable Standards: The pump complies with API 675 2nd edition and CE-Marking directives 98/37/EC (Machinery Directive) and 94/9/EC (ATEX) up to category 2.

Flow Rate and Pressure Specifications: The pump offers various flow rates and pressures depending on the pumphead type and material. Maximum operating pressures may vary, especially for pumps with plastic housing, which are generally limited to 10 bar. Metering accuracy is as good as ±0.5% of the flow rate set.

Technical Specifications: The pump supports selectable stroking speeds (50 Hz): 50, 63, 72, 85, 100, 127, 144, 170, 200 min-1, with different speeds for a 60 Hz driver. The weight of the pump, without the motor, ranges from approximately 70 to 160 kg.

Additional Information: SPX Corporation reserves the right to make design and material changes without notice. For more information, visit www.spxpe.com.

Catalog excerpts

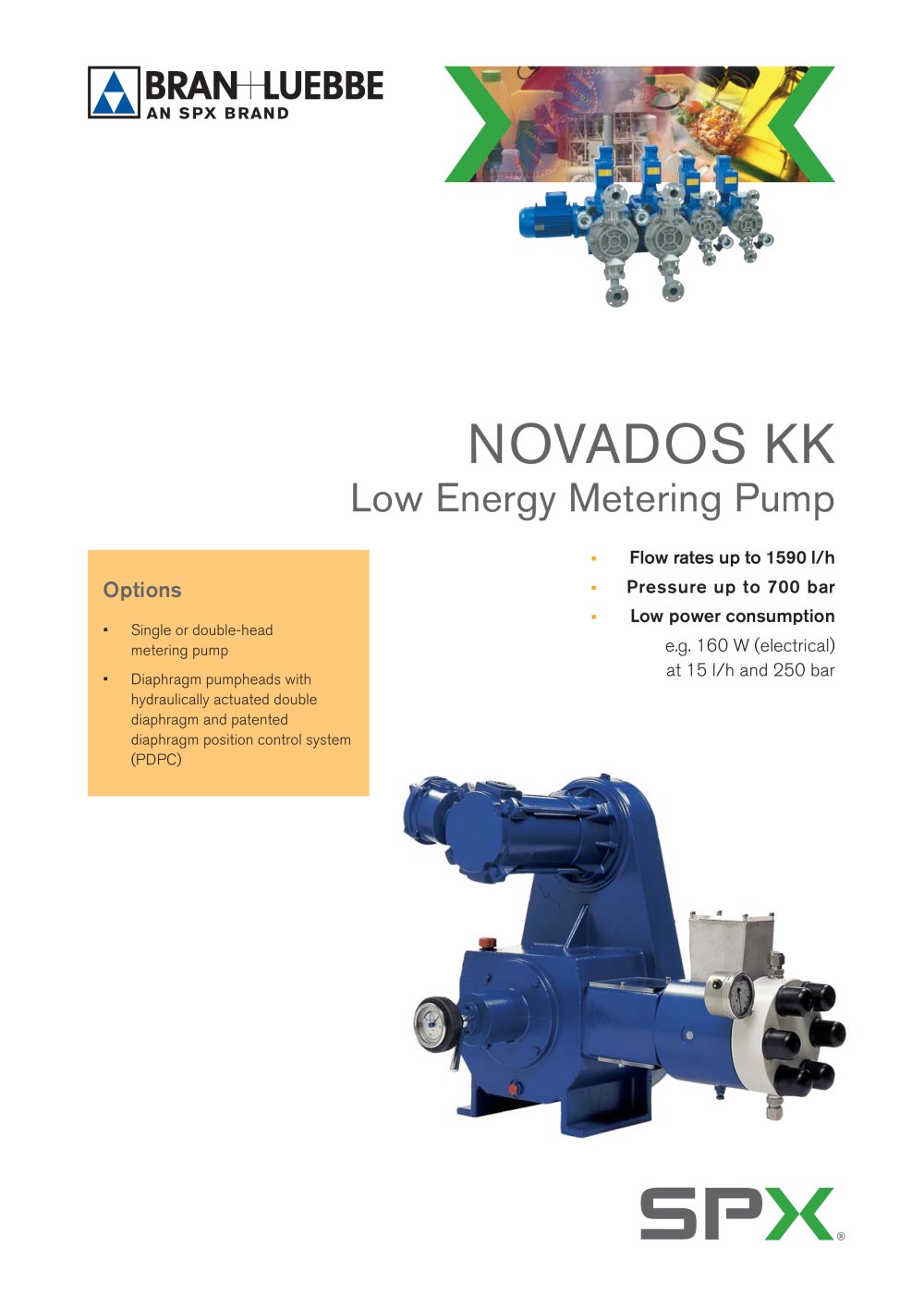

NOVADOS KK Low Energy Metering Pump Options • Single or double-head metering pump • Diaphragm pumpheads with hydraulically actuated double diaphragm and patented diaphragm position control system (PDPC) • Flow rates up to 1590 l/h • Pressure up to 700 bar • Low power consumption e.g. 160 W (electrical) at 15 l/h and 250 bar
