Novados CS

Product catalog summary

Overview: The NOVADOS CS metering pumps are versatile and robust, designed for high precision and reliability in various industrial applications. They offer multiple pumphead options and are compatible with different gear sizes in the Bran+Luebbe NOVADOS range.

Pumphead Options: The pumps feature diaphragm pumpheads with a hydraulically actuated double diaphragm and a patented diaphragm position control system (PDPC), plunger pumpheads, and double-acting piston pumpheads. These can be combined with all gear sizes of the NOVADOS range J, C, and CS.

Performance Specifications: The pumps can achieve flow rates per pumphead up to 22,365 l/h and withstand pressures up to 1000 bar. They are vertically extendable and suitable for variable speed operations.

Materials of Construction: Liquid-wetted parts are available in stainless steel, PVC, or PP for housings, PTFE or stainless steel for diaphragms, and stainless steel or ceramic for plungers. Additional material options include Super Duplex, Hastelloy, Titanium, Halar® coating, and PVDF.

Pump Gear Design: The pumps utilize a worm gear with five different reduction ratios and a large oil sump, making them suitable for variable speed applications.

Flow Rate Control: Flow rates are individually adjustable, either manually, electrically, or pneumatically, during operation and standstill.

Driver Options: The pumps can be driven by a 2- or 4-pole electric motor with fixed or variable speed.

Applicable Standards: The pumps comply with API 675 2nd edition and CE-Marking directives 98/37/EC (Machinery Directive) and 94/9/EC (ATEX) up to category 2.

Flow Rate and Pressure: The document provides detailed specifications for flow rates and pressures for different pumphead types and materials, with maximum operating pressures varying based on the housing material.

Additional Information: The pumps offer metering accuracy as good as ±0.5% of the flow rate set, with selectable stroking speeds. The weight of the equipment ranges from approximately 330 to 750 kg, excluding the motor.

Contact Information: For further details, Bran+Luebbe GmbH can be contacted via phone, fax, or email, with additional information available on their website.

Catalog excerpts

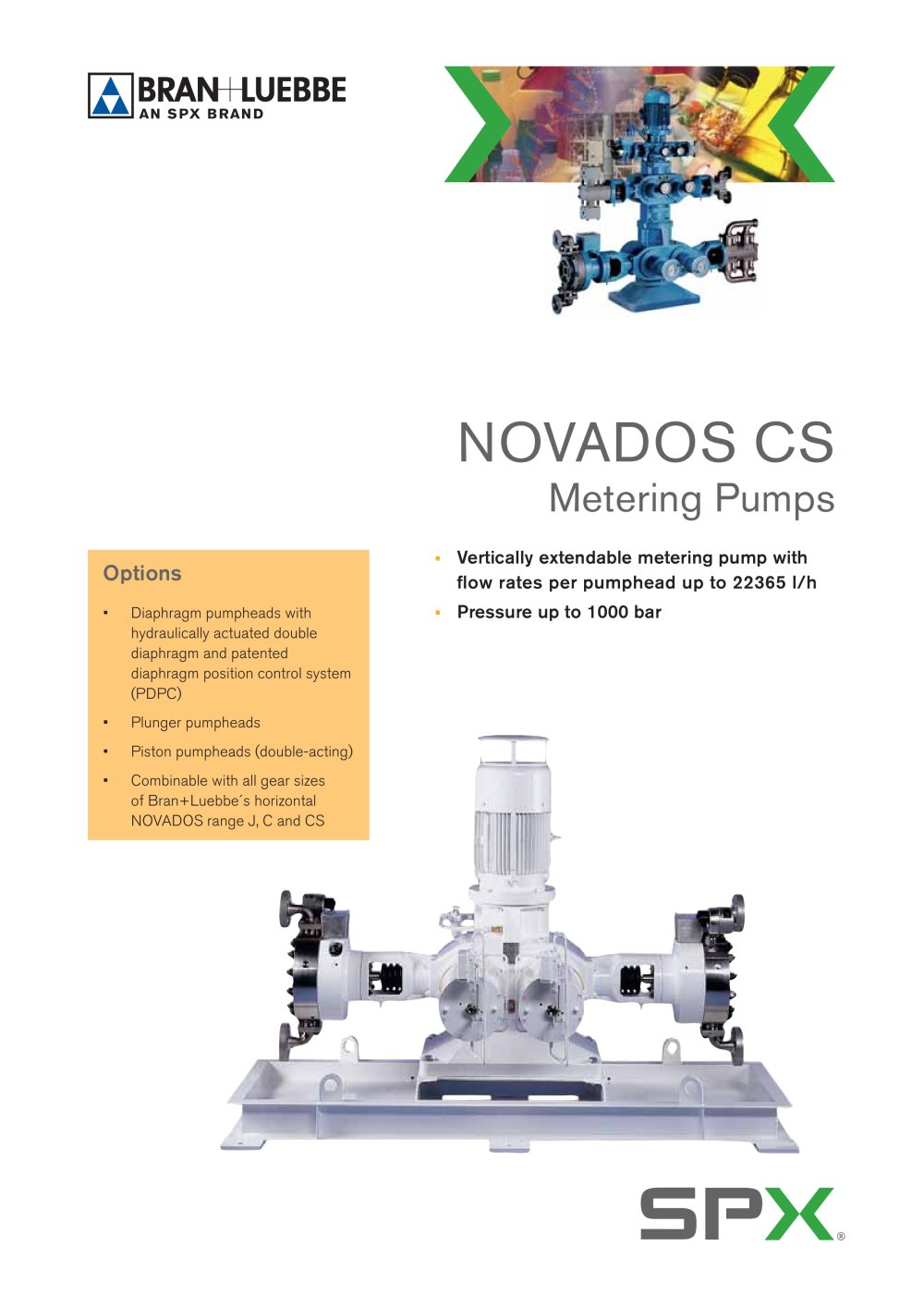

NOVADOS CS Metering Pumps Options • Diaphragm pumpheads with hydraulically actuated double diaphragm and patented diaphragm position control system (PDPC) • Plunger pumpheads • Piston pumpheads (double-acting) • Combinable with all gear sizes of Bran+Luebbe´s horizontal NOVADOS range J, C and CS • Vertically extendable metering pump with fl ow rates per pumphead up to 22365 l/h • Pressure up to 1000 bar

Open the catalog to page 1

Materials of construction of liquid-wetted parts • Housings of St. Steel 1.4571, 1.4581 or 1.4462, alternatively, PVC or PP • Diaphragms of PTFE or stainless steel 1.4310 • Plungers of stainless steel or ceramic • Options: materials such as Super Duplex, Hastelloy, Titanium, Halar® coating or PVDF, and other materials Pump gear design • Worm gear with a variety of fi ve different reduction ratios • Large oil sump • Suitable for variable speed Stroke length adjustment • Eccentric (Z-shape) crankshaft Flow rate control • Individually adjustable • Manually, electrically, or pneumatically during...

Open the catalog to page 2

Novados CS

Novados CS
