Novados C

Product catalog summary

Overview: The document provides technical specifications and options for NOVADOS C metering pumps, highlighting their design, materials, and operational capabilities.

Specifications:

Diaphragm pumpheads with hydraulically actuated double diaphragm and patented diaphragm position control system (PDPC).
Plunger and double-acting piston pumpheads available.
Compatible with all gear sizes of Bran+Luebbe's horizontal NOVADOS range J, C, and CS.
Flow rates per pumphead up to 17064 l/h and pressure up to 700 bar.

Materials:

Liquid-wetted parts made from stainless steel, PVC, or PP.
Diaphragms made from PTFE or stainless steel.
Plungers available in stainless steel or ceramic.
Optional materials include Super Duplex, Hastelloy, Titanium, Halar® coating, or PVDF.

Pump Gear Design:

Worm gear with five different reduction ratios.
Large oil sump suitable for variable speed.

Flow Rate Control:

Individually adjustable, manually, electrically, or pneumatically during operation and standstill.

Driver:

2- or 4-pole electric motor with fixed or variable speed.

Standards and Certifications:

Complies with API 675 2nd edition.
CE-Marking: 98/37/EC (Machinery Directive) and 94/9/EC (ATEX) up to category 2.

Flow Rate and Pressure:

Flow rates and pressures vary based on pumphead type and material.
Maximum operating pressure may deviate; plastic housings limited to 10 bar.
Metering accuracy is ±0.5% of flow rate set.

Additional Information:

Weight ranges from 330 to 750 kg without motor.
Technical changes may occur without notice.

Catalog excerpts

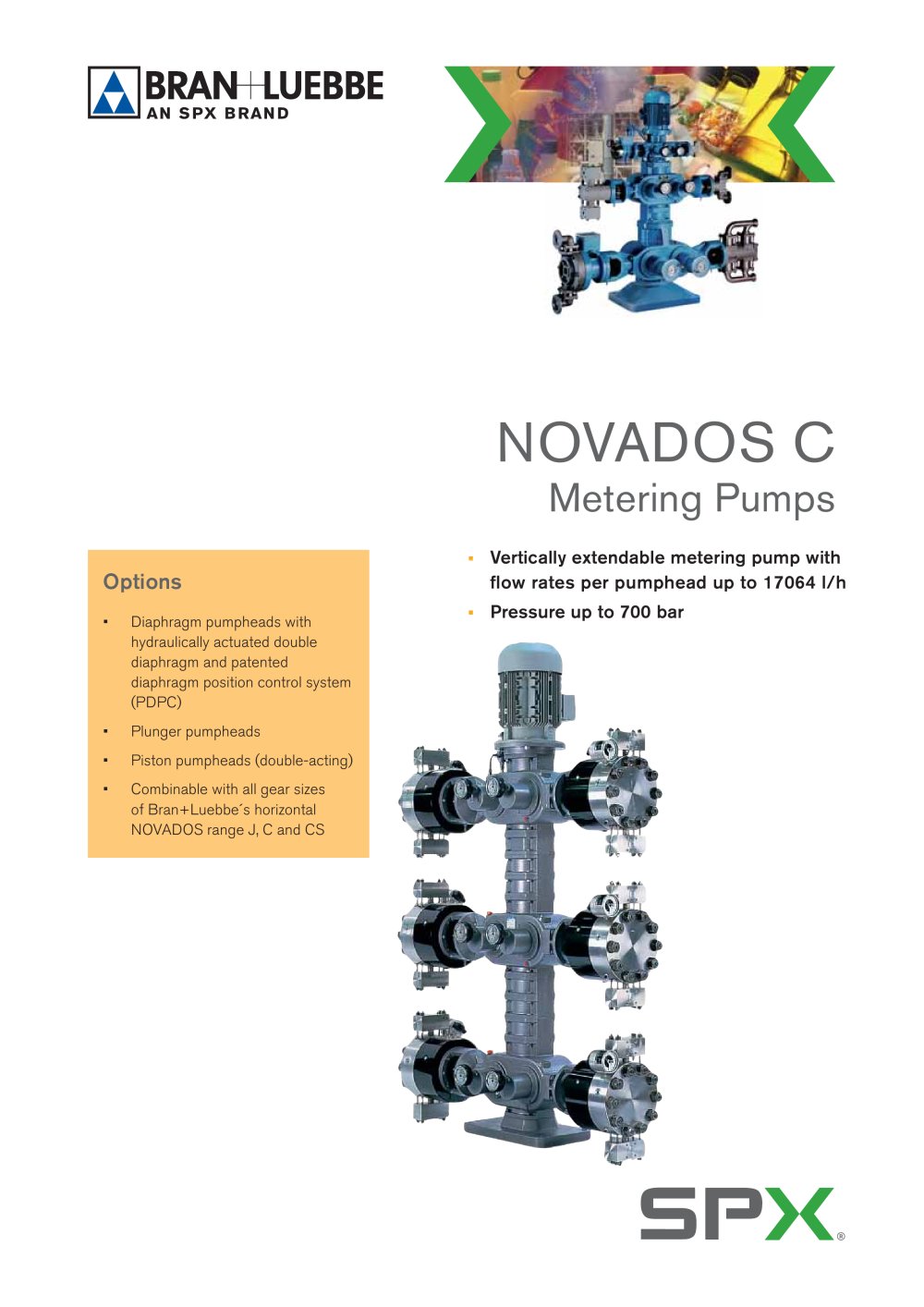

NOVADOS C Metering Pumps Options • Diaphragm pumpheads with hydraulically actuated double diaphragm and patented diaphragm position control system (PDPC) • Plunger pumpheads • Piston pumpheads (double-acting) • Combinable with all gear sizes of Bran+Luebbe´s horizontal NOVADOS range J, C and CS • Vertically extendable metering pump with fl ow rates per pumphead up to 17064 l/h • Pressure up to 700 bar

Open the catalog to page 1

Materials of construction of liquid-wetted parts • Housings of St. Steel 1.4571, 1.4581 or 1.4462, alternatively, PVC or PP • Diaphragms of PTFE or stainless steel 1.4310 • Plungers of stainless steel or ceramic • Options: materials such as Super Duplex, Hastelloy, Titanium, Halar® coating or PVDF, and other materials Pump gear design • Worm gear with a variety of fi ve different reduction ratios • Large oil sump • Suitable for variable speed Stroke length adjustment • Eccentric (Z-shape) crankshaft Flow rate control • Individually adjustable • Manually, electrically, or pneumatically during...

Open the catalog to page 2
