High Temperature magnetic chucks

High Temperature magnetic chucks
1 / 2 PagesView full catalog

High Temperature magnetic chucks

Product catalog summary
Overview: The document discusses a quick mould change system for high-temperature presses, specifically designed for temperatures up to 250°C. It highlights the system's power, reliability, performance, and longevity.
Specifications: The system is compatible with all types of machines and does not require standardization of mould back plates. It offers significant holding force and can integrate various heating systems such as rods, heating fluid, and cables. The system operates without human intervention.
Applications: The system is applicable for aluminium injection, composite manufacturing, rubber injection moulding, and rubber compression. It features magnetic platens of various sizes equipped with insulation plates or heating fluid systems, depending on the application.
Key Features:
  • Quick mould and dies change capability.
  • Flexibility and universality for any size of mould.
  • Service temperature up to 250°C.
  • Integration of various heating systems on request.
Examples:
  • Aluminium injection: Magnetic platens 1000 x 1000 mm with insulation plates.
  • Composite manufacturing: Magnetic platens 3000 x 2000 mm with integrated heating fluid.
  • Rubber injection: Magnetic platens 650 x 650 mm with ball mould lifters.
  • Rubber compression: Magnetic platens 400 x 400 mm and 900 x 900 mm.
See more

Catalog excerpts

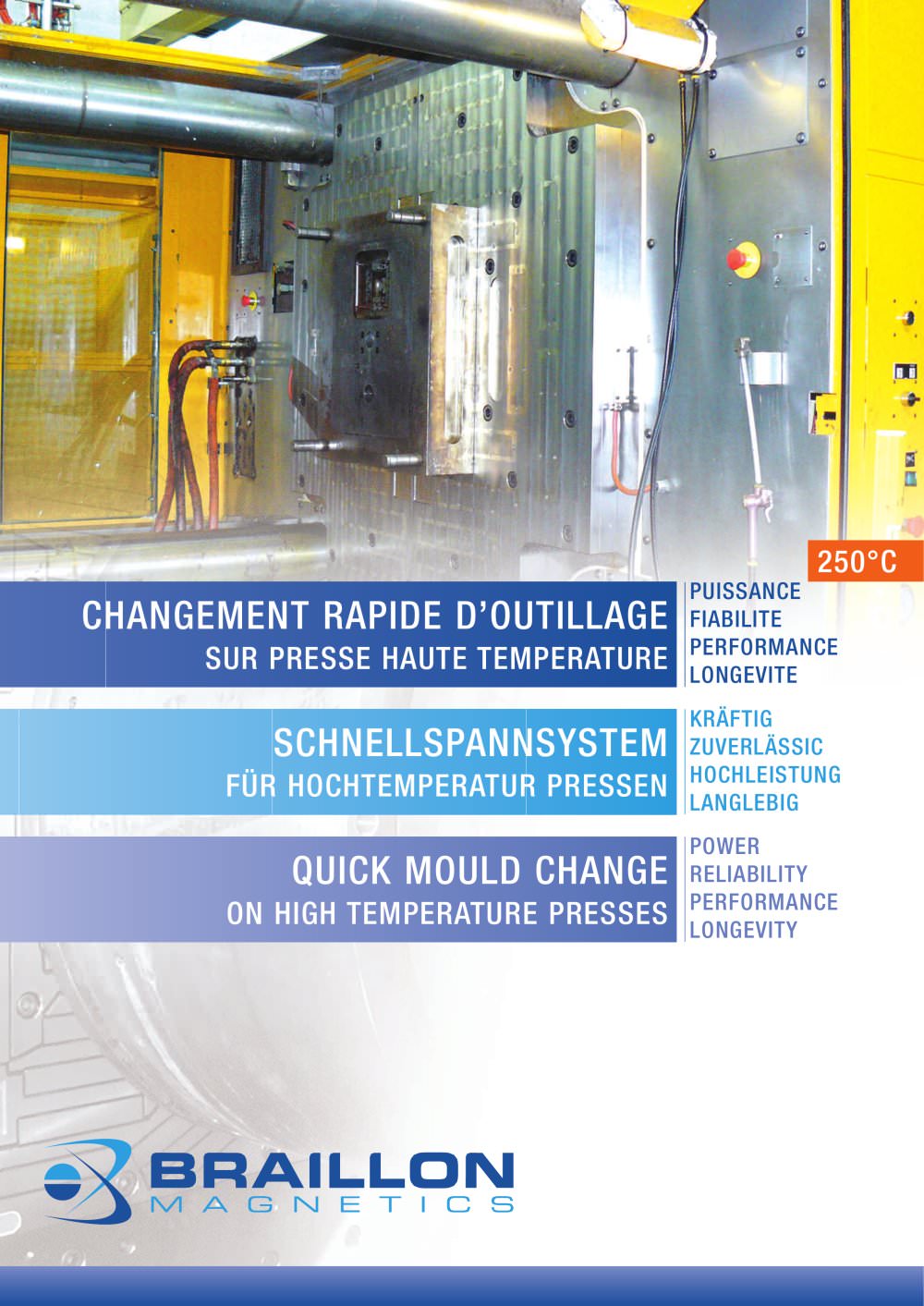

High Temperature magnetic chucks-1

250°C CHANGEMENT RAPIDE D’OUTILLAGE SUR PRESSE HAUTE TEMPERATURE SCHNELLSPANNSYSTEM FÜR HOCHTEMPERATUR PRESSEN QUICK MOULD CHANGE ON HIGH TEMPERATURE PRESSES PUISSANCE FIABILITE PERFORMANCE LONGEVITE KRÄFTIG ZUVERLÄSSIC HOCHLEISTUNG LANGLEBIG POWER RELIABILITY PERFORMANCE LONGEVITY

 Open the catalog to page 1
High Temperature magnetic chucks-2

DOMAINES D’APPLICATIONS COMPRESSION CAOUTCHOUC Exemple : Plateaux magnétiques 400 x 400 mm et 900 x 900 mm pour compression caoutchouc ANWENDUNGSBEREICHE GUMMI-PRESSEN Bild : Magnetspannplaten 400 x 400 mm und 900 x 900 mm für Gummi-Pressen FIELDS OF APPLICATIONS COMPRESSION RUBBER Example : Magnetic platens of 400 x 400 mm and 900 x 900 mm for rubber compression ALUMINIUM ALUMINIUM ALUMINIUM Exemple : Plateaux magnétiques 1000 x 1000 mm équipés de plaques isolantes pour injection aluminium Bild : Magnetspannplatten 1000 x 1000 mm mit Isolierungsplatten für Aluminiumspritzen Example : Magnetic...

 Open the catalog to page 2
